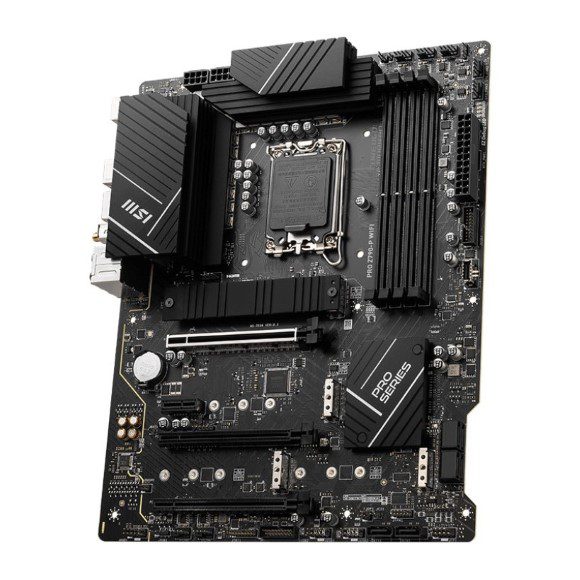

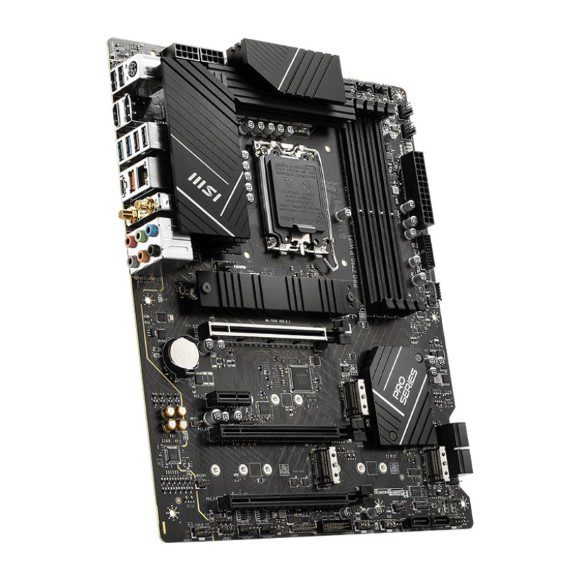

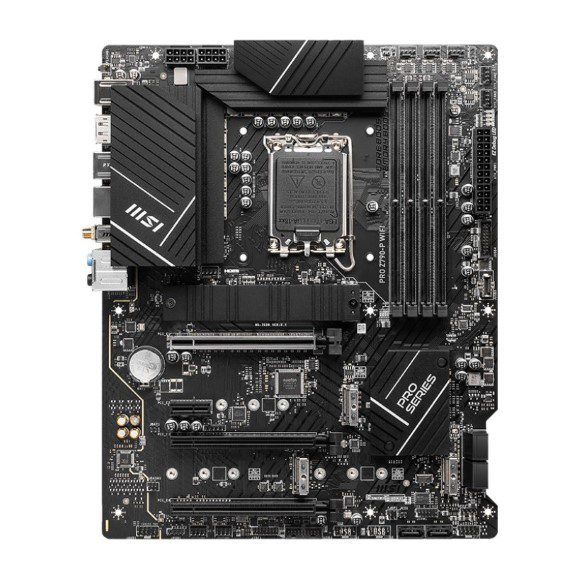

MSI PRO Z790-P DDR5 WIFI LGA 1700 Intel Motherboard

69,000.00

Warranty: 2 Years

Payment Methods:

zahcomputers payment methods

Highlights

  • BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
  • Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
  • Latest DDR5 Memory: A huge step of DDR5 performance enhancement with the latest DDR5 memory and MSI memory boost technology.
  • Lightning Gen 5: The latest PCIE 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed.
  • Wifi-6E: the latest wireless solution support 6GBz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
  • Lightning USB 20G: Built-in USB3.2 Gen 2X2 port.
  • Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit designs ensures even high-end processors to run in full speed.
  • M.2 Shield FROZR: Strengthened build- in M.2 thermal solution. Keeps M.2 SSDs safe.
  • 2.5G network solution: Featuring premium 2.5 LAN to delivery better network experience.
  • EZ Debug Led: Easiest way to troubleshoot.

  • mappk We Deliver All Over Pakistan

We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

  • Zahcomputers.pk1200 ZAH Express – (SAME-DAY DELIVERY)

Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

  • leopard Leopards Courier

We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

  • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
  • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
  • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

  • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
  • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
  • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
  • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
  • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

  • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
  • The item(s) does not match the original specifications or is different from what you ordered.

To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

Returns:

If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

Refund Policy:

In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

MSI Pro Z790-P DDR5 WIFI LGA 1700 Intel Motherboard Price in Pakistan Specs

Model
Brand MSI
Model PRO Z790-P WIFI
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
Chipsets
Chipset  Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Supports 1R 5600 MHz (by JEDEC & POR)

Max. overclocking frequency:
– 1DPC 1R Max speed up to 7000+ MHz
– 1DPC 2R Max speed up to 6400+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Maximum Memory Supported 192GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 5.0 x16 PCI_E1 slot (From CPU)
– Supports up to PCIe 5.0 x16
PCI Express 4.0 x16 PCI_E3 slot (From Z790 chipset)
– PCI_E3 supports up to PCIe 4.0 x4
PCI Express 3.0 x16 PCI_E4 slot (From Z790 chipset)
– PCI_E4 supports up to PCIe 3.0 x1
PCI Express x1 1x PCIe x1 slot (From Z790 chipset)
– PCI_E2 supports up to PCIe 3.0 x1
Storage Devices
SATA 6Gb/s  6x SATA 6Gb/s ports (From Z790 chipset)
M.2 1 x Key M (CPU PCIe) + 1 x Key M (PCH PCIe) + 2 x Key M (PCIe/SATA) + 1 x Key E (WiFi/BT)

4x M.2 slots (Key M)
M2_1 slot (From CPU)
– Supports up to PCIe 4.0 x4
– Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z790 chipset)
– Supports up to PCIe 4.0 x4
– Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (From Z790 chipset)
– Supports up to PCIe 4.0 x4
– Supports SATA 6Gb/s
– Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z790 chipset)
– Supports up to PCIe 4.0 x4
– Supports SATA 6Gb/s
– Supports 2242/ 2260/ 2280 storage devices

SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset  Realtek ALC897
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset 1x Intel 2.5Gbps LAN controller
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi 6E
– The Wireless module is pre-installed in the M.2 (Key-E) slot
– Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz)up to 2.4Gbps
– Supports 802.11 a/ b/ g/ n/ ac/ ax

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

Bluetooth – Supports Bluetooth 5.2*, FIPS, FISMA
* Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

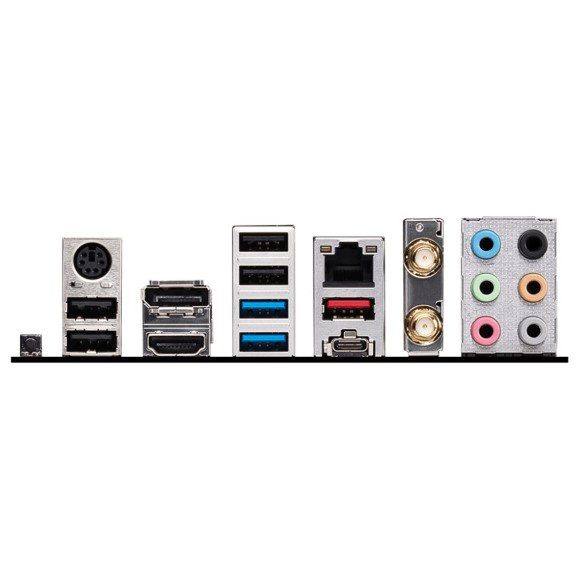

Rear Panel Ports
Back I/O Ports 1x Flash BIOS button
1x PS/2 port
4x USB 2.0 Type-A ports (From Z790 chipset)
1x DisplayPort
1x HDMI port
1x LAN (RJ45) jack
2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset)
1x USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset)
1x USB 3.2 Gen 2×2 20Gbps Type-C port (From Z790 chipset)
2x Wi-Fi Antenna connectors
6x Audio jacks
Internal I/O Connectors
Onboard USB 1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
2x USB 3.2 Gen 1 5Gbps connector (From Z790 chipset)
– Supports additional 4 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
– Supports additional 4 USB 2.0 ports
Other Connectors Fan Connectors
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors

System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

Jumpers
1x Clear CMOS jumper

LED Features
4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin ARGB Gen2 LED connectors

Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 304.80 mm x 243.84 mm
Power Pin 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
Windows Compatibility
Windows 11 Supported
Features
Features MSI Center
– LAN Manager
– Mystic Light
– Frozr AI Cooling
– User Scenario
– True Color
– Live Update
– Super Charger
– Speed Up

Cooling
– M.2 Shield Frozr
– Pump Fan
– Smart Fan Control

LED
– Mystic Light Extension (ARGB GEN2/ RGB)
– Mystic Light SYNC
– EZ DEBUG LED
– EZ LED Control

Performance
– DDR5 Boost
– Core Boost
– Lightning USB 20G
– USB 3.2 Gen 2 10G
– USB with Type A+C
– Front USB Type-C

Protection
– PCI-E Steel Armor

Experience
– MSI Center
– Frozr AI Cooling
– Click BIOS 5
– Flash BIOS button
