Home » Shop » MSI B760M Gaming Plus DDR5 WIFI LGA 1700 ATX Motherboard
MSI PRO Z790-P DDR5 WIFI LGA 1700 Intel Motherboard Whatsapp For Price 03215530993
Back to products
MSI PRO Z790-A WIFI DDR5 LGA 1700 Motherboard ₨83,000.00
Click to enlarge

    Highlights

    • BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
    • Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
    • Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
    • Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
    • Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
    • M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
    • 2.5G Network Solution:Featuring premium 2.5G LAN to deliver better network experience.
    • Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

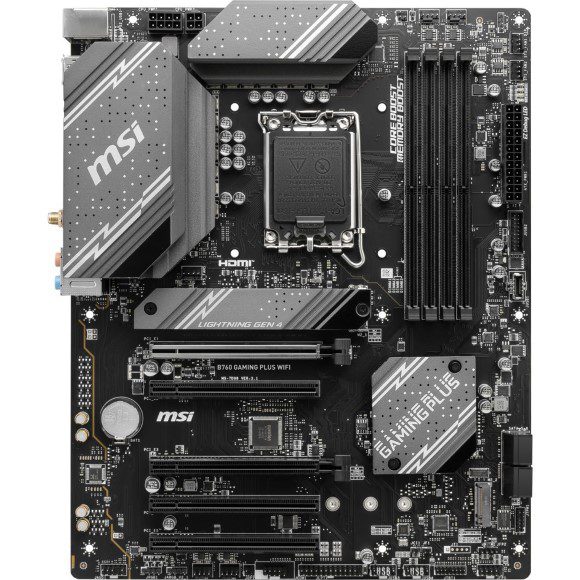

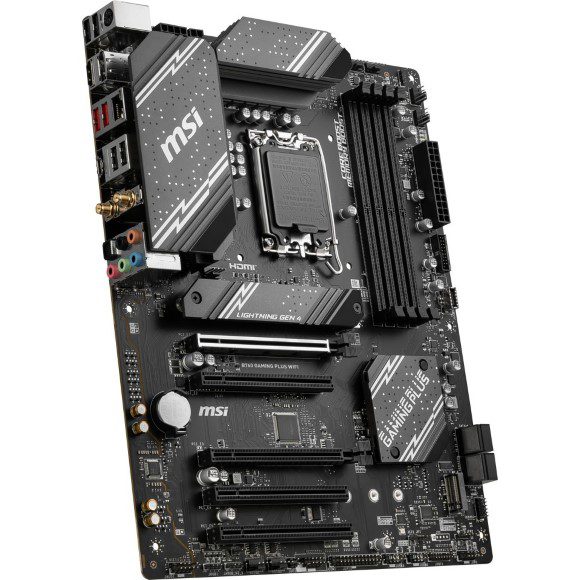

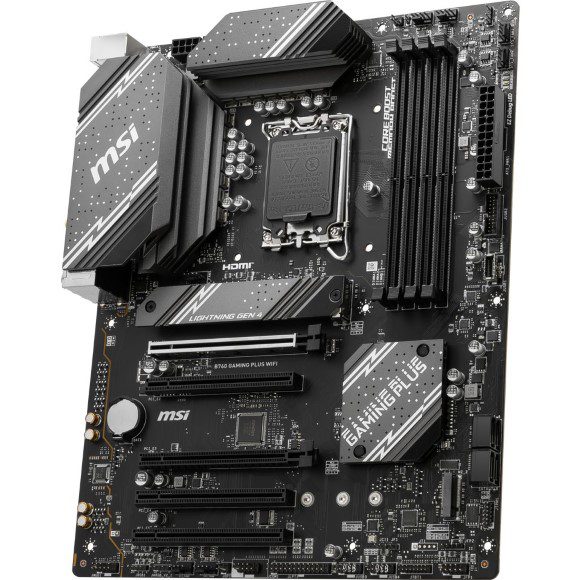

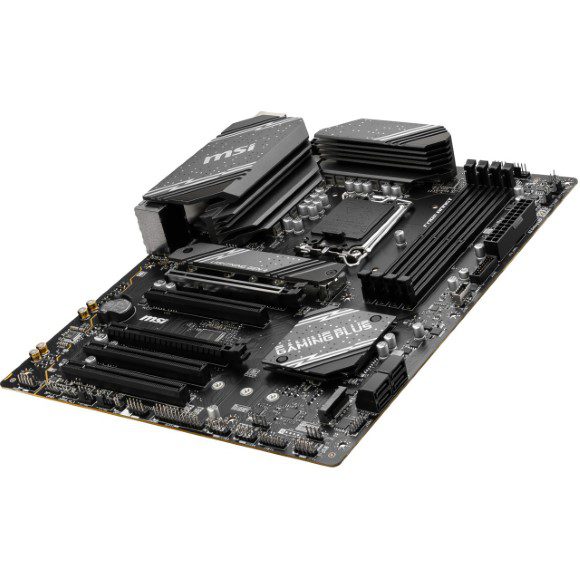

    MSI B760M Gaming Plus DDR5 WIFI LGA 1700 ATX Motherboard

    Whatsapp For Price 03215530993

    Highlights

    • BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
    • Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
    • Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
    • Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
    • Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
    • M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
    • 2.5G Network Solution:Featuring premium 2.5G LAN to deliver better network experience.
    • Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

    Payment Methods:

    • We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • ZAH Express - (SAME-DAY DELIVERY)

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities - Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities - Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • Warranty Details
    More details
    • Returns & Exchange
    More details

    • We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • ZAH Express – (SAME-DAY DELIVERY)

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
    • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
    • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
    • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
    • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

    You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

    • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
    • The item(s) does not match the original specifications or is different from what you ordered.

    To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

    For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

    Returns:

    If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

    Refund Policy:

    In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

    SPECIFICATION

    MSI B760M Gaming Plus DDR5 WIFI LGA 1700 ATX Motherboard Price in Pakistan Specs

    Model
    BrandMSI
    ModelB760 GAMING PLUS WIFI
    Supported CPU
    CPU Socket Type LGA 1700
    CPU TypeSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
    Chipsets
    Chipset Intel B760
    Memory
    Number of Memory Slots4x288pin (DDR5)
    Memory Standard4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory

    Maximum Memory Supported192GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x162 x PCI Express 4.0 x16
    PCI Express x13x PCIe 3.0 x1 slot
    Storage Devices
    SATA 6Gb/s 4 x SATA 6Gb/s
    M.22x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Onboard Audio
    Audio Channels 8-Channel (7.1) HD Audio with Audio Boost
    Onboard LAN
    Max LAN SpeedRealtek®
    RTL8125BG 2.5G LAN
    Wireless LANntel®
    Wi-Fi 6E
    Bluetooth, Bluetooth 5.3
    Rear Panel Ports

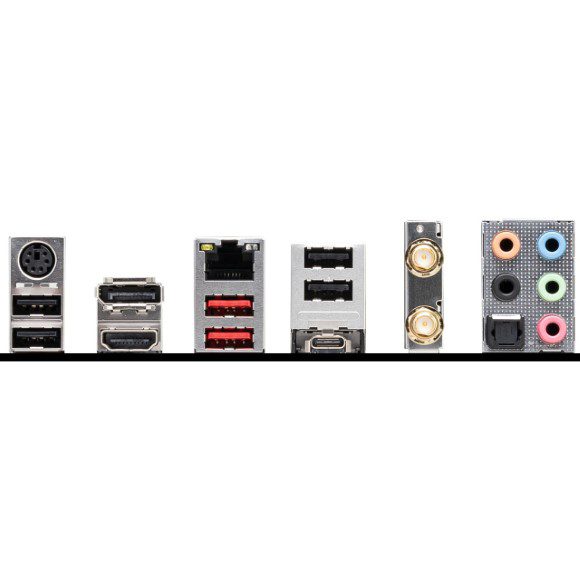

    Back I/O PortsKeyboard/Mouse, Displayport 1.4, 2.5G LAN, USB2.0, Wi-fi/Bluetooth, HD Audio Connectors, USB2.0, HDMI 2.1 Port, USB 3.2 Gen 2 10Gbps (type-A), USB 3.2 Gen 2 10Gbps(Type C), Optical S/PDIF-Out.
    Internal I/O Connectors
    Other Connectors1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    5x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Printer Port (JLPT)
    1x Com Port (JCOM)
    1x TBT connector (JTBT, supports RTD3)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen1 Type C ports
    Physical Spec
    Form FactorATX
    Dimensions (W x L)243.84mmx304.8mm
    Windows Compatibility
    Windows 11Support for Windows® 11 64-bit, Windows® 10 64-bit
    Features
    FeaturesSupports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
    Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
    Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
    Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
    Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
    2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    High Quality PCB: 6-layer PCB made by 2oz thickened copper
    Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
