ASRock Arc A580 Challenger Review

Posted by

The ASRock Arc A580 Challenger represents the company’s custom-designed graphics card, marking the introduction of Intel’s latest and most compelling entry into the desktop GPU market. Priced disruptively, the new A580 Alchemist facilitates 1080p gaming at high enthusiast settings, while also supporting the complete DirectX 12 Ultimate feature set, which includes real-time ray tracing and XeSS performance enhancements. Given these attributes, along with its foundation on the modern 6 nm manufacturing process, the A580 qualifies as a current-generation GPU, aimed at attracting individuals who are new to the PC gaming arena, and it benefits from the reputable Intel brand.

Intel’s decision to introduce the A580 at this time, nearly a year following the launch of its Arc 7-series, can be attributed to two primary factors. Firstly, the prices of graphics cards have begun to stabilize, resulting in 1080p-class graphics cards being available at approximately. This situation allows Intel to competitively price the A580, effectively undercutting rivals such as the GeForce RTX 3050 and Radeon RX 6600. Secondly, Intel has made significant advancements over the past year in enhancing the software infrastructure of its Arc GPUs, which has enabled the company to elevate each product to a higher performance tier. These improvements include numerous game-specific optimizations and enhancements for APIs like DirectX 11 and DirectX 9, which remain pertinent for many popular e-sports games.

The Arc A580 is constructed upon the Xe-HPG Alchemist graphics architecture, representing Intel’s comprehensive initiative to develop a modern discrete GPU that rivals the latest offerings from GeForce RTX and Radeon RX in terms of features. This GPU is equipped with a real-time ray tracing engine that surpasses the technical capabilities of AMD’s equivalent, incorporating hardware acceleration for additional ray tracing stages, full asynchrony with ray tracing, and shader re-ordering. Additionally, the GPU includes XMX, a specialized matrix math accelerator, which positions these GPUs as formidable AI processing units. Intel capitalizes on this capability to enhance XeSS performance, achieving a level of technology comparable to DLSS 2.

Intel has developed the Arc A580 using the same 6 nm ACM-G10 silicon that drives the Arc 7 series. This new SKU features 24 of the 32 Xe Cores that are physically available on the silicon, distributed across 6 of the 8 Render Slices. This configuration results in a total of 384 execution units, equating to 3,072 unified shaders, 384 XMX cores, 24 Ray Tracing Engines, 192 Texture Mapping Units (TMUs), and 96 Render Output Units (ROPs).

A notable feature of the A580 is its identical memory sub-system to that of the A750. It is equipped with 8 GB of GDDR6 memory, utilizing a broad 256-bit memory bus. This configuration, combined with a memory speed of 16 Gbps, results in an impressive memory bandwidth of 512 GB/s, the highest within its market segment. Additionally, the A580 boasts a complete PCI-Express 4.0 x16 host interface, in contrast to its competitors, which typically offer limited Gen 4 x8 interfaces. This design ensures optimal performance on older PCIe Gen 3 platforms, such as the 10th Gen Core “Comet Lake” or Ryzen 2000, both of which support Resizable BAR, a feature essential for Arc GPUs to achieve their specified performance levels.

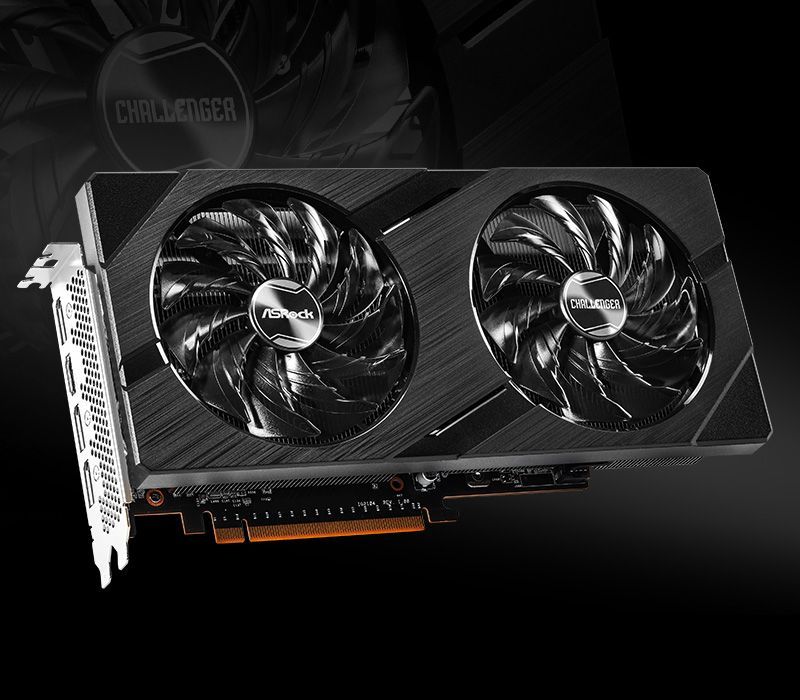

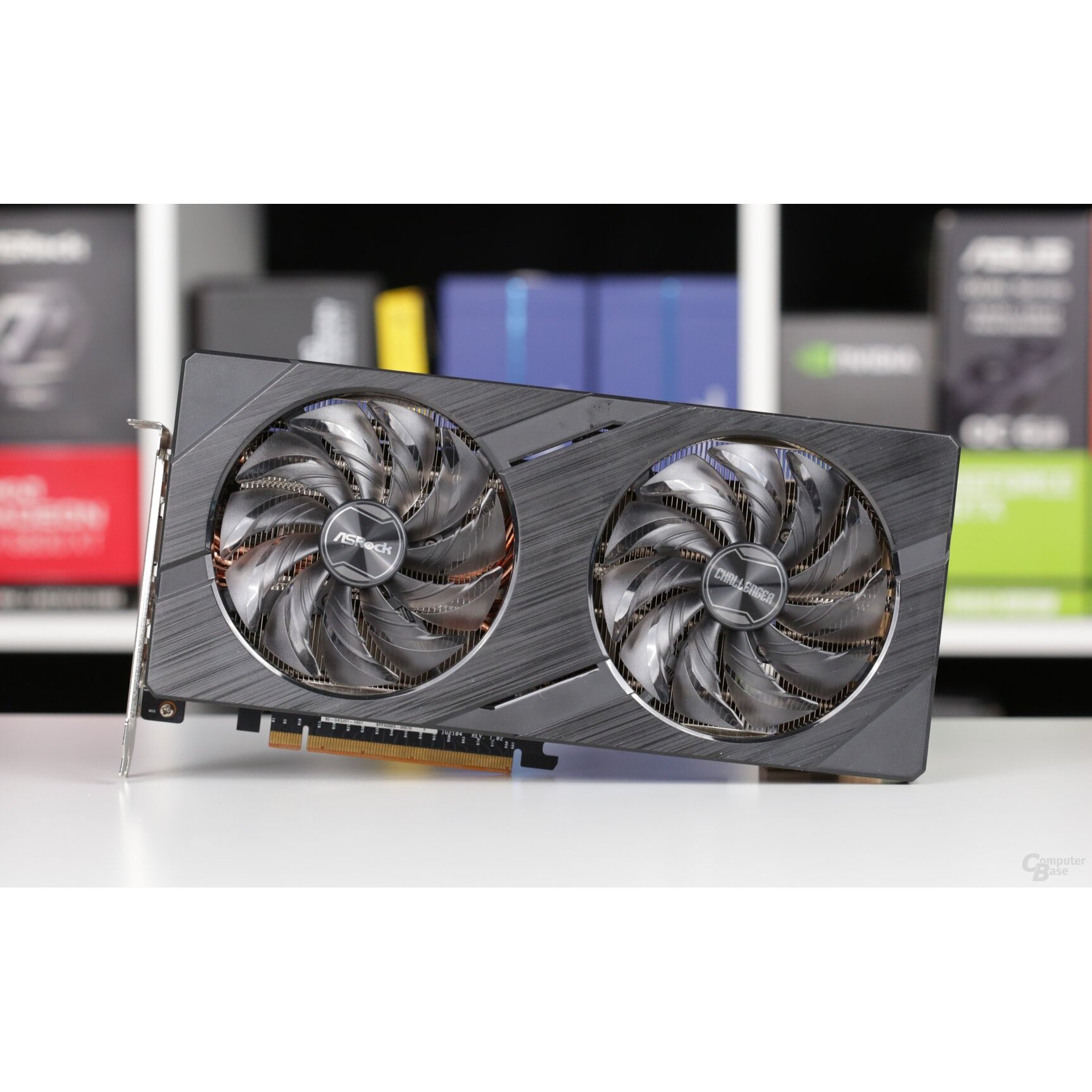

The Challenger series of graphics cards from ASRock has been recognized for its range of AMD Radeon offerings. These cards exemplify the company’s commitment to custom designs, featuring compact form factors, a cooling system designed for minimal noise, and ease of maintenance. Typically, their pricing aligns closely with the baseline for GPUs, which in this instance is set. The ASRock Arc A580 Challenger caters to users seeking a straightforward A580 solution that can be installed and left to operate without further concern.

Cores ROPs Core
Clock		 Boost
Clock		 Memory
Clock		 GPU Transistors Memory
RX 5500 XT 1408 32 1717 MHz 1845 MHz 1750 MHz Navi 14 6400M
4 GB, GDDR6, 128-bit
RX 5600 XT 2304 64 1375 MHz 1560 MHz 1500 MHz Navi 10 10300M
6 GB, GDDR6, 192-bit
RX 6500 XT 1024 32 2685 MHz 2825 MHz 2248 MHz Navi 24 5400M
4 GB, GDDR6, 64-bit
RTX 2060 1920 48 1365 MHz 1680 MHz 1750 MHz TU106 10800M
6 GB, GDDR6, 192-bit
Arc 580 3072 96 1700 MHz N/A 2000 MHz ACM-G10 21700M
8 GB, GDDR6, 256-bit
ASRock Arc 580
Challenger		 3072 96 1700 MHz N/A 2000 MHz ACM-G10 21700M
8 GB, GDDR6, 256-bit
RX 5700 XT 2560 64 1605 MHz 1755 MHz 1750 MHz Navi 10 10300M
8 GB, GDDR6, 256-bit
RTX 3050 2560 32 1552 MHz 1777 MHz 1750 MHz GA106 12000M
8 GB, GDDR6, 128-bit
RTX 2070 2304 64 1410 MHz 1620 MHz 1750 MHz TU106 10800M
8 GB, GDDR6, 256-bit
Arc A750 3584 112 2050 MHz N/A 2000 MHz ACM-G10 21700M
8 GB, GDDR6, 256-bit
RX 6600 1792 64 2044 MHz 2491 MHz 1750 MHz Navi 23 11060M
8 GB, GDDR6, 128-bit
RX 6600 XT 2048 64 2359 MHz 2589 MHz 2000 MHz Navi 23 11060M
8 GB, GDDR6, 128-bit
RTX 3060 3584 48 1320 MHz 1777 MHz 1875 MHz GA106 12000M
12 GB, GDDR6, 192-bit
RX 7600 2048 64 2250 MHz 2625 MHz 2250 MHz Navi 33 13300M
8 GB, GDDR6, 128-bit
RTX 4060 3072 48 1830 MHz 2460 MHz 2125 MHz AD107 18900M
8 GB, GDDR6, 128-bit
Arc A770 4096 128 2100 MHz N/A 2187 MHz ACM-G10 21700M
16 GB, GDDR6, 256-bit
RTX 2080 2944 64 1515 MHz 1710 MHz 1750 MHz TU104 13600M
8 GB, GDDR6, 256-bit
RTX 3060 Ti 4864 80 1410 MHz 1665 MHz 1750 MHz GA104 17400M
8 GB, GDDR6, 256-bit
RTX 4060 Ti 4352 48 2310 MHz 2535 MHz 2250 MHz AD106 22900M
8 GB, GDDR6, 128-bit
RX 6700 XT 2560 64 2424 MHz 2581 MHz 2000 MHz Navi 22 17200M
12 GB, GDDR6, 192-bit
RTX 2080 Ti 4352 88 1350 MHz 1545 MHz 1750 MHz TU102 18600M
11 GB, GDDR6, 352-bit
RTX 3070 5888 96 1500 MHz 1725 MHz 1750 MHz GA104 17400M
8 GB, GDDR6, 256-bit
RTX 3070 Ti 6144 96 1575 MHz 1770 MHz 1188 MHz GA104 17400M
8 GB, GDDR6X, 256-bit
