Review of the NVIDIA GeForce RTX 4070 Founders Edition

Posted by

Today marks the launch of the GeForce RTX 4070 Ada by NVIDIA, and we present our review. The RTX 4070 (non Ti) stands out as the most economical option within the RTX 40-series, rendering it a crucial addition to the lineup. Priced at an entry point of, it promises to deliver optimal performance for 1440p gaming and the capability for 4K gaming at relatively high settings, potentially revitalizing the gaming market. Additionally, the inclusion of DLSS 3 serves as a powerful enhancement, enabling significantly improved framerates.

The GeForce RTX 4070 discussed in this review shares numerous similarities with the recently released RTX 4070 Ti, as both are constructed on a scaled-down variant of the same silicon architecture and feature an identical 12 GB of GDDR6X memory. However, the RTX 4070 operates within a significantly lower wattage category. Notably, several custom-designed RTX 4070 models, including some that are factory-overclocked, require only a single 8-pin PCIe power connector, resulting in a total power configuration of 225 W when accounting for the PCIe slot. Additionally, NVIDIA permits its board partners to utilize the newer ATX 12VHPWR power connector, which is capable of delivering substantially higher power levels.

The RTX 4070 is built upon the GeForce “Ada Lovelace” graphics architecture, which introduces the third generation of RTX technology developed by NVIDIA. This innovative technology enhances realism in gaming by integrating real-time ray tracing with traditional raster 3D graphics. The implementation of ray tracing demands significant computational power; therefore, NVIDIA has incorporated specialized hardware within the GPU to manage these tasks efficiently. The Ada architecture features the third generation of RT cores, which significantly improve ray tracing intersection performance, alongside fourth generation Tensor cores that enhance AI deep-learning neural networks by leveraging advanced capabilities. Additionally, the architecture includes Ada CUDA cores, increased GPU clock speeds, and a completely reengineered memory subsystem with expanded on-die caches. All these components are manufactured using the new TSMC 4N process, which combines 5 nm technology with 4 nm-class characteristics.

The GeForce RTX 4070 examined in this review utilizes the same AD104 silicon as the RTX 4070 Ti. However, while the RTX 4070 Ti fully utilizes the available hardware, the RTX 4070 is significantly reduced in capabilities. Specifically, the RTX 4070 is equipped with only 46 out of the 60 streaming multiprocessors (SM) that are physically available, resulting in a shader count that matches its predecessor, totaling 5,888 CUDA cores. Additionally, it includes 184 Tensor cores, 46 RT cores, 184 texture mapping units (TMUs), and 64 raster operation pipelines (ROPs) out of a possible 80. Fortunately, the memory configuration remains unchanged, providing 12 GB of 21 Gbps GDDR6X memory across a 192-bit memory bus, which delivers a bandwidth of 504 GB/s, surpassing the 448 GB/s offered by the RTX 3070.

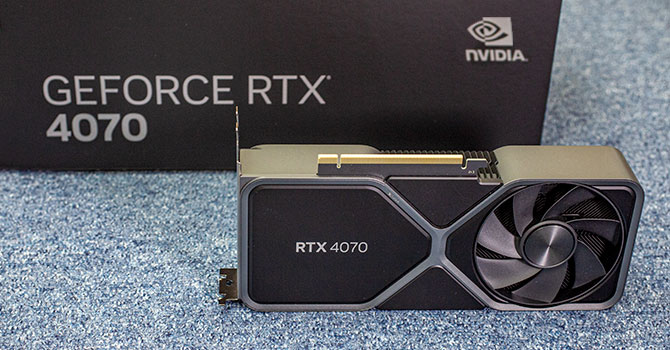

Although NVIDIA did not introduce a Founders Edition for the GeForce RTX 4070 Ti, they have developed one for the RTX 4070. The Founders Edition has evolved beyond a simple reference design to become a more premium offering, while still being available at the manufacturer’s suggested retail price.

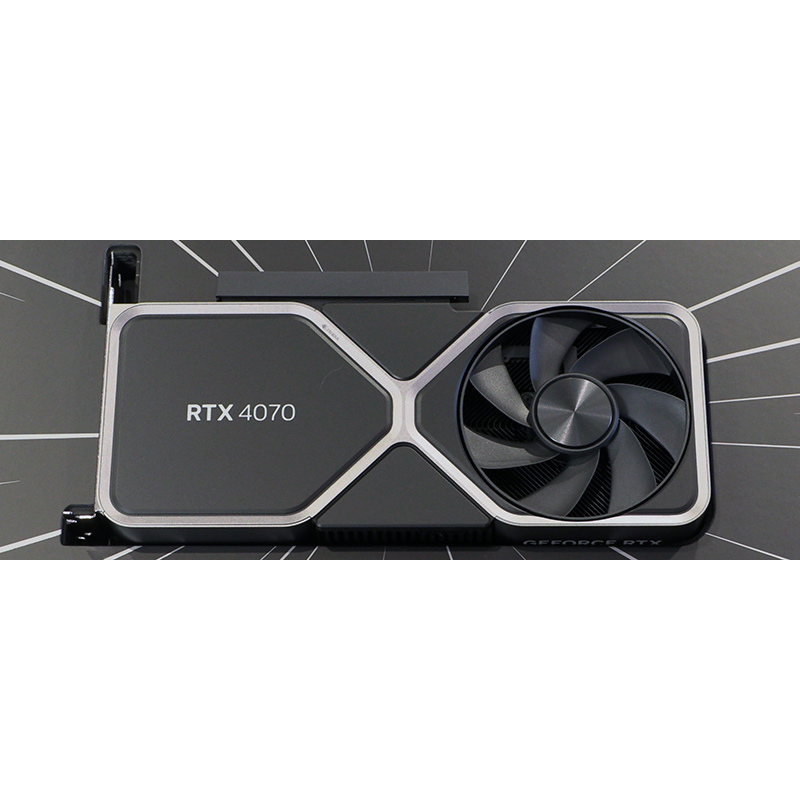

The design of the RTX 4070 Founders Edition follows the Dual Axial Flow-through concept, similar to that of the RTX 3080 FE and the most recent RTX 4090 FE, albeit in a more compact configuration. Although NVIDIA permits its board partners to utilize traditional 8-pin power connectors, the Founders Edition is equipped with the 16-pin 12VHPWR connector, while maintaining the same clock speeds and power limits as the other graphics cards being evaluated today.



Cores ROPs Core
Clock		 Boost
Clock		 Memory
Clock		 GPU Transistors Memory
Arc A770 4096 128 2100 MHz N/A 2187 MHz ACM-G10 21700M
16 GB, GDDR6, 256-bit
RTX 2080 2944 64 1515 MHz 1710 MHz 1750 MHz TU104 13600M
8 GB, GDDR6, 256-bit
RTX 3060 Ti 4864 80 1410 MHz 1665 MHz 1750 MHz GA104 17400M
8 GB, GDDR6, 256-bit
RX 6700 XT 2560 64 2424 MHz 2581 MHz 2000 MHz Navi 22 17200M
12 GB, GDDR6, 192-bit
RTX 2080 Ti 4352 88 1350 MHz 1545 MHz 1750 MHz TU102 18600M
11 GB, GDDR6, 352-bit
RTX 3070 5888 96 1500 MHz 1725 MHz 1750 MHz GA104 17400M
8 GB, GDDR6, 256-bit
RTX 3070 Ti 6144 96 1575 MHz 1770 MHz 1188 MHz GA104 17400M
8 GB, GDDR6X, 256-bit
RX 6800 3840 96 1815 MHz 2105 MHz 2000 MHz Navi 21 26800M
16 GB, GDDR6, 256-bit
RX 6800 XT 4608 128 2015 MHz 2250 MHz 2000 MHz Navi 21 26800M
16 GB, GDDR6, 256-bit
RTX 3080 8704 96 1440 MHz 1710 MHz 1188 MHz GA102 28000M
10 GB, GDDR6X, 320-bit
RTX 4070 5888 64 1920 MHz 2475 MHz 1313 MHz AD104 35800M
12 GB, GDDR6X, 192-bit
RTX 3080 Ti 10240 112 1365 MHz 1665 MHz 1188 MHz GA102 28000M
12 GB, GDDR6X, 384-bit
RX 6900 XT 5120 128 2015 MHz 2250 MHz 2000 MHz Navi 21 26800M
16 GB, GDDR6, 256-bit
RX 6950 XT 5120 128 2100 MHz 2310 MHz 2250 MHz Navi 21 26800M
16 GB, GDDR6, 256-bit
RTX 3090 10496 112 1395 MHz 1695 MHz 1219 MHz GA102 28000M
24 GB, GDDR6X, 384-bit
RTX 4070 Ti 7680 80 2310 MHz 2610 MHz 1313 MHz AD104 35800M
12 GB, GDDR6X, 192-bit
RX 7900 XT 5376 192 2000 MHz 2400 MHz 2500 MHz Navi 31 57700M
20 GB, GDDR6, 320-bit
RTX 3090 Ti 10752 112 1560 MHz 1950 MHz 1313 MHz GA102 28000M
24 GB, GDDR6X, 384-bit
RTX 4080 9728 112 2205 MHz 2505 MHz 1400 MHz AD103 45900M
16 GB, GDDR6X, 256-bit
RX 7900 XTX 6144 192 2300 MHz 2500 MHz 2500 MHz Navi 31 57700M
24 GB, GDDR6, 384-bit
RTX 4090 16384 176 2235 MHz 2520 MHz 1313 MHz AD102 76300M
24 GB, GDDR6X, 384-bit
