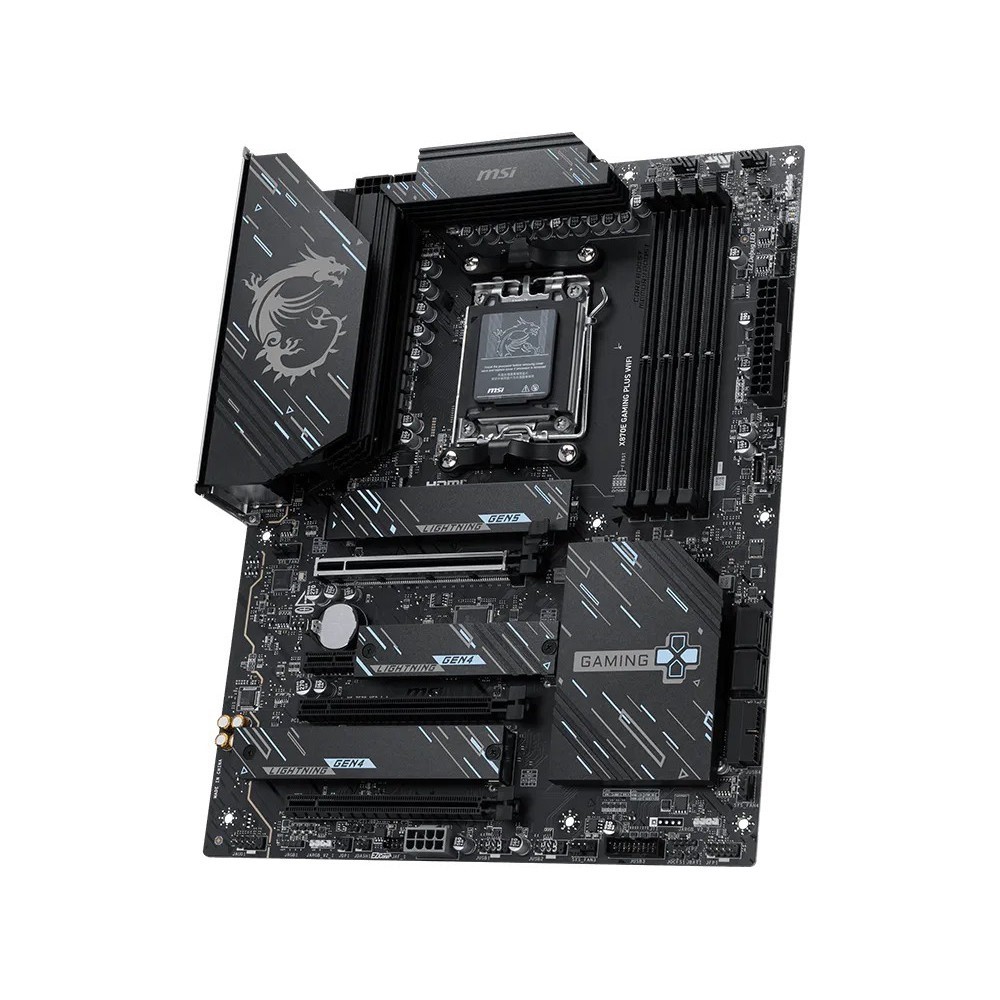

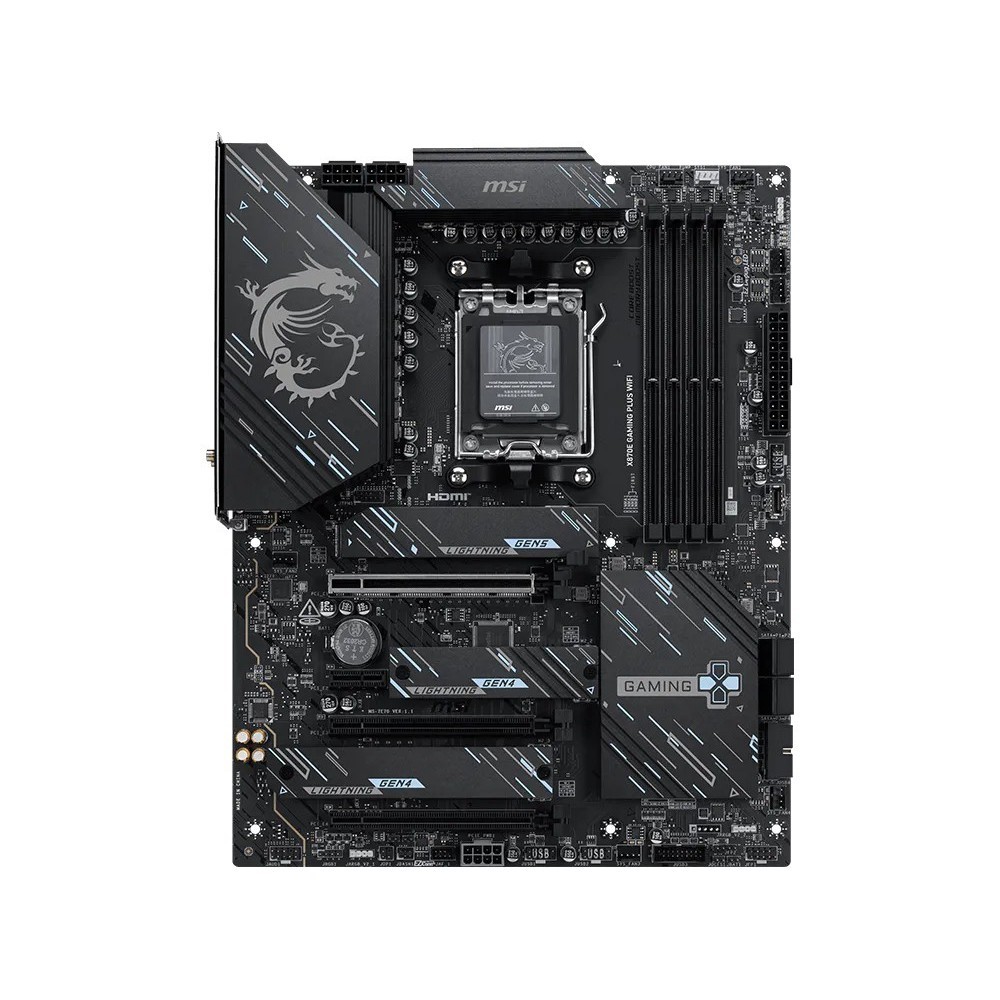

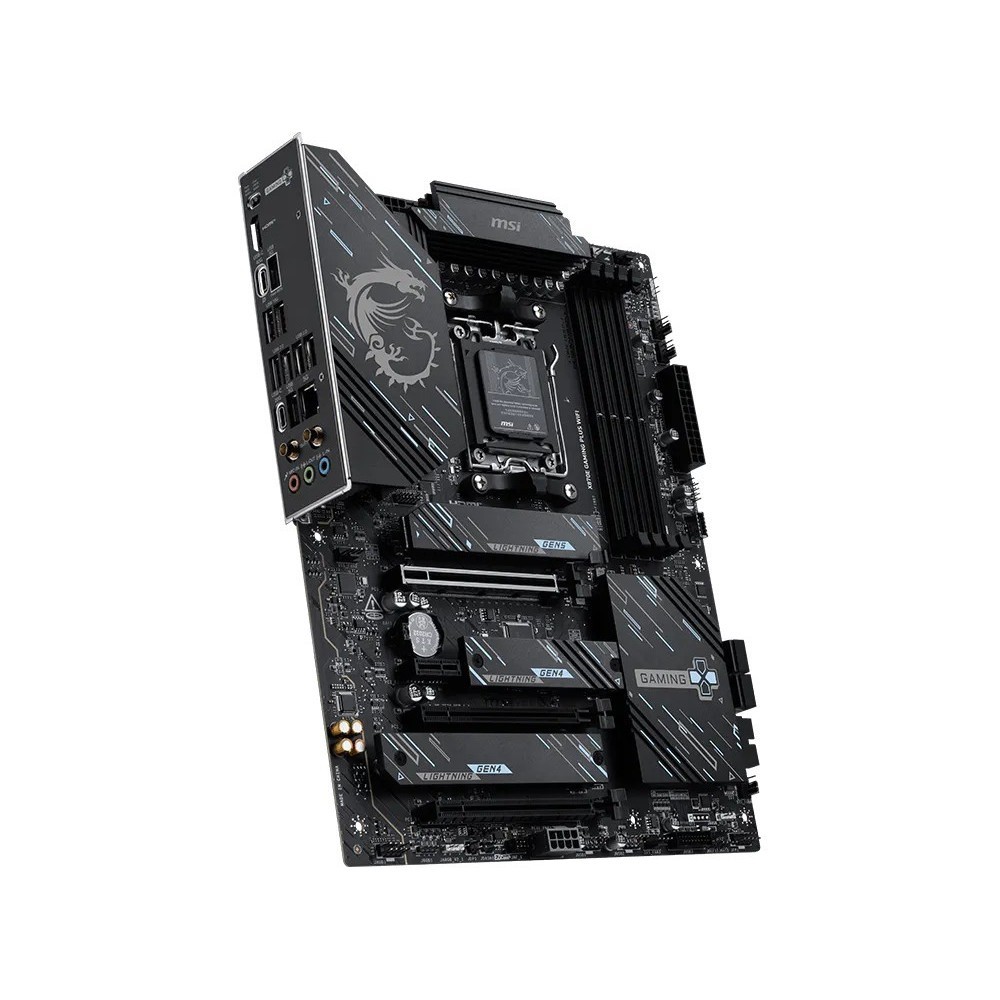

MSI X870E GAMING PLUS WIFI AM5 AMD X870E SATA 6GB/S 5G LAN DDR5 M.2 Wi-Fi 7 ATX Motherboard

Original price was: ₨104,999.00.Current price is: ₨98,999.00.

SKU X870E GAMING PLUS WIFI Category

Highlights

  • Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience
Warranty1 Year

  • mappk We Deliver All Over Pakistan

We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

  • leopard Leopards Courier

We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

  • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
  • Non-COD Parcel Delivery to Other Cities – Over Nigth: 2 to 4 days
  • Non-COD Parcel Delivery to Other Cities – Detain: 3 to 4 days

Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

  • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
  • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
  • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
  • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
  • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

  • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
  • The item(s) does not match the original specifications or is different from what you ordered.

To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

Returns:

If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

Refund Policy:

If an order is canceled for any reason, the refund will be processed within 3 to 4 days. In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. If the payment was made through a merchant, the refund will be processed through the same merchant channel.

Please note that if the payment was made via credit or debit card, any applicable refund may take 7 to 10 additional working days to reflect in your account, as per Pakistan’s payment security standards.

To initiate a refund, please contact our support team at [email protected]
or WhatsApp: 0325 7033554 within the specified time frame.

MSI X870E GAMING PLUS WIFI AM5 AMD X870E SATA 6GB/S 5G LAN DDR5 M.2 Wi-Fi 7 ATX Motherboard Price in Pakistan

Chipset

AMD X870E
SocketAM5
CPU SupportRyzenâ„¢ 9000 / 8000 / 7000 Series
Operating SystemWindows® 11 (64-bit)
Memory

Feature

Details
Memory Slots4 × DDR5 UDIMM
Max Capacity256 GB
Memory Speed (OC)DDR5 8200 – 5600 MT/s
Memory Speed (JEDEC)DDR5 5600 – 4800 MT/s
Channel ArchitectureDual Channel
ECCNon-ECC, Un-buffered
OverclockingAMD EXPOâ„¢, Memory OC
Special SupportCUDIMM (Clock Driver bypass)
Ryzenâ„¢ 9000 Memory Limits

Configuration

Max Speed
1DPC 1R8200+ MT/s
1DPC 2R6400+ MT/s
2DPC 1R6400+ MT/s
2DPC 2R6000+ MT/s
Graphics Output

Port

Specification
HDMIHDMI 2.1 – 4K @ 60Hz
USB-C DisplayPortDP 1.4 (via USB4) – 4K @ 120Hz
iGPU RequirementCPU with integrated graphics
Expansion Slots

Slot

Details
PCI_E1PCIe 5.0 x16 (CPU)
PCI_E2PCIe 3.0 x1 (Chipset)
PCI_E3PCIe 4.0 x4 (Chipset)
PCI_E4PCIe 3.0 x1 (Chipset)
PCI_E1 CPU-Dependent Speeds

CPU Series

PCIe Speed
Ryzenâ„¢ 9000 / 7000PCIe 5.0 x16
Ryzenâ„¢ 8700 / 8600 / 8400PCIe 4.0 x8
Ryzenâ„¢ 8500 / 8300PCIe 4.0 x4
Storage

Type

Details
M.2 Slots3 × M.2
M.2_1PCIe 5.0 x4 (CPU)
M.2_2PCIe 4.0 x4 (Chipset)
M.2_3PCIe 4.0 x4 (Chipset)
Supported Sizes22110 / 2280 / 2260
SATA Ports4 × SATA 6Gb/s
RAID Support

Storage Type

RAID Levels
SATARAID 0 / 1 / 10
NVMe (M.2)RAID 0 / 1 / 5
RAID 5Ryzenâ„¢ 9000 only
USB Connectivity

USB Type

Count
USB 2.0 (Rear)4
USB 2.0 (Front)6
USB 5Gbps Type-A (Rear)2
USB 5Gbps Type-A (Front)4
USB 10Gbps Type-A (Rear)2
USB 10Gbps Type-C (Front)1
USB 20Gbps Type-C (Rear)1
USB 40Gbps Type-C (Rear)1
Networking

Feature

Details
Wired LANRealtek® 8126VB 5G
WirelessWi-Fi 7
Wi-Fi Bands2.4 / 5 / 6 GHz
Max SpeedUp to 5.8 Gbps
BluetoothBluetooth® 5.4
Audio

Feature

Details
CodecRealtek® ALC897
Channels7.1 HD Audio
Internal I/O Connectors

Category

Count
ATX Power1
CPU Power2
PCIe Power (8-pin)1
CPU Fan1
Pump / Combo Fan1
System Fans6
RGB (ARGB Gen2)3
RGB (12V)1
TPM Header1 (TPM 2.0)
USB 2.0 Headers6 ports
USB 5Gbps Headers4 ports
USB-C 10Gbps1
Front Panel2
Front Audio1
LED & Debug

Feature

Count
EZ Debug LED4
EZ Memory LED1

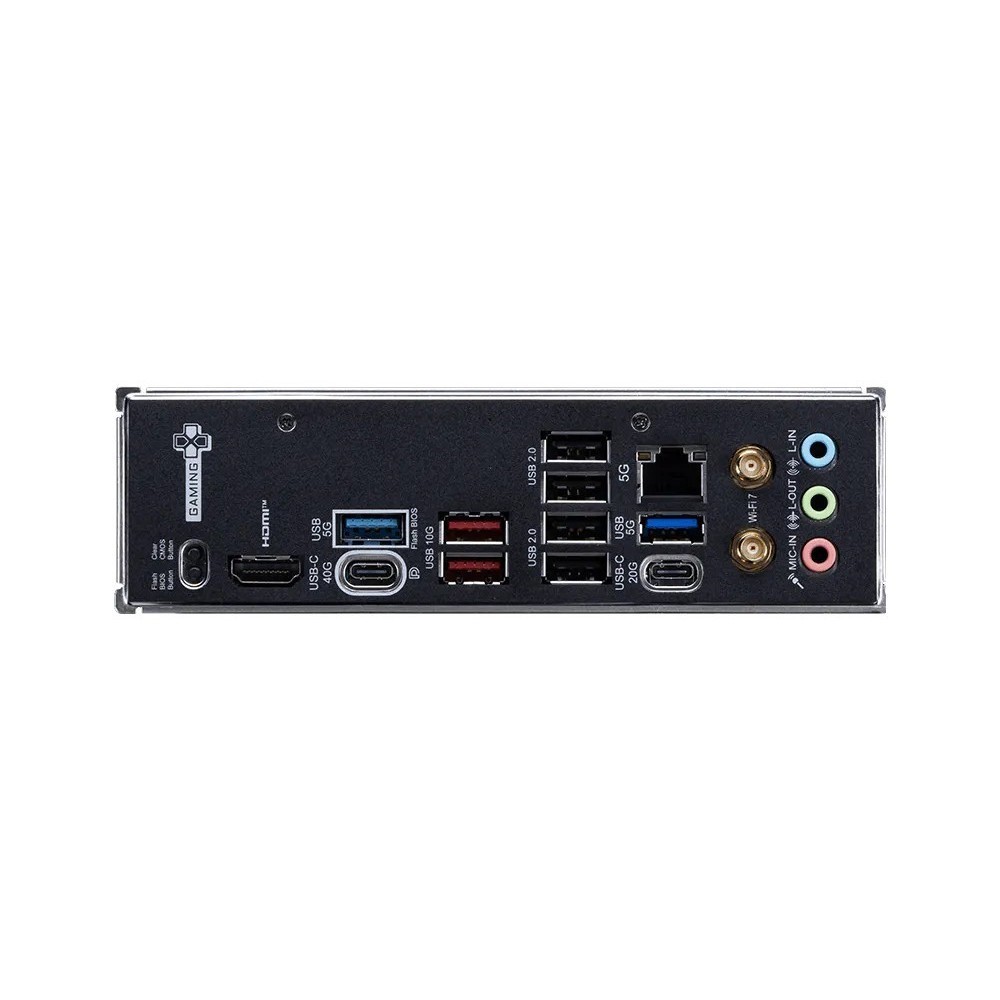

Back Panel I/O

Port

Included
Clear CMOS Button✔
Flash BIOS Button✔
HDMI✔
USB 40Gbps Type-C✔
USB 20Gbps Type-C✔
USB 10Gbps Type-A✔
USB 5Gbps Type-A✔
USB 2.0✔
5G LAN✔
Wi-Fi / Bluetooth✔
Audio Jacks✔
