MSI
MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard
In stock
Rs 86,000
Key Highlights
- ATX Form Factor
- Intel Z790 Chipset
- LGA 1700 Socket
- 4 x Dual-Channel DDR5
- 6 x SATA III, 4 x M.2
- PCIe 5.0 x16, PCIe 4.0 x16 (x4)
- PCIe 3.0 x16 (x1), PCIe 3.0 x1
- 2.5 GbE LAN, Wi-Fi 7, & Bluetooth 5.4
- USB 2.0, 3.2 Gen 1, Gen 2, Gen 2x2 Ports
- Windows 10 & 11 Support
- Brand
- MSI
- Category
- Motherboard / Chipset
- SKU
- PRO Z790-A MAX WIFI
- Warranty
- 2 Years Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
MSI PRO Z790-A MAX WIFI ATX Motherboard Price in Pakistan Specs
| Best Seller Ranking | #16 in Intel Motherboards |
|---|
| Brand | MSI |
|---|---|
| Model | PRO Z790-A MAX WIFI |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: - 1DPC 1R Max speed up to 7800+ MHz - 1DPC 2R Max speed up to 6600+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MHz |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
|---|---|
| PCI Express 4.0 x16 | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI Express 3.0 x16 | PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI Express x1 | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 2.5Gbps LAN |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| Bluetooth | Yes |

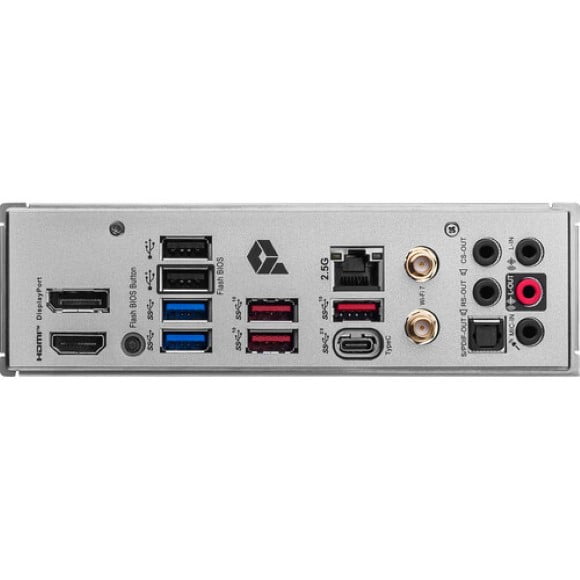

| Back I/O Ports | 1 x DisplayPort 2 x USB 2.0 1 x 2.5G LAN 2 x Wi-Fi / Bluetooth Antenna Bracket 5 x Audio Connectors 1 x HDMI 1 x Flash BIOS Button 2 x USB 3.2 Gen 1 5Gbps (Type-A) 3 x USB 3.2 Gen 2 10Gbps (Type-A) 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 1 x S/PDIF-OUT |
|---|
| Onboard USB | 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
|---|---|
| Other Connectors | 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) |
| Windows 11 | Supported |
|---|
| Product Name | MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard |
| Brand | MSI |
| Category | Motherboard / Chipset |
| SKU | PRO Z790-A MAX WIFI |
| Warranty | 2 Years Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
