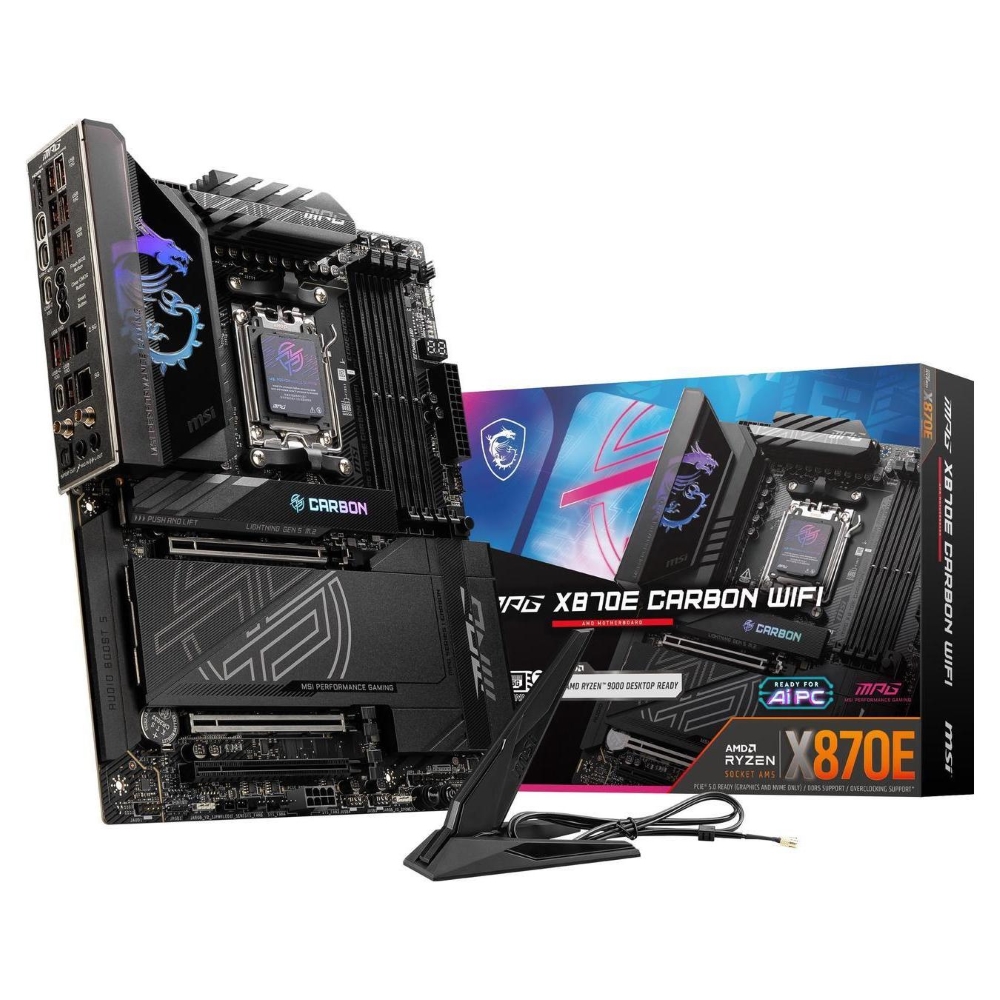

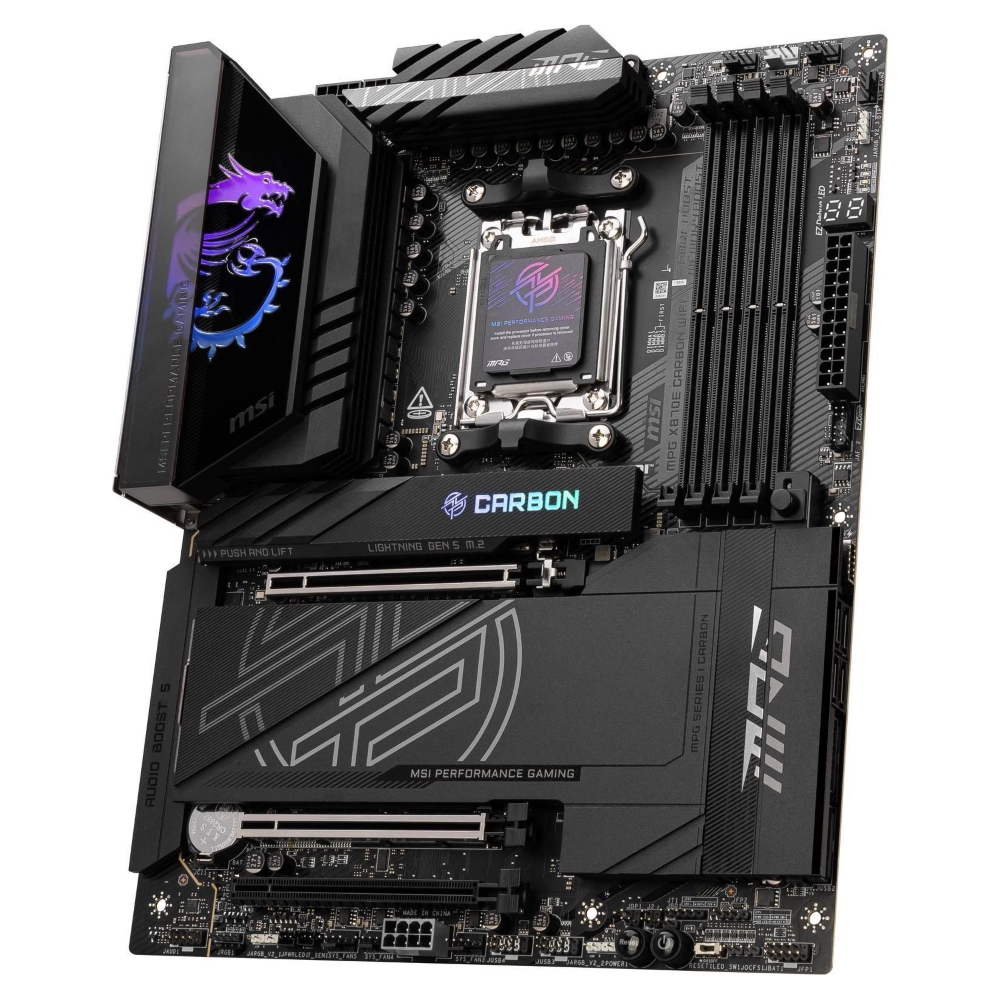

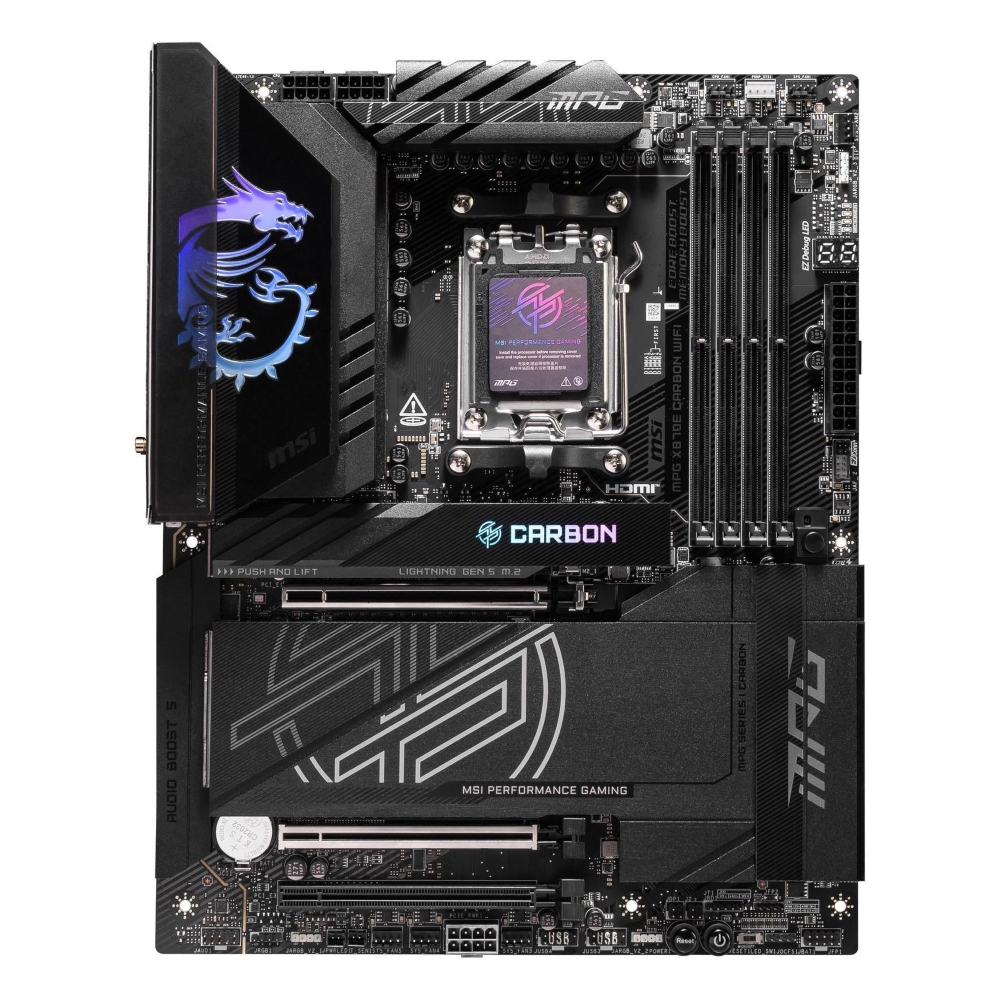

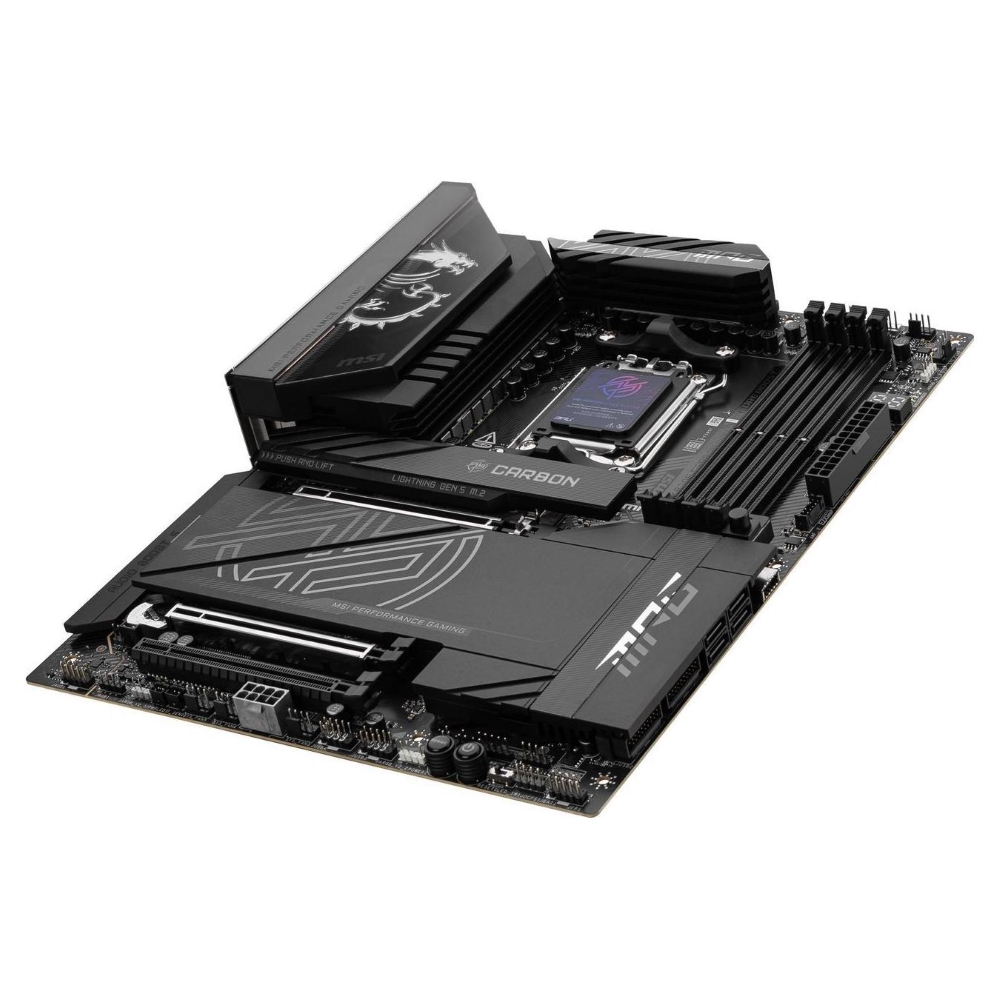

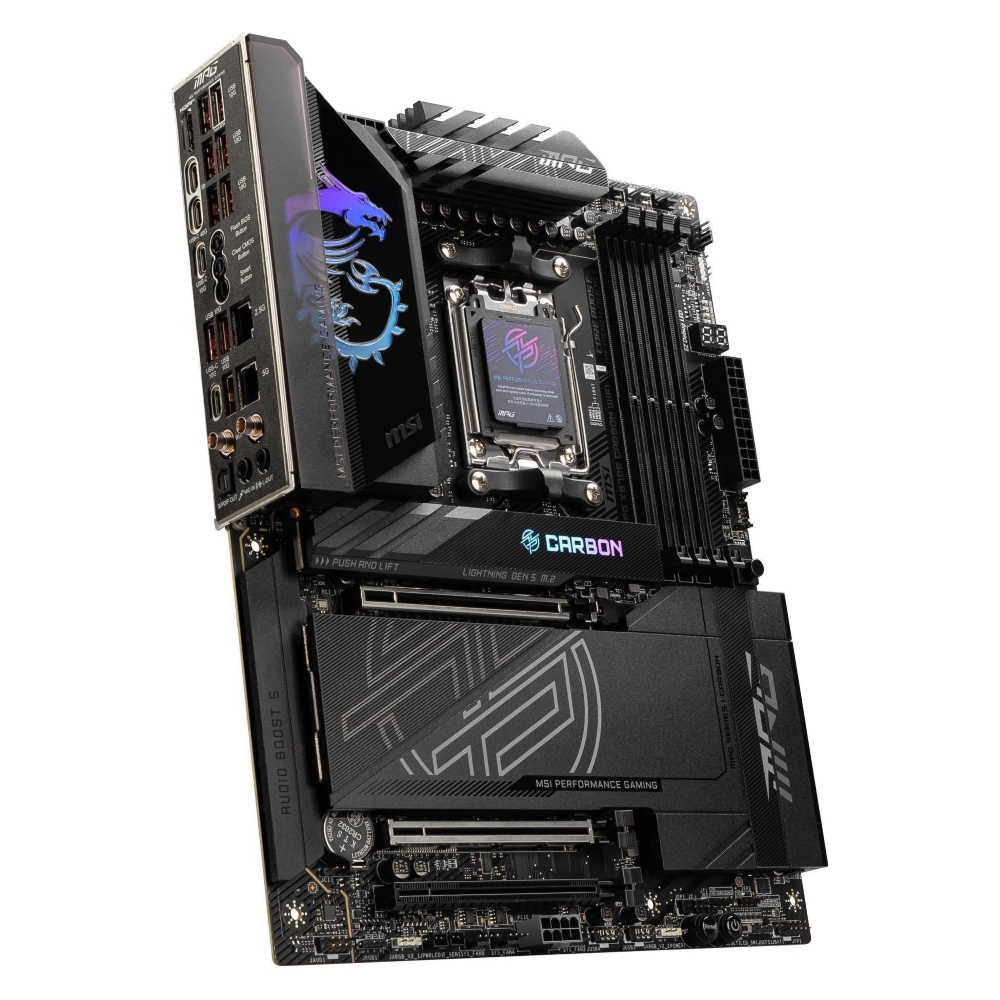

    MSI MPG X870E CARBON AM5 ATX Gaming Motherboard

    ₨169,000.00

    Payment Methods:

    zahcomputers payment methods

    Highlights

    • Premium Thermal Design:Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/ mK MOSTFET thermal pads / onboard M.2 Shield Frozr
    • EZ PCIe Release:A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
    • EZ M.2 Shield Frozr II:The new tool-less design makes installing removing your M.2 SSD and Shield Frozr much easier
    • Lightning Gen 5:The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
    • DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
    • Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage transmission speed.
    • Dual LAN:Dual premium network solution for both intranet and internet, offering a smooth gaming experience for effective network connection
    • Wi-Fi 7:The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps.
    Warranty

    1 Year

    • mappk We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • Zahcomputers.pk1200 ZAH Express – Within 24 Hours

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • leopard Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
    • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
    • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
    • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
    • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

    You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

    • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
    • The item(s) does not match the original specifications or is different from what you ordered.

    To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

    For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

    Returns:

    If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

    Refund Policy:

    In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

    MSI MPG X870E CARBON AM5 ATX Gaming Motherboard Price in Pakistan


    Best Seller Ranking #6 in AMD Motherboards
    Model
    Brand MSI
    Model MPG X870E CARBON WIFI
    Supported CPU
    CPU Socket Type  AM5
    CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
    Chipsets
    Chipset  AMD X870E
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400
    Maximum Memory Supported 256GB
    Channel Supported  Dual Channel
    ECC Supported Non-ECC
    Buffer Supported Un-buffered
    Memory Feature Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
    Ryzen 9000 Series Processors max. overclocking frequency:
    – 1DPC 1R Max speed up to 8400+ MT/s
    – 1DPC 2R Max speed up to 6400+ MT/s
    – 2DPC 1R Max speed up to 6400+ MT/s
    – 2DPC 2R Max speed up to 4800+ MT/s
    Expansion Slots
    PCI Express 5.0 x16 PCI_E1 slot (From CPU): Support up to PCIe 5.0 x16
    PCI_E2 slot (From CPU): Support up to PCIe 5.0 x4
    * Supports x16/x0 or x8/x4 (For Ryzen 9000/7000 Series processors)
    * Supports x8/x0 (For Ryzen 7 8700G and Ryzen 5 8600G processor)
    * Supports x4/x0 (For Ryzen 5 8500G processor)
    PCI Express x4 PCI_E3 slot (From X870E chipset): Supports up to PCIe 4.0 x1
    Other Slots * PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.
    Storage Devices
    SATA 6Gb/s  4 x SATA 6Gb/s
    M.2 4 x M.2 slots (Key M)
    M2_1 slot (From CPU)
    – Supports up to PCIe 5.0 x4
    – Supports 2260/2280 storage devices
    M2_2 slot (From CPU)
    – Supports up to PCIe 5.0 x4
    – Supports 2260/2280 storage devices
    M2_3 slot (From Chipset)
    – Supports up to PCIe 4.0 x4
    – Supports 2280/22110 storage devices
    M2_4 slot (From Chipset
    – Supports up to PCIe 4.0 x4
    – Supports 2260/2280 storage devices

    * PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.
    SATA RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    Additional RAID Controller Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
    Onboard Audio
    Audio Chipset  Realtek ALC4080
    Audio Channels  7.1 Channels
    Onboard LAN
    LAN Chipset Realtek 8126 5Gbps LAN controller
    Second LAN Chipset Realtek 8125 2.5Gbps LAN controller
    Max LAN Speed 5Gbps + 2.5Gbps
    Wireless LAN Wi-Fi 802.11 be
    Bluetooth Bluetooth 5.4

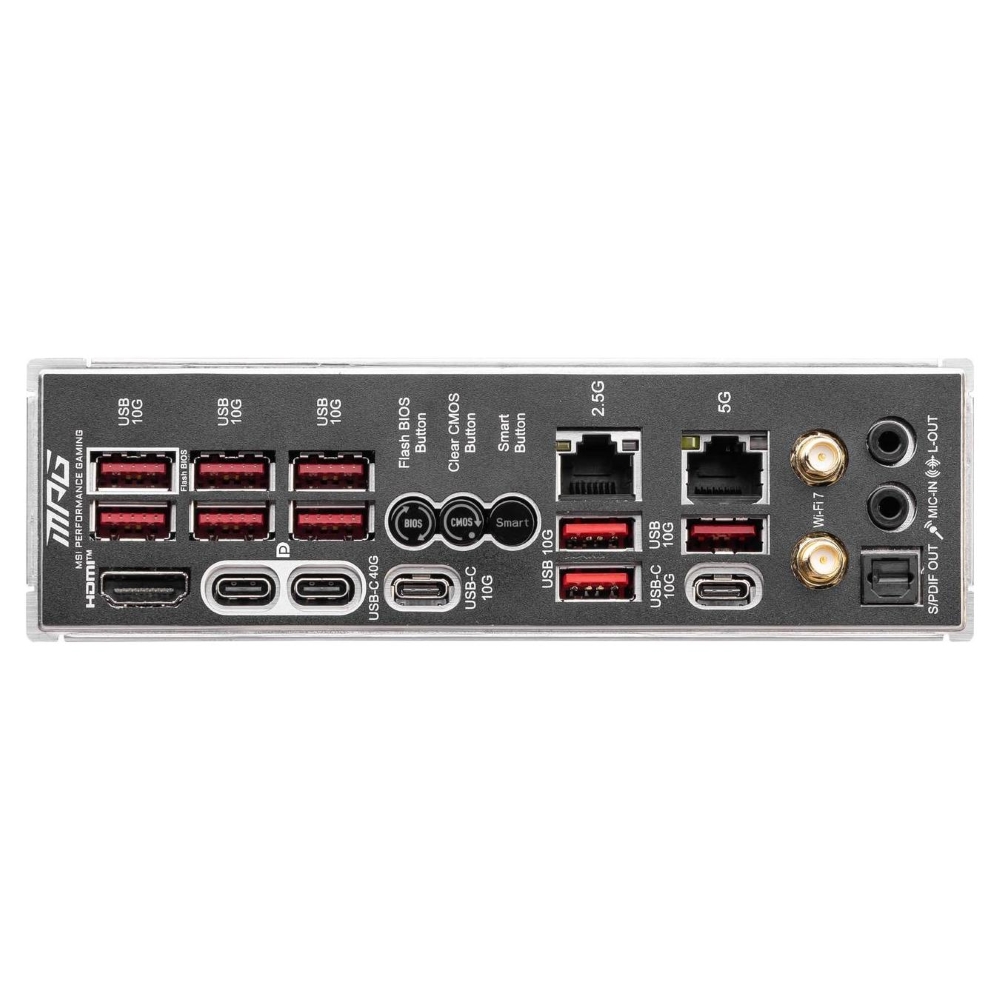

    Rear Panel Ports
    Back I/O Ports 2 x USB 10Gbps Type A (From X870E Chipset)
    4 x USB 10Gbps Type A (From RTS5420)
    1 x HDMI port
    2 x USB 40Gbps Type-C (From CPU/ASM4242)
    2 x USB 10Gbps Type C (1 from CPU/ 1 from X870E Chipset)
    3 x USB 10Gbps Type A (1 from CPU/ 1 from X870E Chipset)
    1 x Clear CMOS Button
    1 x Flash BIOS Button
    1 x Smart Button
    1 x 5G LAN (RJ45) port
    1 x 2.5G LAN (RJ45) port
    2 x Wi-Fi Antenna connectors
    2 x audio jacks
    1 x Optical S/PDIF Out connector
    Internal I/O Connectors
    Other Connectors AMD X870 Chipset
    – 1x USB 3.2 Gen 2×2 20Gbps Type-C connectors Supports up to 27W fast charging
    – 2x USB 3.2 Gen 1 5Gbps connectors Supports additional 4 USB 3.2 Gen 1 5Gbps ports
    – 2x USB 2.0 Type-A connectors Supports additional 4 USB 2.0 ports

    Fan Connectors
    – 1x 4-pin CPU fan connector
    – 1x 4-pin PUMP_SYS fan connectors
    – 5x 4-pin system fan connectors

    System Connectors
    – 1x Front panel audio connector
    – 2x System panel connectors
    – 1x Chassis Intrusion connector
    – 1x 2-pin Thermal sensor connectors
    – 1x EZ Conn-Header V2 (JAF_2)

    Jumpers
    – 1x Clear CMOS jumper
    – 1x OC safe boot jumper
    Physical Spec
    Form Factor ATX
    LED Lighting 1 x 4-pin RGB LED connector
    3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
    4 x EZ Debug LED
    1 x 2-Digit Debug Code LED
    Dimensions (W x L) 12.0″ x 9.6″
    Power Pin 1 x 24-pin Power Connector (ATX_PER)
    2 x 8-pin Power Connector (CPU_PWR)
    1 x 8-pin Power Connector (PCIE_PWR)
    Software Feature
    BIOS Feature 1 x 256 Mb flash
    UEFI AMI BIOS
    ACPI 6.4, SMBIOS 3.7
    Multi-language
    Software Drivers
    MSI Center
    Acrobat
    Adobe Creative Cloud
    AIDA64 Extreme-MSI Edition
    CPU-Z MSI GAMING
    MSI App Player(BlueStacks)
    Norton 360
    Voicemod
    Features
    Features EZ DIY
    – Magnetic M.2 Shield Frozr
    – EZ M.2 Clip II
    – EZ PCIe Release
    – Smart Button
    – Flash BIOS Button
    – Clear CMOS Button
    – Pre-installed I/O Shield
    – EZ Antenna
    – EZ Front Panel Cable
    – EZ Conn-Design
    – PCI-E Steel Armor II
    – EZ Digi-Debug LED
    – EZ LED Control (Switch)

    Thermal Features
    – Heat-pipe Design
    – Extended Heatsink Design
    – M.2 Shield Frozr
    – 7W/mK MOSFET thermal pad
    – 5W/mK Extra choke pad
    – FAN Headers (CPU*1 + PUMP_SYS*1 + SYSTEM*5)

    Performance
    – Core Boost
    – VRM Power Design (VCore
    – M.2 Shield Frozr
    – 7W/mK MOSFET thermal pad
    – Choke thermal pad
    – Fan headers (CPU + PUMP + SYSTEM)

    Performance
    – Core Boost
    – VRM Design
    – Dual CPU Power
    – Memory Force
    – Lightning Gen 5 PCI-E Slot
    – Lightning Gen 5 M.2 Slot
    – Lightning Gen 4 PCI-E Slot
    – Lightning Gen 4 M.2 Slot
    – Front USB Type-C
    – USB with PD (27W/Front Type-C(
    – Supplemental PCIe Power Connector
    – Server Grade PCB
    – 2oz Copper thickened PCB

    Audio
    – Audio Boost 5

    RGB
    – Mystic Light
    – Mystic Light Extension (RGB)
    – Mystic Light Extension (A-RGB V2)
    – Ambient Devices Support

    BIOS
    – Click BIOS X
    – AI Boost
    – Performance Preset
