Highlights

  • Supports AMD Ryzen 7000 Series Desktop Processor.
  • Supports 4 DIMMs, Dual Channel DDR5: + (OC).
  • Premium Thermal Design: Heavy Plated heatsink with heat-pipe / high quality Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
  • LIghtnign Gen4 solution.
  • M.2 Shield FROZR: M.2 Thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Wi-Fi 6E: The latest wireless solution suppports 6GHz spectrum, MU_MIMO and BSS color technology, delivering speeds up to 2400Mbps.
  • 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
  • Lightning USB 20G: Built-in USB 3.2 Gen 2X2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
  • Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience.
  • Memory Boost: Advance technology to deliver pure date signals for the best performance.

MSI MAG B650 TOMAHAWK WIFI AM5 AMD B650 SATA 6Gb/s DDR5 Ryzen 7000 ATX Motherboard

72,000.00

Highlights

  • Supports AMD Ryzen 7000 Series Desktop Processor.
  • Supports 4 DIMMs, Dual Channel DDR5: + (OC).
  • Premium Thermal Design: Heavy Plated heatsink with heat-pipe / high quality Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
  • LIghtnign Gen4 solution.
  • M.2 Shield FROZR: M.2 Thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Wi-Fi 6E: The latest wireless solution suppports 6GHz spectrum, MU_MIMO and BSS color technology, delivering speeds up to 2400Mbps.
  • 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
  • Lightning USB 20G: Built-in USB 3.2 Gen 2X2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
  • Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience.
  • Memory Boost: Advance technology to deliver pure date signals for the best performance.

Out of stock

Payment Methods:

  • We Deliver All Over Pakistan

We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

  • ZAH Express - (SAME-DAY DELIVERY)

Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

  • Leopards Courier

We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

  • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
  • Non-COD Parcel Delivery to Other Cities - Over Land: 4 to 5 days
  • Non-COD Parcel Delivery to Other Cities - Overnight *48 Hours:

Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

  • Warranty Details
  • Returns & Exchange

  • We Deliver All Over Pakistan

We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

  • ZAH Express – (SAME-DAY DELIVERY)

Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

  • Leopards Courier

We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

  • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
  • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
  • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

  • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
  • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
  • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
  • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
  • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

  • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
  • The item(s) does not match the original specifications or is different from what you ordered.

To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

Returns:

If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

Refund Policy:

In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

SPECIFICATION

MSI MAG B650 TOMAHAWK WIFI AM5 AMD B650 SATA 6Gb/s DDR5 Ryzen 7000 ATX Motherboard Price in Pakistan Specs

Model
Brand MSI
Model MAG B650 TOMAHAWK WIFI
Supported CPU
CPU Socket Type  AM5
CPU Type Supports AMD Ryzen 7000 Series Desktop Processor
Chipsets
Chipset  AMD B650
South Bridge Supports 4 DIMMs, Dual Channel DDR5-5600+ (OC)
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
ECC Supported Supports non-ECC, un-buffered memory
Supports ECC UDIMM memory (non-ECC mode)
Expansion Slots
PCI Express 4.0 x16 2x PCIe x16 slots
Supports x16/x2
PCI_E1 slot (From CPU)
– Supports up to PCIe 4.0 x16
PCI_E2* (From B650 chipset)
– Supports up to PCIe 4.0 x2

* PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.

PCI Express x1 1x PCIe x1 slot
PCI_E3 slot (From B650 chipset)
– Supports up to PCIe 3.0 x1
Storage Devices
SATA 6Gb/s  6x SATA 6Gb/s ports (From B650 chipset)
– SATA_1_2/ SATA_3_4 (From B650 chipset)
– SATA_A1_A2 (From ASM1061)
M.2 3 x Key M (PCIe) + 1 x Key E (WiFi/BT)

3x M.2 slots (Key M)
M2_1 & M2_2 slot (From CPU)
– Supports up to PCIe 4.0 x4
– M2_1 supports 2280/ 22110 storage devices
– M2_2 supports 2260/ 2280 storage devices
M2_3 slot (From B650 chipset)
– Supports up to PCIe 4.0 x4*
– Supports 2260/ 2280 storage devices

* M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.

SATA RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
* SATA_A1 & SATA_A2 do not support RAID function.
Onboard Audio
Audio Chipset  Realtek ALC4080
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset 1x Realtek 8125B 2.5Gbps LAN controller
Max LAN Speed 2.5Gbps
Wireless LAN AMD Wi-Fi 6E RZ616
– The Wireless module is pre-installed in the M.2 (Key-E) slot
– Supports MU-MIMO TX/RX
– Supports 20MHz, 40MHz, 80Mhz, 160Mhz bandwidth in 2.4GHz/ 5GHz or 6GHz bands*
– Supports 802.11 a/ b/ g/ n/ ac/ ax

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 21H1 and Windows 11.

Bluetooth Supports Bluetooth 5.2*
* Bluetooth 5.2 will be ready in Windows 10 21H1 and Windows 11.

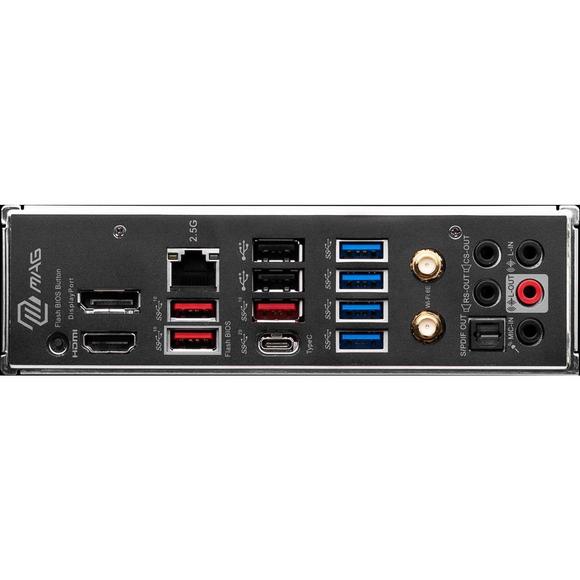

Rear Panel Ports
Back I/O Ports 1x Flash BIOS button
1x DP port
1x HDMI port
3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)
1x USB 3.2 Gen 2×2 20Gbps Type-C port (From B650 chipset)
4x USB 3.2 Gen 1 5Gbps Type-A ports (From B650 chipset)
2x USB 2.0 Type-A ports (From B650 chipset)
1x LAN (RJ45) jack
2x Wi-Fi Antenna connectors
5x audio jacks
1x Optical S/PDIF Out connector
Internal I/O Connectors
Onboard USB 1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector
– Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 connectors
– Supports additional 4 USB 2.0 ports
Other Connectors Fan Connectors
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin System fan connectors

System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning Controller connector

Jumpers
1x Clear CMOS jumper

LED Features
2x 4-pin RGB LED connector
2x 3-pin ARGB_V2 LED connectors
4x EZ Debug LED

Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1x 24-pin ATX main power connector
2x 8-pin EPS 12V power connectors
Windows 11 Compatibility
Windows 11 Supported
Features
Features MSI Center Features
– Gaming Mode
– Smart Priority
– Game Highlights
– Mystic Light
– Ambient Link
– Frozr AI Cooling
– User Scenario
– True Color
– Live Update
– Hardware Monitoring
– Super Charger
– Devices Speed Up
– Smart Image Finder
– MSI Companion
– System Diagnosis

Thermal Features
– Extended Heatsink Design
– M.2 Shield Frozr
– K7 MOSFET thermal pad / Extra choke pad
– Fan headers (CPU + PUMP + SYSTEM)

Performance
– Core Boost
– VRM Power Design
– Dual CPU Power
– Memory Boost
– Lightning Gen 4 PCI-E / M.2 Slot
– Front USB Type-C
– Server Grade PCB
– 2oz Copper thickened PCB

DIY Friendly
– PCI-E Steel Armor
– Pre-installed I/O Shield
– EZ M.2 Clips
– EZ DEBUG LED
– EZ LED Control
– Flash BIOS Button

RGB Support
– Mystic Light
– Mystic Light Extension (RGB)
– Mystic Light Extension (ARGB_V2)
– Ambient Devices Support

BIOS Features
– 1x 256 Mb flash
– UEFI AMI BIOS
– ACPI 6.4, SMBIOS 3.4
– Multi-language
