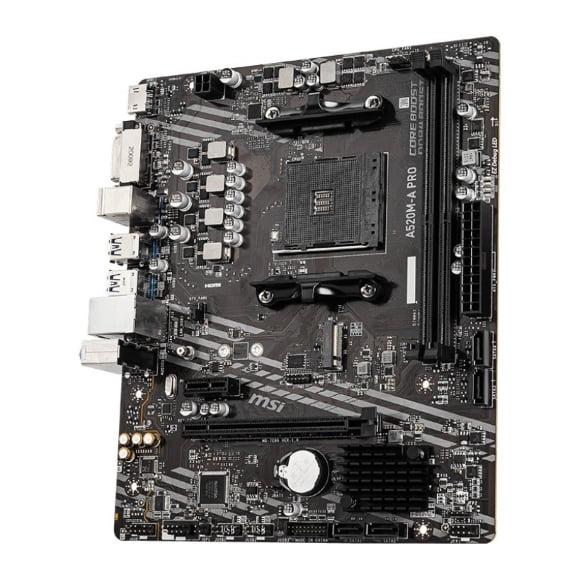

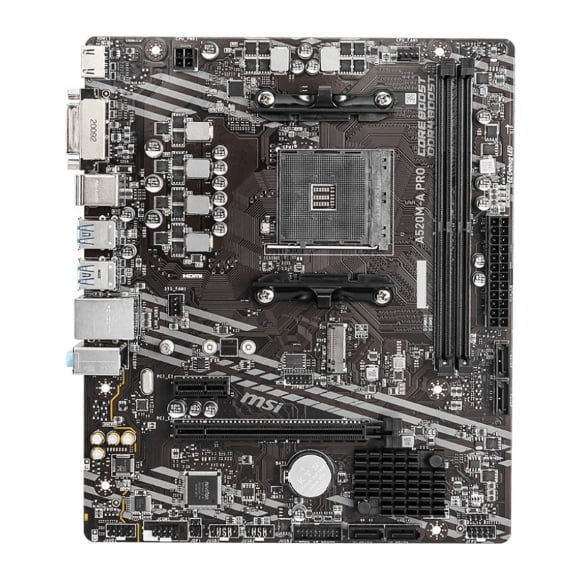

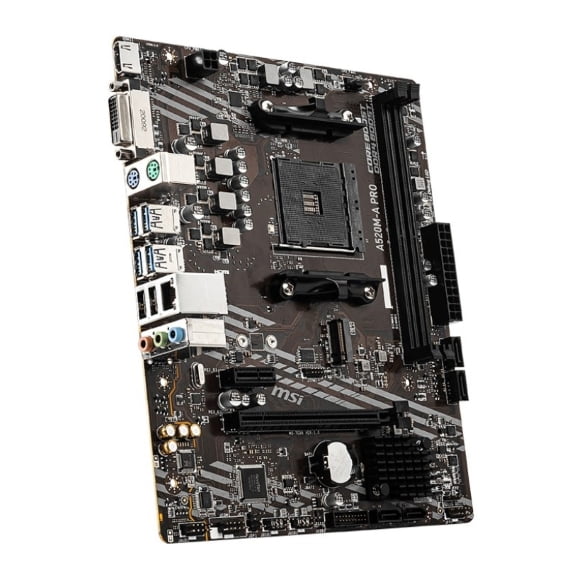

MSI A520M-A PRO AM4 AMD A520 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard

23,500.00

Warranty: 2 Years

Payment Methods:

zahcomputers payment methods

Highlights

  • AMD A520
  • Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
  • Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
  • Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
  • 1DPC 1R max speed 4600 MHz
  • 1DPC 2R max speed 3866 MH

  • mappk We Deliver All Over Pakistan

We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

  • Zahcomputers.pk1200 ZAH Express – (SAME-DAY DELIVERY)

Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

  • leopard Leopards Courier

We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

  • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
  • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
  • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

  • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
  • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
  • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
  • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
  • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

  • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
  • The item(s) does not match the original specifications or is different from what you ordered.

To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

Returns:

If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

Refund Policy:

In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

MSI A520M-A PRO AM4 AMD A520 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard Price in Pakistan

Model
Brand MSI
Model A520M-A PRO
Supported CPU
CPU Socket Type  AM4
CPU Type Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
Chipsets
Chipset  AMD A520
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Maximum Memory Supported 64GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 3.0 x16  1 x PCI Express 3.0 x16

* Actual support may vary by CPU.

PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCIe 3.0 x1 slot
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 1 x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0 *
Supports SATA 6Gb/s
Supports 2242/2260/2280 storage devices

* The supported specification depends on installed processor.

SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic:

1 x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz12
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
Maximum shared memory of 16GB

1 Available for the processor with integrated graphics.
2 Graphics specifications may vary depending on the CPU installed.

Onboard Audio
Audio Chipset  Realtek ALC892
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 1Gbps

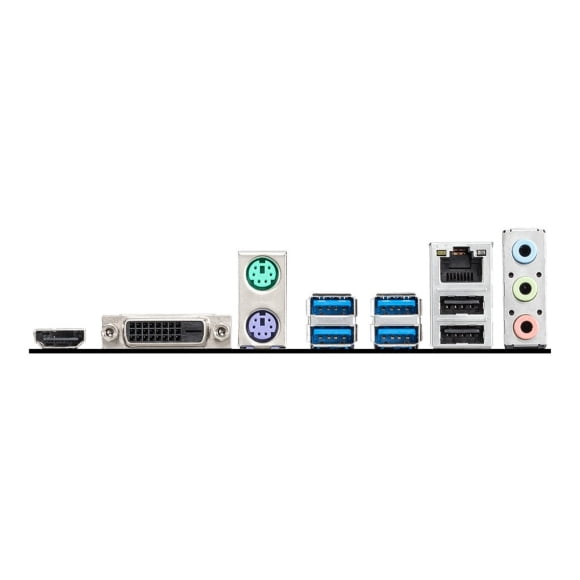

Rear Panel Ports
Back I/O Ports 6 x USB 3.1 Gen 1 Type-A
USB 3.0  6 x USB 3.0
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
LED Lighting None RGB
Dimensions (W x L) 9.3″ x 7.9″
Power Pin 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
Windows 11 Compatibility
Windows 11 Supported
Features
Features Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors

Supports DDR4 Memory, up to 4600(OC) MHz

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

Core Boost: With premium layout and digital power design to support more cores and provide better performance

DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability

2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability

Audio Boost: Reward your ears with studio grade sound quality

Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
