Lian Li ODYSSEY X Specs
Compatibility
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX, SSI-EEB |
| Internal Drive Bays | 3 x 3.5″ Or 3 x 2.5″ |
| Expansion Slots | 8 x Full Height |
| Maximum GPU Length | 16.7″ / 423 mm |
| CPU Cooler Height | 6.6″ / 167 mm |
| Maximum PSU Length | 11.0″ / 280 mm |
Cooling
| Fan Mounting (Front) | 3 x 120 mm Or 2 x 140 mm |
| Fan Mounting (Side) | 3 x 120 mm Or 3 x 140 mm |
| Fan Mounting (Top) | 3 x 120 mm Or 2 x 140 mm |
| Fan Mounting (Bottom) | None |
| Maximum Radiator Size (Front) | 480 mm |
| Maximum Radiator Size (Side) | 360 mm |
| Maximum Radiator Size (Bottom) | 480 mm |
| Fan Controller Included | No |
I/O

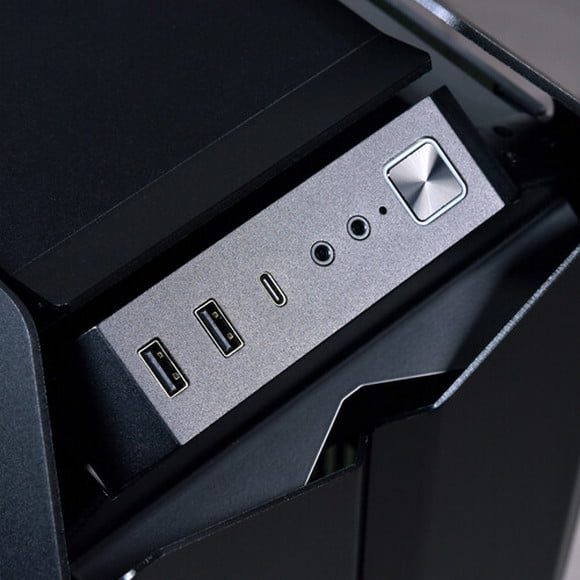

| Connections | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 1) |
| Media/Memory Card Slot | None |
| Audio Connections | 1 x 3.5 mm Input 1 x 3.5 mm Output |
| Display Connections | None |
Physical

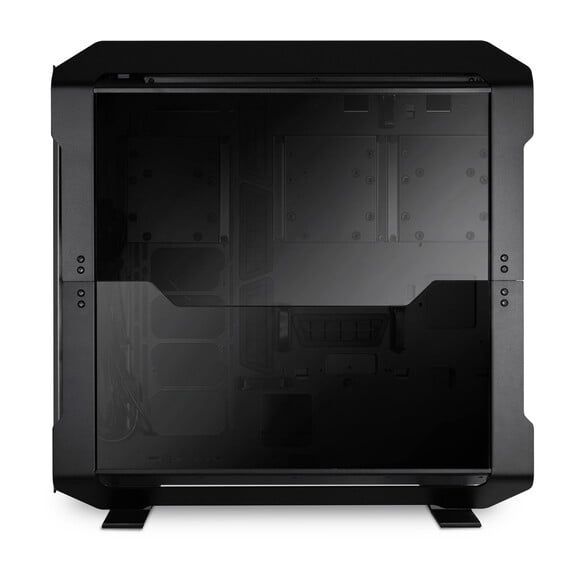

| Windowed Panel | Yes |
| Material | Aluminum, Steel, Tempered Glass |
| Built-In Lighting | No |
| Dimensions (W x H x D) | 22.7 x 22 x 9.2″ / 575.5 x 558.5 x 234 mm |
Packaging Info
| Package Weight | 42 lb |
| Box Dimensions (LxWxH) | 27 x 26 x 19″ |
