Gigabyte
Gigabyte Z790 Eagle AX WIFI DDR5 ATX LGA1700 Gaming Motherboard
In stock
Rs 73,999
Key Highlights
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 5.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card * 6+6 phases parallel power design
- Brand
- Gigabyte
- Category
- Motherboard / Chipset
- SKU
- Z790 Eagle AX
- Warranty
- 1 Year Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
Gigabyte Z790 Eagle AX WIFI DDR5 ATX LGA1700 Gaming Motherboard Price in Pakistan
| CPU | Socket: LGA1700 |
| Support for: | |
| • 14th / 13th / 12th Gen Intel® Core™ Processors | |
| • Pentium® Gold and Celeron® Processors | |
| Note: L3 cache varies with CPU | |
| (Refer to “CPU Support List” for more information) | |
| Chipset | Intel® Z790 Express Chipset |
| Memory | For 14th & 13th Gen Core™ i9/i7: |
| DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 4800 / 4400 MT/s | |
| For 13th Gen i5/i3 & 12th Gen CPUs: | |
| DDR5 4800 / 4400 MT/s | |
| Slots: 4 × DDR5 DIMM sockets (up to 256 GB total, 64 GB per DIMM) | |
| Dual channel architecture | |
| Supports ECC/Non-ECC Un-buffered DIMM (ECC operates in non-ECC mode) | |
| Supports Intel® XMP profiles | |
| Onboard Graphics | Integrated Intel® HD Graphics |
| • 1 × HDMI 2.1 port: Max 4096×2160@60Hz, HDCP 2.3 | |
| • 1 × DisplayPort 1.2: Max 4096×2304@60Hz, HDCP 2.3 | |
| Audio | Realtek® Audio CODEC |
| • High Definition Audio | |
| • 2/4/5.1/7.1-channel configuration via software | |
| • Support for S/PDIF Out | |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Communication | PCB rev. 1.0: Intel® Wi-Fi 6E AX211 |
| • Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz) | |
| • Bluetooth 5.3 | |
| • 160MHz bandwidth | |
| PCB rev. 1.1: Realtek® Wi-Fi 6E RTL8852CE | |
| • Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz) | |
| • Bluetooth 5.3 | |
| • 160MHz bandwidth | |
| Expansion Slots | From CPU: |
| • 1 × PCIe x16 (PCIe 5.0 x16) — supports GPU/NVMe SSD | |
| From Chipset: | |
| • 1 × PCIe x16 (PCIe 4.0 x4) | |
| • 1 × PCIe x16 (PCIe 3.0 x1) | |
| • 2 × PCIe x1 (PCIe 3.0 x1) | |
| Storage Interface | From CPU: |
| • 1 × M.2 (M2A_CPU, type 22110/2280, PCIe 4.0 x4/x2) | |
| From Chipset: | |
| • 1 × M.2 (M2P_SB, type 2280, PCIe 4.0 x4/x2) | |
| • 1 × M.2 (M2M_SB, type 2280, SATA & PCIe 4.0 x4/x2) | |
| • 4 × SATA 6Gb/s ports | |
| RAID Support: RAID 0/1/5/10 for NVMe & SATA devices | |
| USB Ports | Chipset: |
| • 1 × USB Type-C® (rear, USB 3.2 Gen 2) | |
| • 1 × USB Type-C® (internal header, USB 3.2 Gen 1) | |
| • 1 × USB 3.2 Gen 2 Type-A (rear, red) | |
| • 6 × USB 3.2 Gen 1 (4 rear, 2 internal) | |
| • 2 × USB 2.0 (rear) | |
| Chipset + Hub: | |
| • 4 × USB 2.0 (internal headers) | |
| Internal I/O Connectors | • 1 × 24-pin ATX main power |
| • 2 × 8-pin ATX 12V | |
| • 1 × CPU fan header | |
| • 1 × CPU fan/water pump header | |
| • 3 × system fan headers | |
| • 1 × system fan/water pump header | |
| • 2 × ARGB LED headers | |
| • 3 × M.2 sockets | |
| • 4 × SATA 6Gb/s | |
| • 1 × front panel | |
| • 1 × front audio | |
| • 1 × S/PDIF Out header | |
| • 1 × USB Type-C® (USB 3.2 Gen 1) | |
| • 1 × USB 3.2 Gen 1 header | |
| • 2 × USB 2.0 headers | |
| • 2 × Thunderbolt™ add-in card connectors | |
| • 1 × TPM header | |
| • 1 × reset button | |
| • 1 × Q-Flash Plus button | |
| • 1 × reset jumper | |
| • 1 × Clear CMOS jumper | |

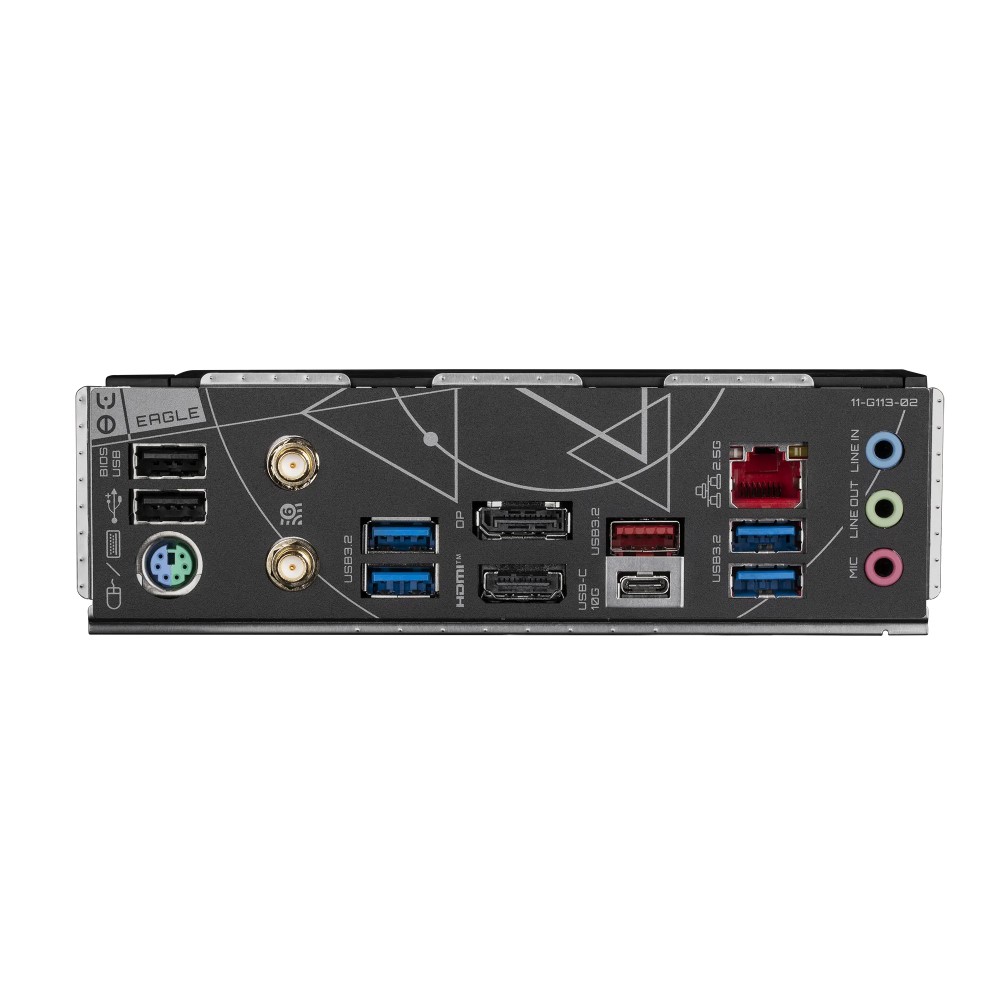

| Back Panel Connectors | • 1 × PS/2 keyboard/mouse |
| • 1 × USB Type-C® (USB 3.2 Gen 2) | |
| • 1 × USB 3.2 Gen 2 Type-A (red) | |
| • 4 × USB 3.2 Gen 1 | |
| • 2 × USB 2.0 | |
| • 2 × SMA Wi-Fi antenna connectors (1T1R) | |
| • 1 × HDMI | |
| • 1 × DisplayPort | |
| • 1 × RJ-45 LAN | |
| • 3 × audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | • Voltage, temperature, fan speed, and water flow detection |
| • Fan fail warning | |
| • Fan/pump speed control (depends on hardware) | |
| BIOS | • 1 × 256 Mbit flash |
| • AMI UEFI BIOS | |
| • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | • GIGABYTE Control Center (GCC) |
| • Q-Flash / Q-Flash Plus | |
| • Smart Backup | |
| Bundled Software | • Norton® Internet Security (OEM) |
| • LAN bandwidth management software | |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
| Product Name | Gigabyte Z790 Eagle AX WIFI DDR5 ATX LGA1700 Gaming Motherboard |
| Brand | Gigabyte |
| Category | Motherboard / Chipset |
| SKU | Z790 Eagle AX |
| Motherboard Platform | Intel Motherboard |
| RAM Type | DDR5 |
| Warranty | 1 Year Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
