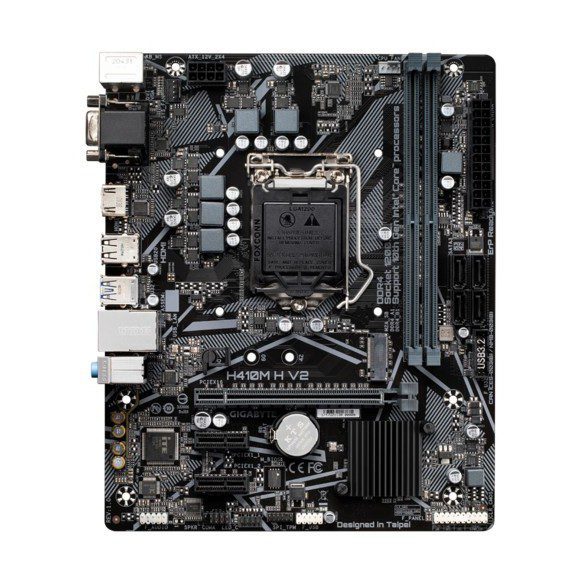

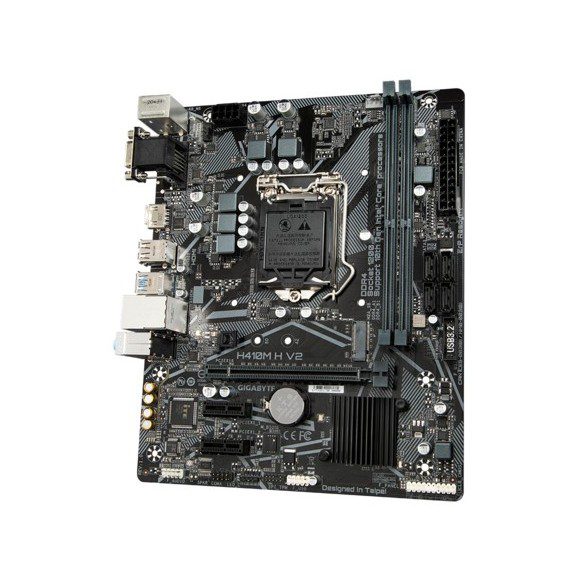

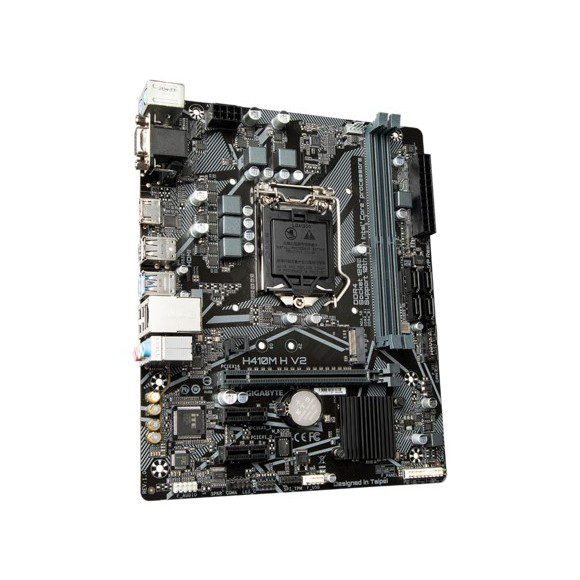

GIGABYTE H410M H V2 Durable with Intel® GbE LAN, Anti-Sulfur Resistor, Smart Fan 5 Motherboard Price in Pakistan
| CPU | 1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package |
| 2. L3 cache varies with CPU | |
| (Please refer “CPU Support List” for more information.) | |
|
Chipset |
1. Intel® H470 Express Chipset |
|
Memory |
1. Intel® Core™ i9/i7 processors: |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| 2. Intel® Core™ i5/i3/Pentium®/Celeron® processors: | |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| 3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| 4. Dual channel memory architecture | |
| 5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 7. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz | |
| 2. 1 x HDMI ports, supporting a maximum resolution of 4096×[email protected] Hz | |
| * Support for HDMI 1.4 version and HDCP 2.3. | |
| Maximum shared memory of 512 MB | |
|
Audio |
1. Realtek® Audio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. | |
|
LAN |
1. Intel® GbE LAN chip (1 Gbit/100 Mbit) |
|
Expansion Slots |
1. 1 x PCI Express x16 slot, running at x16 |
| 2. 2 x PCI Express x1 slots | |
| (The PCI Express slots conform to PCI Express 3.0 standard.) | |
| Supports up to ASPM L1.2 power management protocols. | |
|
Storage Interface |
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) |
| 2. 4 x SATA 6Gb/s connectors | |
| 3. Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| 4. Intel® Optane™ Memory Ready | |
| M.2 connectors support up to ASPM L1.2 PCIe power management protocols. | |
|
USB |
Chipset: |
| 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
|
Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 1 x system fan header | |
| 5. 1 x RGB LED strip header | |
| 6. 4 x SATA 6Gb/s connectors | |
| 7. 1 x front panel header | |
| 8. 1 x front panel audio header | |
| 9. 1 x USB 3.2 Gen 1 header | |
| 10. 1 x USB 2.0/1.1 header | |
| 11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 12. 1 x serial port header | |
| 13. 1 x Clear CMOS jumper | |
|

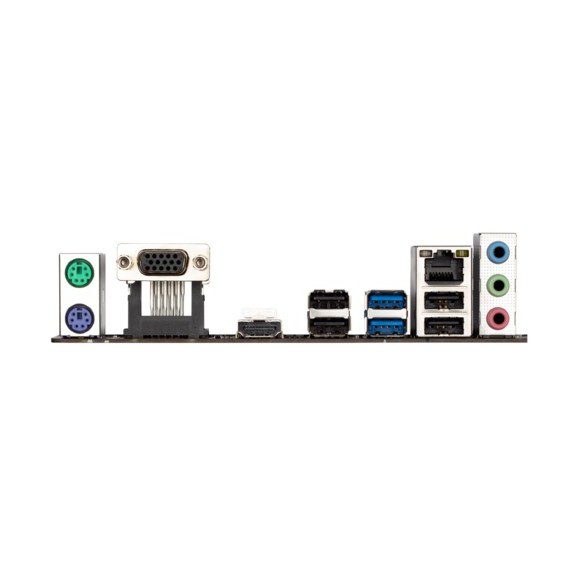

Back Panel Connectors |
1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x D-Sub port | |
| 3. 1 x HDMI port | |
| 4. 2 x USB 3.2 Gen 1 ports | |
| 5. 4 x USB 2.0/1.1 ports | |
| 6. 1 x RJ-45 port | |
| 7. 3 x audio jacks | |
|
I/O Controller |
1. iTE® I/O Controller Chip |
|
H/W Monitoring |
1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Overheating warning | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
|
BIOS |
1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
Unique Features |
1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| Ambient LED | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash | |
| 3. Support for Xpress Install | |
|
Bundled Software |
1. Norton® Internet Security (OEM version) |
| 2. cFosSpeed | |
|
Operating System |
1. Support for Windows 10 64-bit |
|
Form Factor |
1. Micro ATX Form Factor; 22.6cm x 18.5cm |
