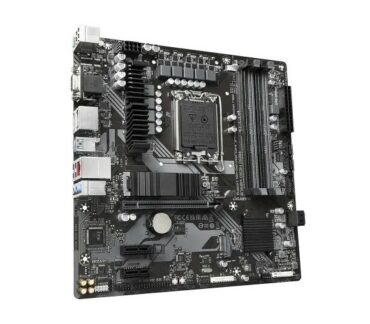

GIGABYTE B760M DS3H DDR4 14th, 13th and 12th Gen Intel mATX Motherboard rev. 1.0

38,500.00

Out of stock

Payment Methods:

zahcomputers payment methods

Highlights

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4:4*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • M.2 Thermal Guard:To Ensure M.2 SSD Performance
  • EZ-Latch:PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks:2.5GbE LAN
  • Extended Connectivity:Rear USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Warranty

1 Year

  • mappk We Deliver All Over Pakistan

We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

  • Zahcomputers.pk1200 ZAH Express – Within 24 Hours

Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

  • leopard Leopards Courier

We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

  • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
  • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
  • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

  • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
  • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
  • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
  • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
  • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

  • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
  • The item(s) does not match the original specifications or is different from what you ordered.

To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

Returns:

If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

Refund Policy:

In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

GIGABYTE B760M DS3H DDR4 13th and 12th Gen Intel mATX Motherboard 1.0 Price in Pakistan

Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Memory
Type DDR4
Slots 4
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port
Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1 x front panel audio header
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumpe
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features 2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty 3 years

Description

GIGABYTE B760M DS3H DDR4 13th and 12th Gen Intel mATX Motherboard

The GIGABYTE B760M DS3H AX DDR4 is an mATX motherboard that supports Intel Socket LGA 1700 and 13th and 12th Gen Intel Series Processors. This motherboard has an unrivaled Hybrid 6+2+1 Phases Digital VRM Solution. It also includes dual-channel DDR4 memory with four DIMM slots that support XMP memory modules. This motherboard provides next-generation storage solutions with two PCIe 4.0 x4 M.2 ports. M.2 Thermal Guard is provided to guarantee that M.2 SSD performance is optimal. In addition, the motherboard has an EZ-Latch PCIe 4.0×16 slot with a rapid-release design. It includes a 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast networks. The motherboard’s rear panel provides additional connectivity options, including USB-C 10Gb/s, DP, and HDMI. Smart Fan 6 has many temperature sensors as well as hybrid fan headers with FAN STOP. Finally, the Q-Flash Plus functionality enables BIOS upgrades without the need for the CPU, RAM, or graphics card to be installed.
