Home » Shop » GIGABYTE B760 AORUS ELITE AX LGA 1700 Intel B760 with DDR5, Triple M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch ATX Motherboard
GIGABYTE Z790 UD AX LGA 1700 Intel Z790 with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key ATX Motherboard ₨95,000.00
Back to products
GIGABYTE B760M AORUS ELITE AX LGA 1700 Intel B760 with DDR5, Dual M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch M-ATX Motherboard ₨62,000.00
Click to enlarge

    Highlights

    • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
    • DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
    • Commanding Power Design: 12+1+1 Twin Hybrid Phases Digital Power Design with 60A DrMOS
    • Cutting-Edge Thermal Design: M.2 Thermal Guard, Fully Covered MOSFET Heatsinks, 6-Layer & 2X Copper PCB
    • Next Gen Connectivity: PCIe 4.0, USB 3.2 Gen 2×2 Type-C
    • EZ-Latch: PCIe 4.0 EZ-Latch with PCIe Ultra Durable Armor
    • Fast Networking: 2.5GbE LAN, WiFi 6E
    • Dynamic Audio: 8-ch HD Audio, Audio Noise Guard, High-End Audio Capacitor
    • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU”

    GIGABYTE B760 AORUS ELITE AX LGA 1700 Intel B760 with DDR5, Triple M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch ATX Motherboard

    Whatsapp For Price 03215530993

    Highlights

    • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
    • DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
    • Commanding Power Design: 12+1+1 Twin Hybrid Phases Digital Power Design with 60A DrMOS
    • Cutting-Edge Thermal Design: M.2 Thermal Guard, Fully Covered MOSFET Heatsinks, 6-Layer & 2X Copper PCB
    • Next Gen Connectivity: PCIe 4.0, USB 3.2 Gen 2×2 Type-C
    • EZ-Latch: PCIe 4.0 EZ-Latch with PCIe Ultra Durable Armor
    • Fast Networking: 2.5GbE LAN, WiFi 6E
    • Dynamic Audio: 8-ch HD Audio, Audio Noise Guard, High-End Audio Capacitor
    • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU”

    Payment Methods:

    • We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • ZAH Express - (SAME-DAY DELIVERY)

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities - Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities - Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • Warranty Details
    More details
    • Returns & Exchange
    More details

    • We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • ZAH Express – (SAME-DAY DELIVERY)

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
    • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
    • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
    • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
    • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

    You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

    • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
    • The item(s) does not match the original specifications or is different from what you ordered.

    To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

    For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

    Returns:

    If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

    Refund Policy:

    In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

    SPECIFICATION

    GIGABYTE B760 AORUS ELITE AX LGA 1700 Intel B760 with DDR5, Triple M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch ATX Motherboard Price in Pakistan

    Model
    BrandGIGABYTE
    ModelB760 AORUS ELITE AX
    Supported CPU
    CPU Socket Type LGA 1700
    CPU TypeSupport for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    Chipsets
    Chipset Intel B760
    Memory
    Number of Memory Slots4x288pin (DDR5)
    Memory StandardSupport for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    Maximum Memory Supported128GB
    Channel Supported Dual Channel
    Memory Feature4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Expansion Slots
    PCI Express 4.0 x161 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    PCI Express 3.0 x162 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
    Storage Devices
    SATA 6Gb/s 4 x SATA 6Gb/s
    M.2CPU:
    1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
    SATA RAID0/1/5/10
    Onboard Audio
    Audio Chipset Realtek Audio CODEC
    High Definition Audio
    Audio Channels 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    Onboard LAN
    LAN ChipsetRealtek 2.5GbE LAN chip
    Max LAN Speed2.5Gbps
    Wireless LANIntel Wi-Fi 6E AX211
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    BluetoothBluetooth 5.3

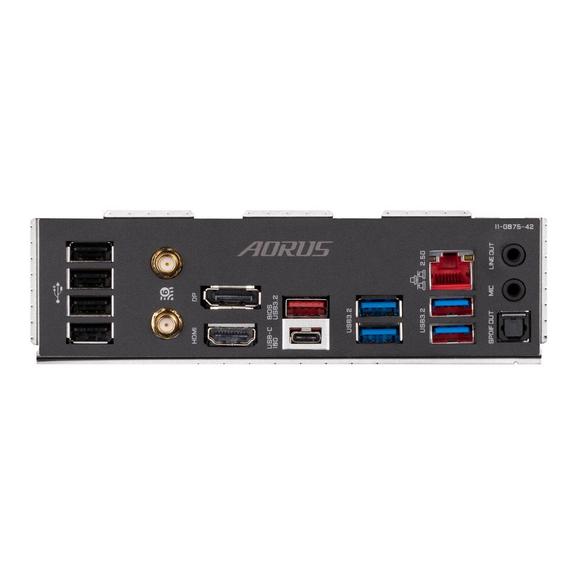

    Rear Panel Ports
    Back I/O Ports1 x USB Type-C port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    4 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (2T2R)
    1 x HDMI port
    1 x DisplayPort
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks
    Internal I/O Connectors
    Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    Other Connectors1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x reset button
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper
    Physical Spec
    Form FactorATX
    Dimensions (W x L)30.5cm x 24.4cm
    Power Pin1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    Windows Compatibility
    Windows 11Supported
    Features
    FeaturesUnique Features:
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus

    BIOS:
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
