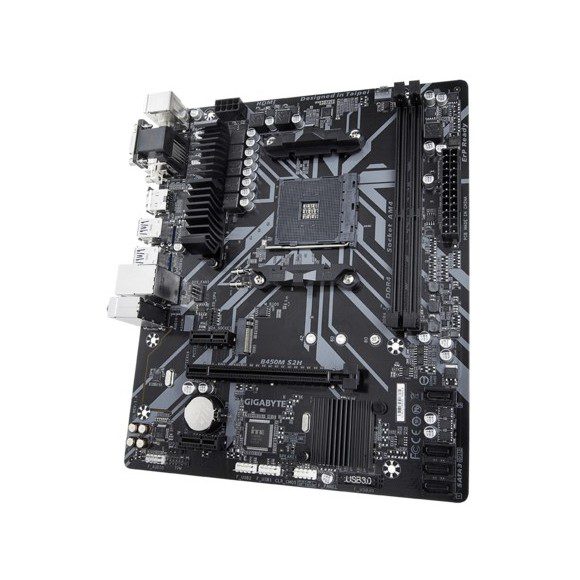

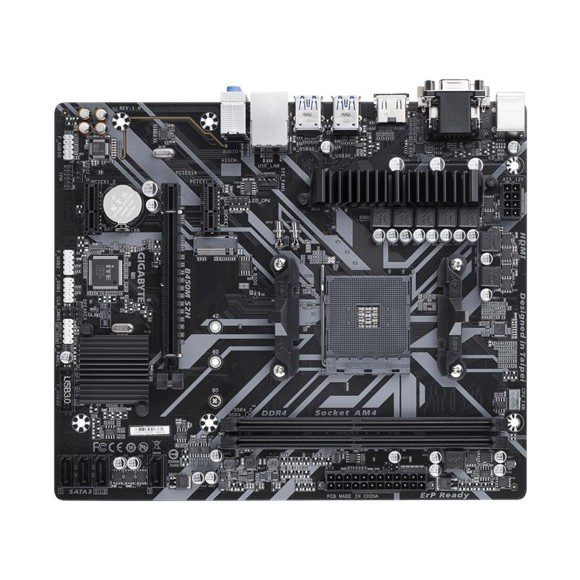

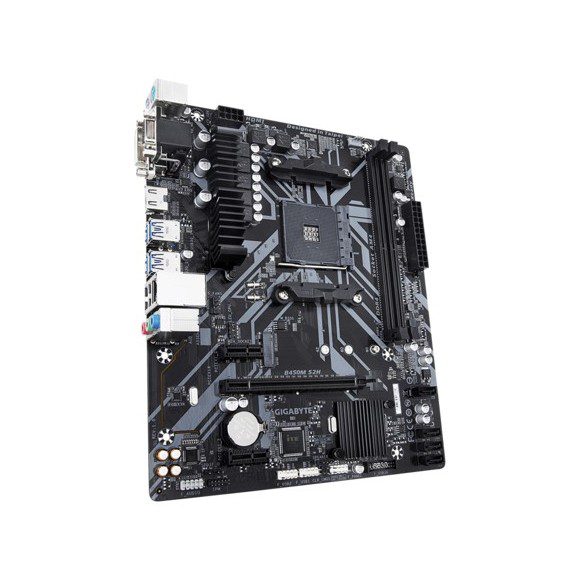

Gigabyte B450M-S2H AMD B450 Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design Price in Pakistan
LEARN MORE ABOUT THE GIGABYTE B450M S2H
Model
| Brand |
GIGABYTE |
| Model |
B450M S2H |
Supported CPU
| CPU Socket Type |
AM4 |
| CPU Type |
AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors |
Chipsets
| Chipset |
AMD B450 |
Memory
| Number of Memory Slots |
2x288pin (DDR4) |
| Memory Standard |
DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 |
| Maximum Memory Supported |
32GB |
| Channel Supported |
Dual Channel |
Expansion Slots
| PCI Express 3.0 x16 |
1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
| PCI Express x1 |
2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
Storage Devices
| SATA 6Gb/s |
4 x SATA 6Gb/s |
| M.2 |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon 200-series / 7th Generation A-series or Athlon APU. |
Onboard Video
| Onboard Video Chipset |
Supported only by CPU with integrated graphic: 1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] 1 x DVI-D port, supporting a maximum resolution of 1920×[email protected] * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×[email protected]* * Support for HDMI 2.0 version and HDCP 2.2.* Maximum shared memory of 2GB * Actual support may vary by CPU. |
Onboard LAN
| LAN Chipset |
Realtek GbE LAN chip |
| Max LAN Speed |
10/100/1000Mbps |

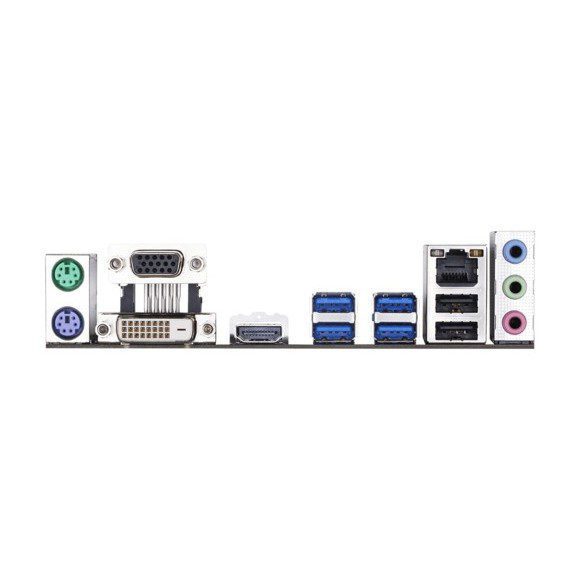

Rear Panel Ports
| PS/2 |
1 x PS/2 keyboard port 1 x PS/2 mouse port |
| Video Ports |
1 x D-Sub port 1 x DVI-D port |
| HDMI |
1 x HDMI |
| RJ45 |
1 xRJ45 |
| USB 3.1 |
4 x USB 3.1 Gen 1 ports |
| USB 1.1/2.0 |
2 x USB 2.0 |
| Audio Ports |
3 Ports |
Internal I/O Connectors
| Onboard USB |
1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers |
Physical Spec
| Form Factor |
Micro ATX |
| LED Lighting |
RGB |
| Dimensions (W x L) |
9.6″ x 8.1″ |
| Power Pin |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
