    Highlights

    • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
    • Ultra Durable™ PCIe 3.0 x16 Slot
    • NVMe PCIe 3.0 M.2 Connectors
    • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
    • GbE LAN with Bandwidth Management
    • Rear DisplayPort and HDMI for Multi-display Support
    • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Anti-Sulfur Resistors Design

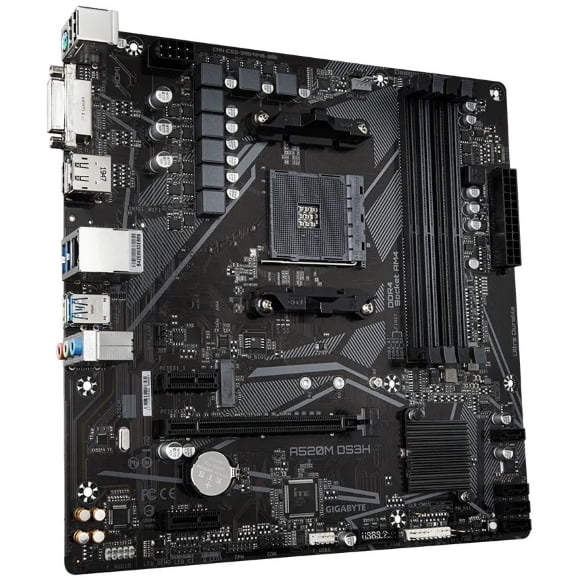

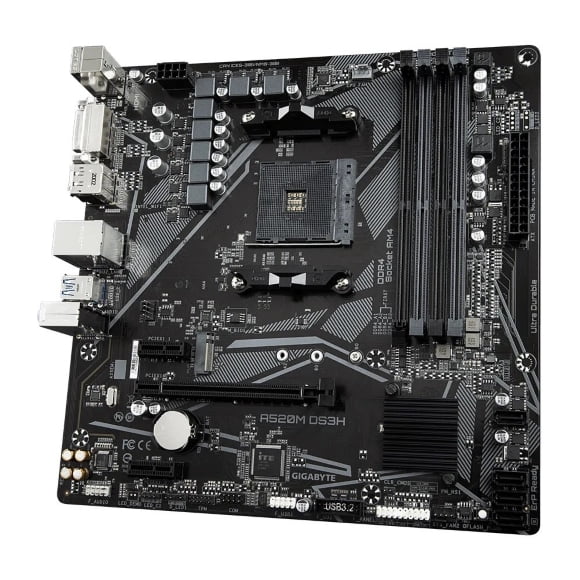

    Gigabyte A520M DS3H Pure Digital VRM Solution DDR4 Motherboard

    ₨24,500.00

    Highlights

    • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
    • Ultra Durable™ PCIe 3.0 x16 Slot
    • NVMe PCIe 3.0 M.2 Connectors
    • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
    • GbE LAN with Bandwidth Management
    • Rear DisplayPort and HDMI for Multi-display Support
    • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Anti-Sulfur Resistors Design

    Payment Methods:

    • We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • ZAH Express - (SAME-DAY DELIVERY)

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities - Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities - Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • Warranty Details
    More details
    • Returns & Exchange
    More details

    • We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • ZAH Express – (SAME-DAY DELIVERY)

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
    • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
    • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
    • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
    • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

    You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

    • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
    • The item(s) does not match the original specifications or is different from what you ordered.

    To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

    For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

    Returns:

    If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

    Refund Policy:

    In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

    SPECIFICATION

    Gigabyte A520M DS3H Pure Digital VRM Solution DDR4 Motherboard Price in Pakistan

    CPU

    		 1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
    (Please refer “CPU Support List” for more information.)

    Chipset

    		 1. AMD A520

    Memory

    		 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer “Memory Support List” for more information.)

    Onboard Graphics

    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB

    Audio

    		 1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    LAN

    		 1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)

    Expansion Slots

    1 x PCI Express x16 slot, integrated in the CPU:
    1. Supporting PCIe 3.0 x16 mode
    1 x PCI Express x1 slot, integrated in the Chipset:
    1. Supporting PCIe 3.0 x1 mode

    Storage Interface

    1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Supporting for RAID 0, RAID 1, and RAID 10

    USB

    CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

    Internal I/O Connectors

    		 1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 1 x USB 2.0/1.1 header
    11. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    12. 1 x Clear CMOS jumper

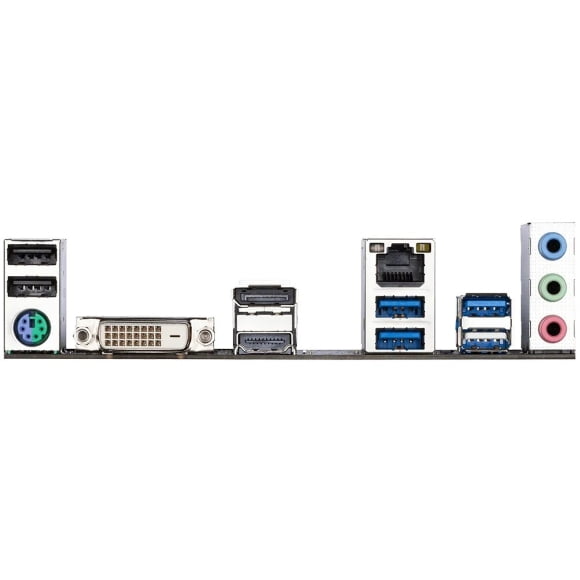

    Back Panel Connectors

    		 1. 1 x PS/2 keyboard/mouse port
    2. 1 x DisplayPort
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks

    I/O Controller

    		 1. iTE® I/O Controller Chip

    H/W Monitoring

    		 1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

    BIOS

    		 1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features

    		 1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Smart Backup
    System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install

    Bundled Software

    		 1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software

    Operating System

    		 1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit

    Form Factor

    		 1. Micro ATX Form Factor; 24.4cm x 24.4cm
