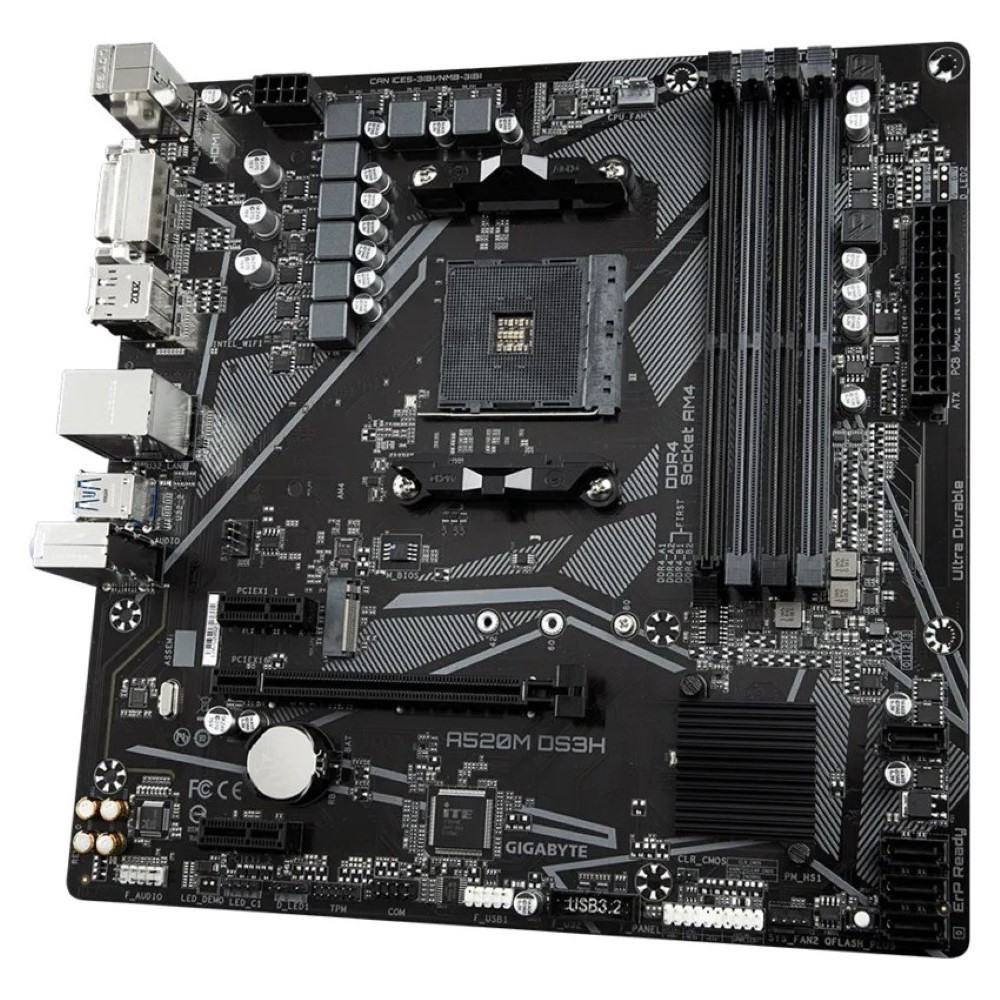

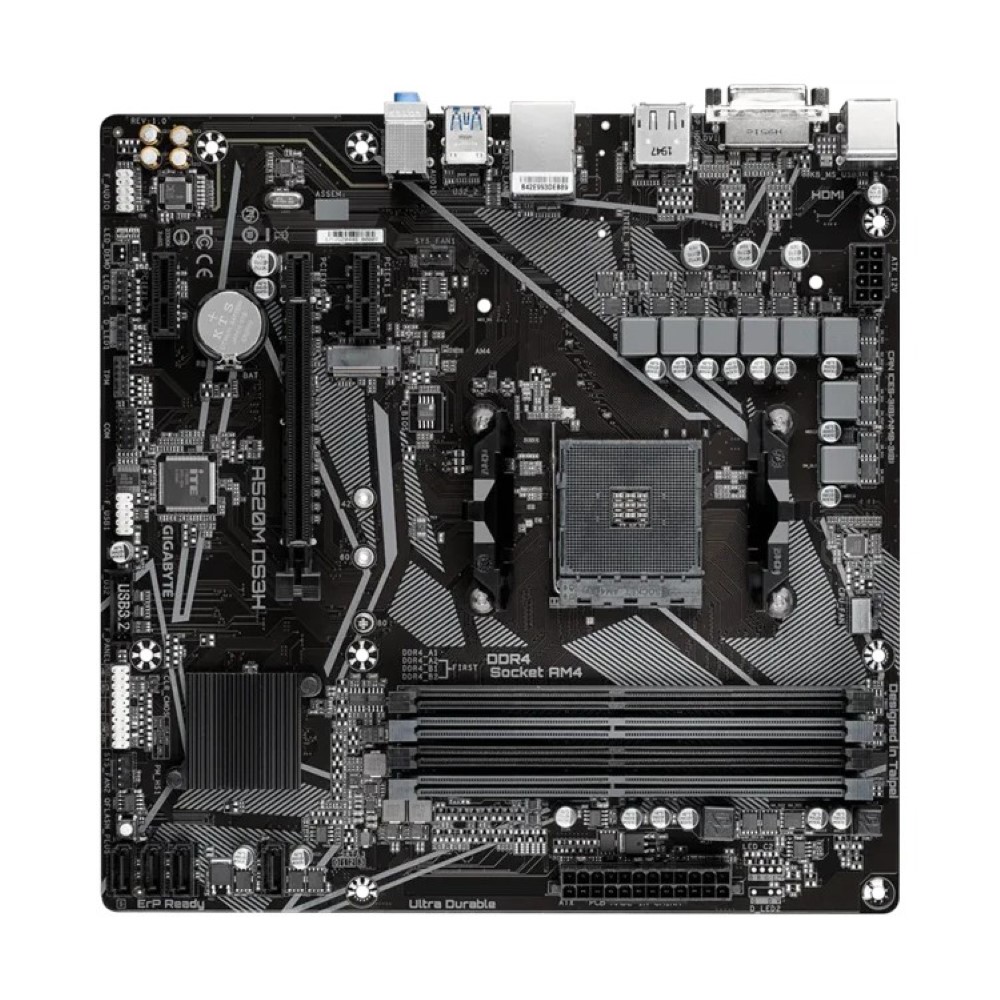

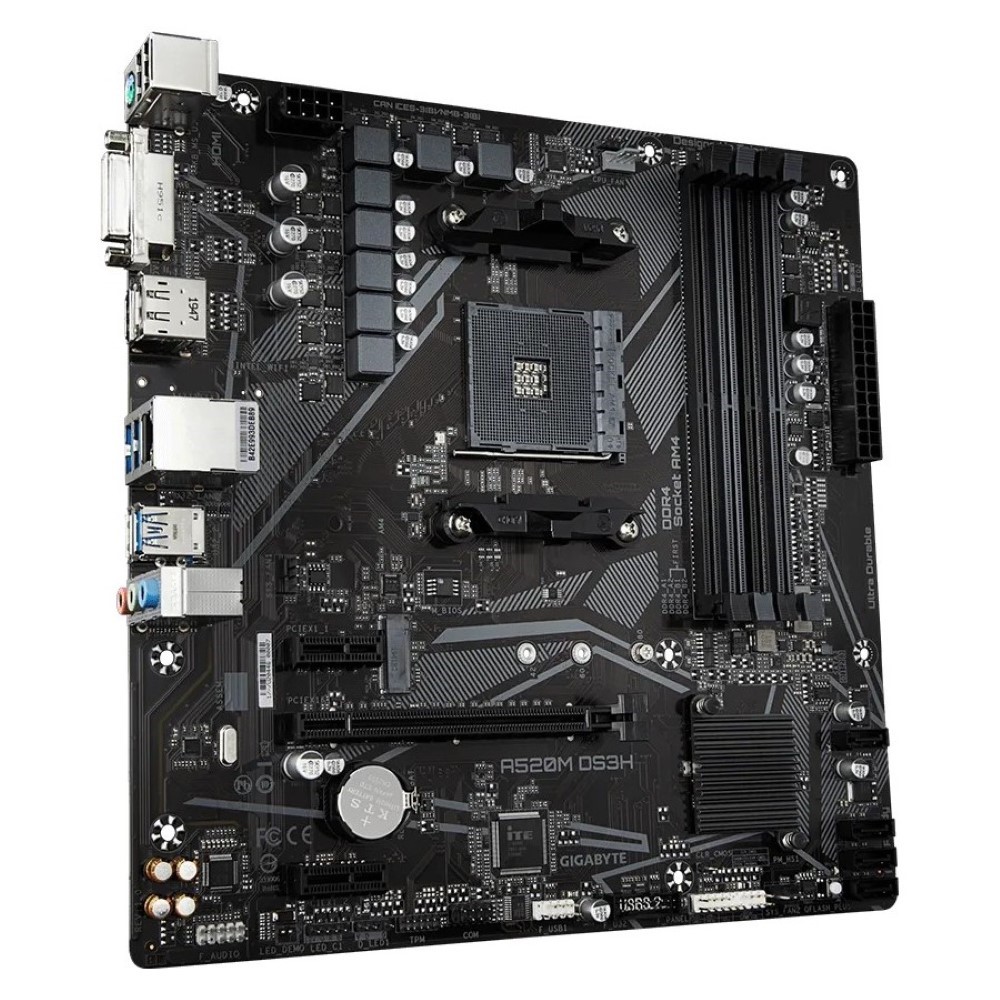

Gigabyte A520M DS3H AMD AM4 MicroATX Motherboard Price in Pakistan

• CPU
• 1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

  (Please refer "CPU Support List" for more information.)

• Chipset
• 1. AMD A520

• Memory
• 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors:
     Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
     Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)

• Onboard Graphics
• Integrated Graphics Processor:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
     * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

  Support for up to 3 displays at the same time
  Maximum shared memory of 16 GB

• Audio
• 1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

• LAN
• 1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots
• CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

  Chipset:

  1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)

• Storage Interface
• CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

  Chipset:

  1. 4 x SATA 6Gb/s connectors
  2. Support for RAID 0, RAID 1, and RAID 10

• USB
• CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors
• 1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 1 x USB 2.0/1.1 header
  13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper
  16. 1 x Q-Flash Plus button

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

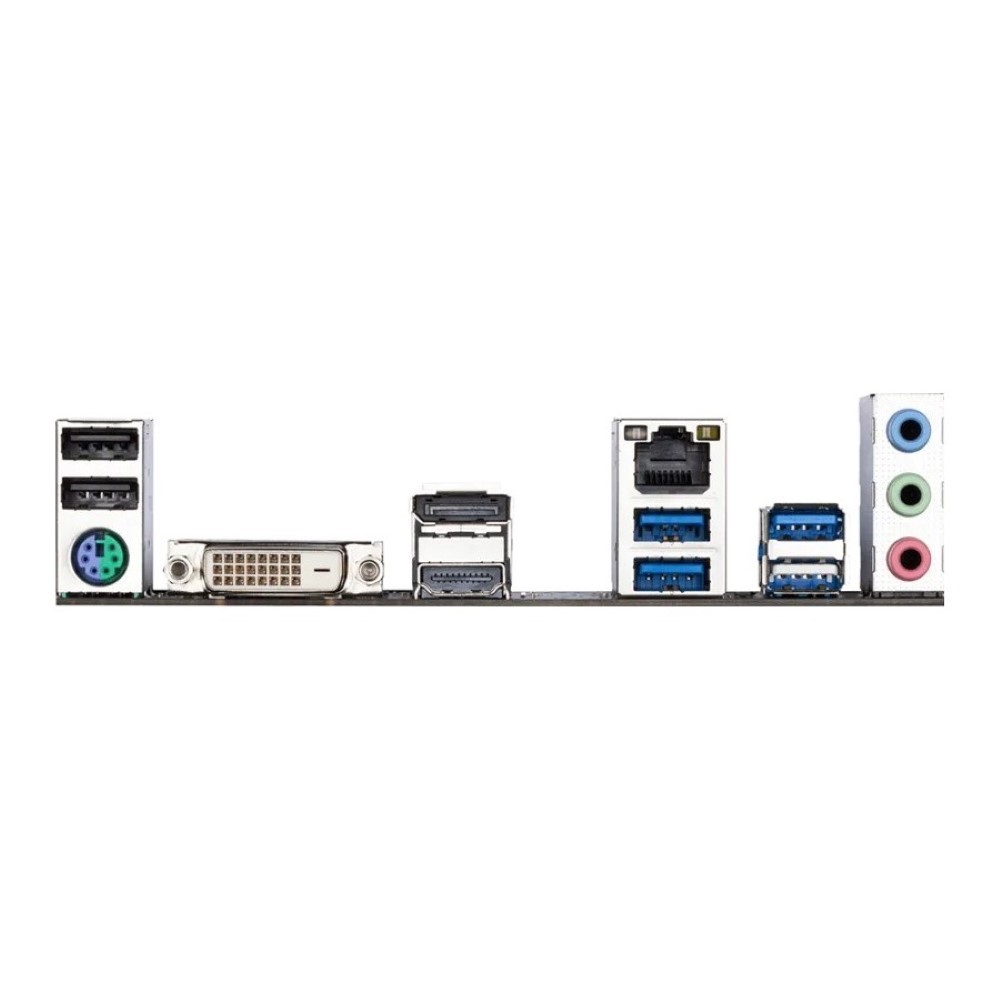

• Back Panel Connectors
• 1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 4 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks

• I/O Controller
• 1. iTE^® I/O Controller Chip

• H/W Monitoring
• 1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS
• 1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features
• 1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash

• Bundled Software
• 1. Norton^® Internet Security (OEM version)
  2. LAN bandwidth management software

• Operating System
• 1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

• Form Factor
• 1. Micro ATX Form Factor; 24.4cm x 24.4cm
