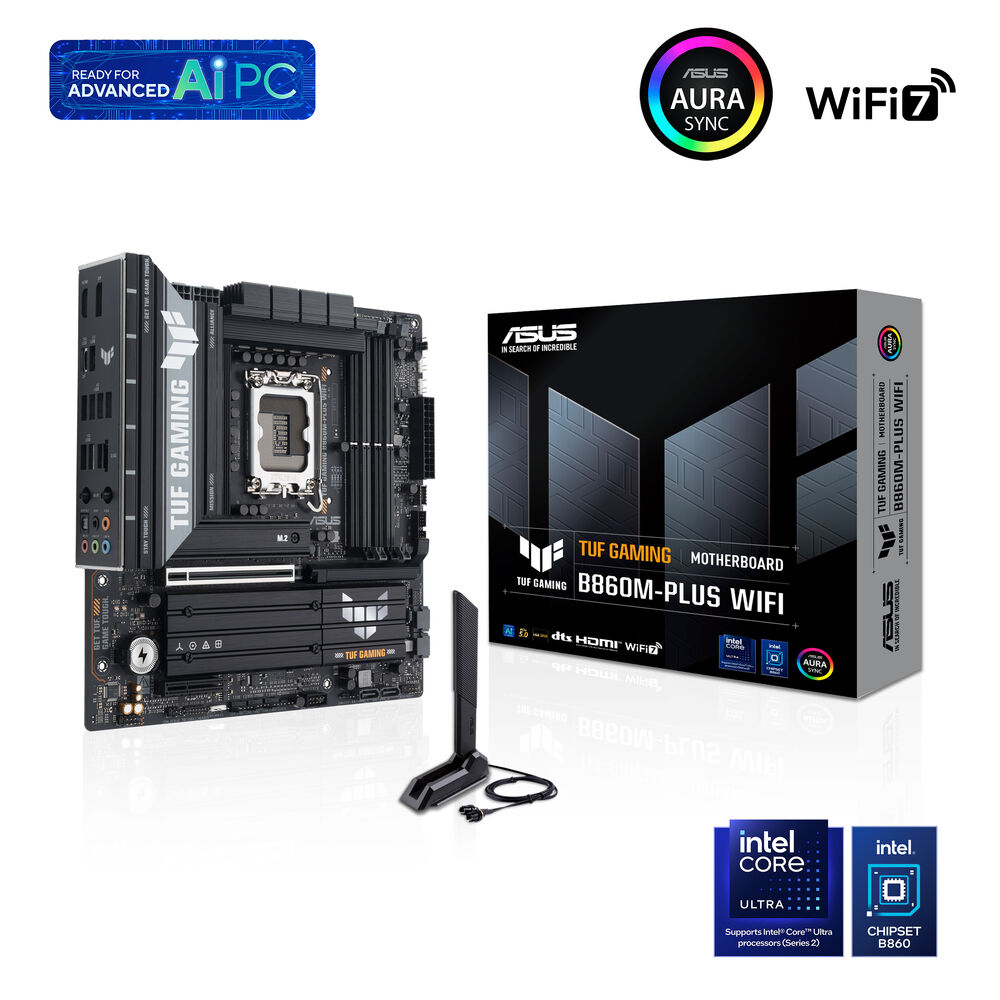

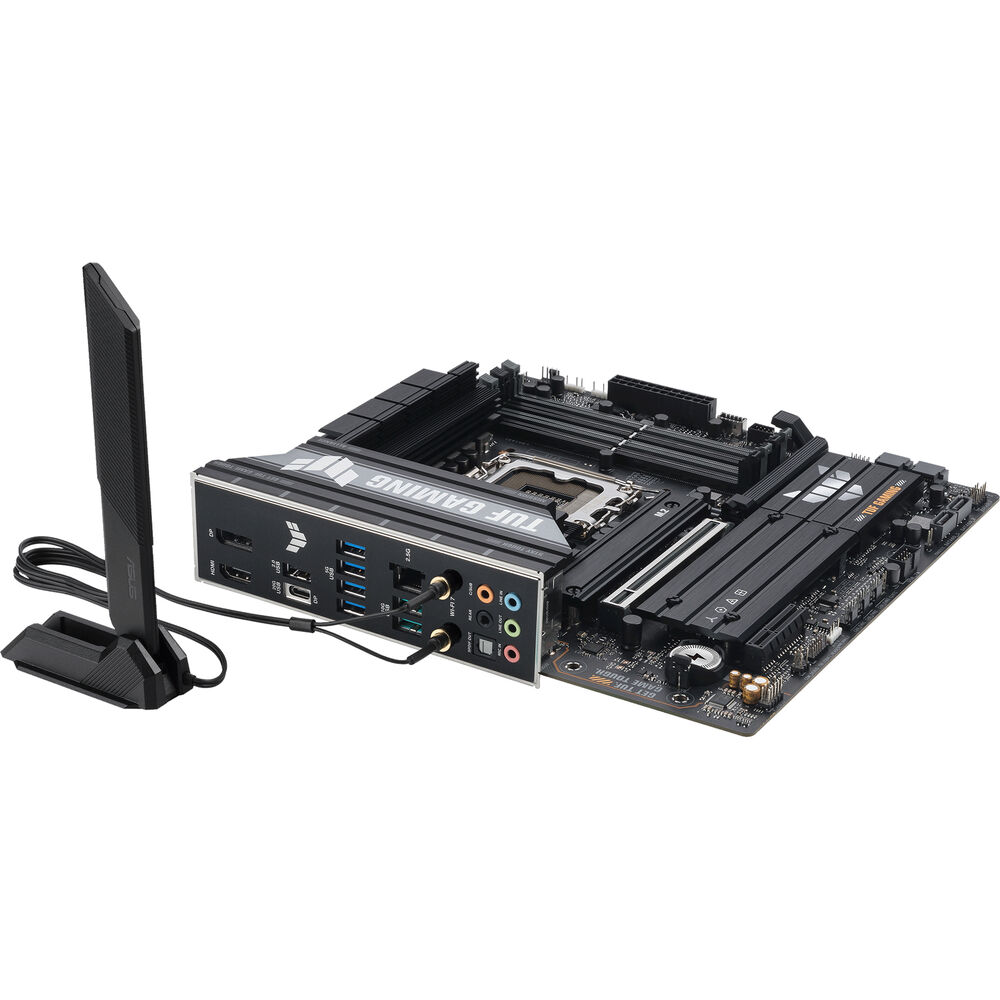

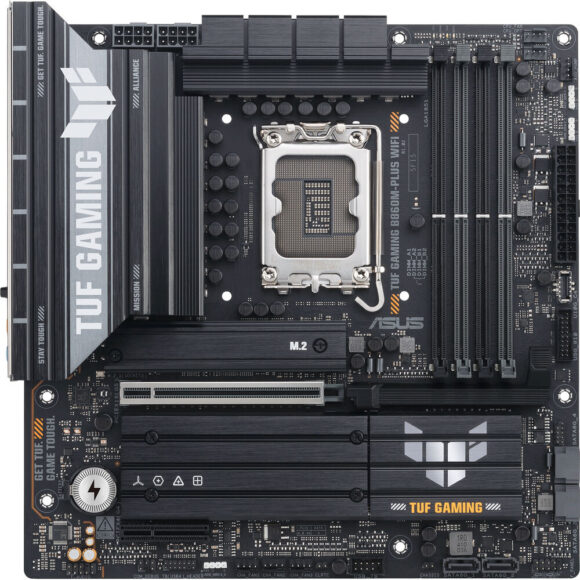

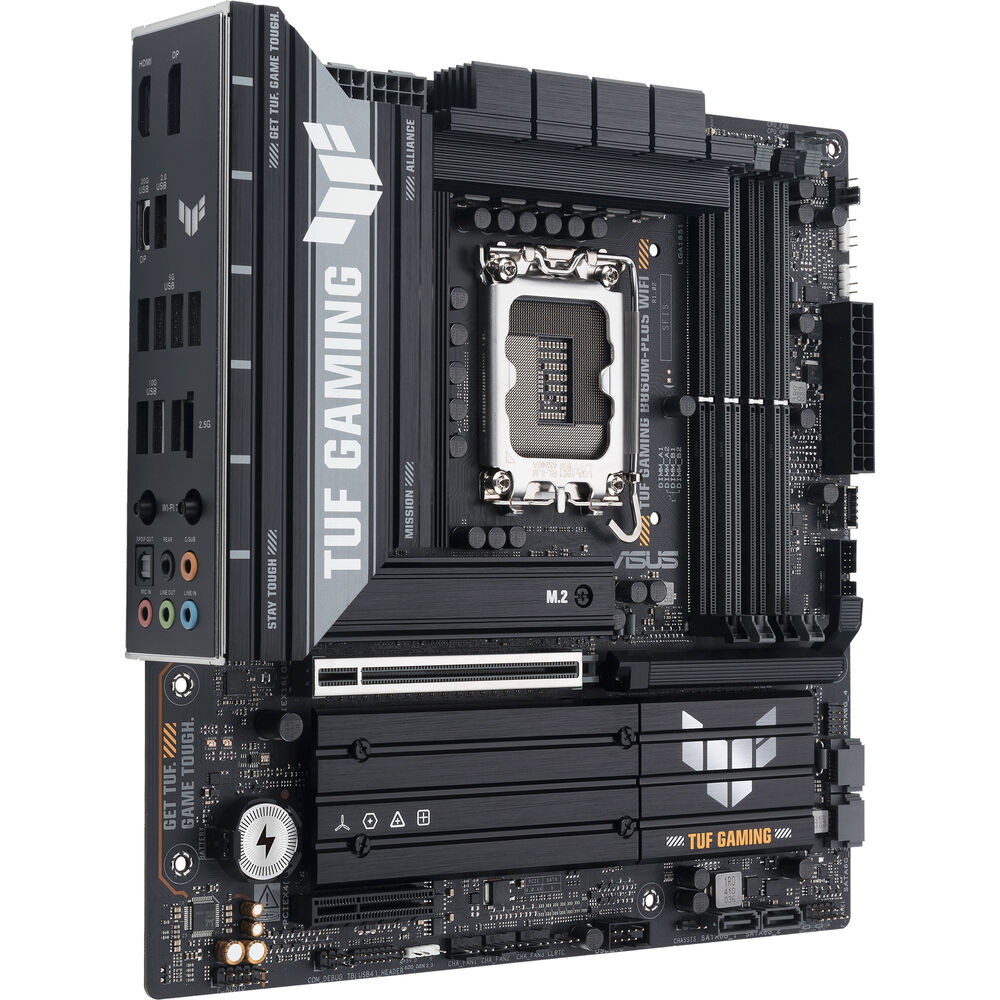

    ASUS TUF GAMING B860M-PLUS WIFI B860 LGA 1851 mATX motherboard, Intel Core Ultra Series 2 Ready, AI PC, 12+1+2+1 80A stages, DDR5 ,PCIe 5.0, 3x M.2, Wi-Fi 7, 2.5G LAN, HDMI, USB 20Gbps Type-C

    ₨65,000.00

    Payment Methods:

    zahcomputers payment methods

    Highlights

    • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
    • Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)
    • Enhanced Power Solution: 12+2+1 80A DrMOS power stages, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
    • Optimized Thermal Design: Large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers and Fan Xpert 4
    • Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with M.2 heatsink
    • Ultrafast Connectivity: PCIe 5.0 x16 slot, rear USB 20Gbps Type-C port with DP Alt mode, front USB 10Gbps Type-C connector
    • High-Performance Networking: On-board Wi-Fi 7 (802.11be) and Realtek 2.5 Gb Ethernet
    • DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack and Pre-mounted I/O shield
    Warranty

    2 Years

    • mappk We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • Zahcomputers.pk1200 ZAH Express – Within 24 Hours

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • leopard Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
    • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
    • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
    • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
    • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

    You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

    • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
    • The item(s) does not match the original specifications or is different from what you ordered.

    To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

    For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

    Returns:

    If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

    Refund Policy:

    If an order is canceled for any reason, the refund will be processed within 3 to 4 days. In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected]k or call 021-32277661 or Whatsapp: 0325 7033554 within the specified time frame.

    ASUS TUF GAMING B860M-PLUS WIFI B860 LGA 1851 mATX motherboard, Intel Core Ultra Series 2 Ready, AI PC, 12+1+2+1 80A stages, DDR5 ,PCIe 5.0, 3x M.2, Wi-Fi 7, 2.5G LAN, HDMI, USB 20Gbps Type-C Price in Pakistan Specs

    Model
    Brand ASUS
    Model TUF GAMING B860M-PLUS WIFI
    Part Number 90MB1JV0-M0AAY0
    Supported CPU
    CPU Socket Type  LGA 1851
    CPU Type Intel Core Ultra Processors (Series 2)
    Chipsets
    Chipset  Intel B860
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard Up to 8800+ MT/s (OC)
    Maximum Memory Supported 192GB
    Channel Supported  Dual Channel
    Memory Feature Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
    Dual Channel Memory Architecture
    DIMM Fit
    Supports Intel Extreme Memory Profile (XMP) memory module
    ASUS Enhanced Memory Profile III(AEMPIII)

    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
    Expansion Slots
    PCI Express 5.0 x16 Intel Core Ultra Processors(series 2)
    1 x PCIe 5.0 x16 slot
    PCI Express x4 Intel B860 Chipset
    1 x PCIe 4.0 x4 slot
    Storage Devices
    SATA 6Gb/s  4 x SATA 6Gb/s
    M.2 Intel Core Ultra Processors(series 2)*
    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
    Intel B860 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    SATA RAID * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
    Onboard Audio
    Audio Channels  Realtek 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Dedicated audio PCB layers
    Onboard LAN
    Max LAN Speed 2.5Gbps
    Wireless LAN Wi-Fi 802.11 be
    Bluetooth Bluetooth 5.4

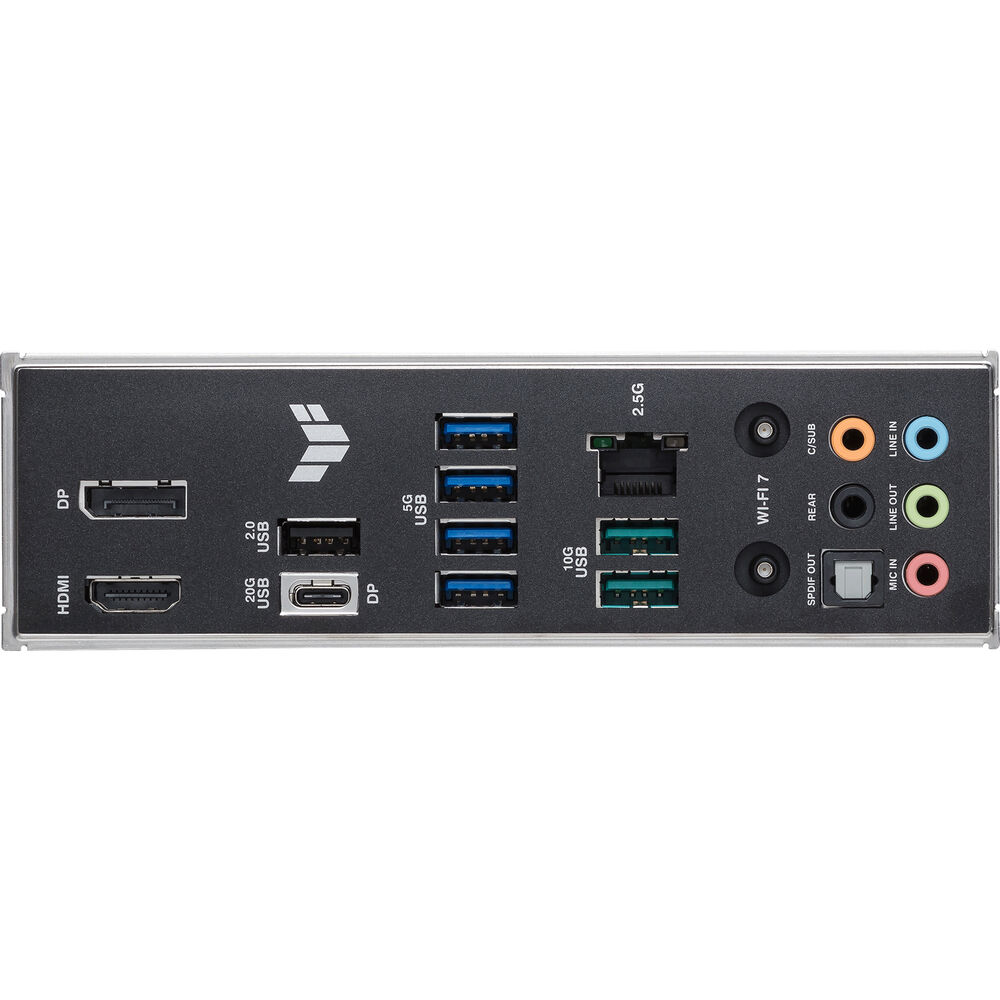

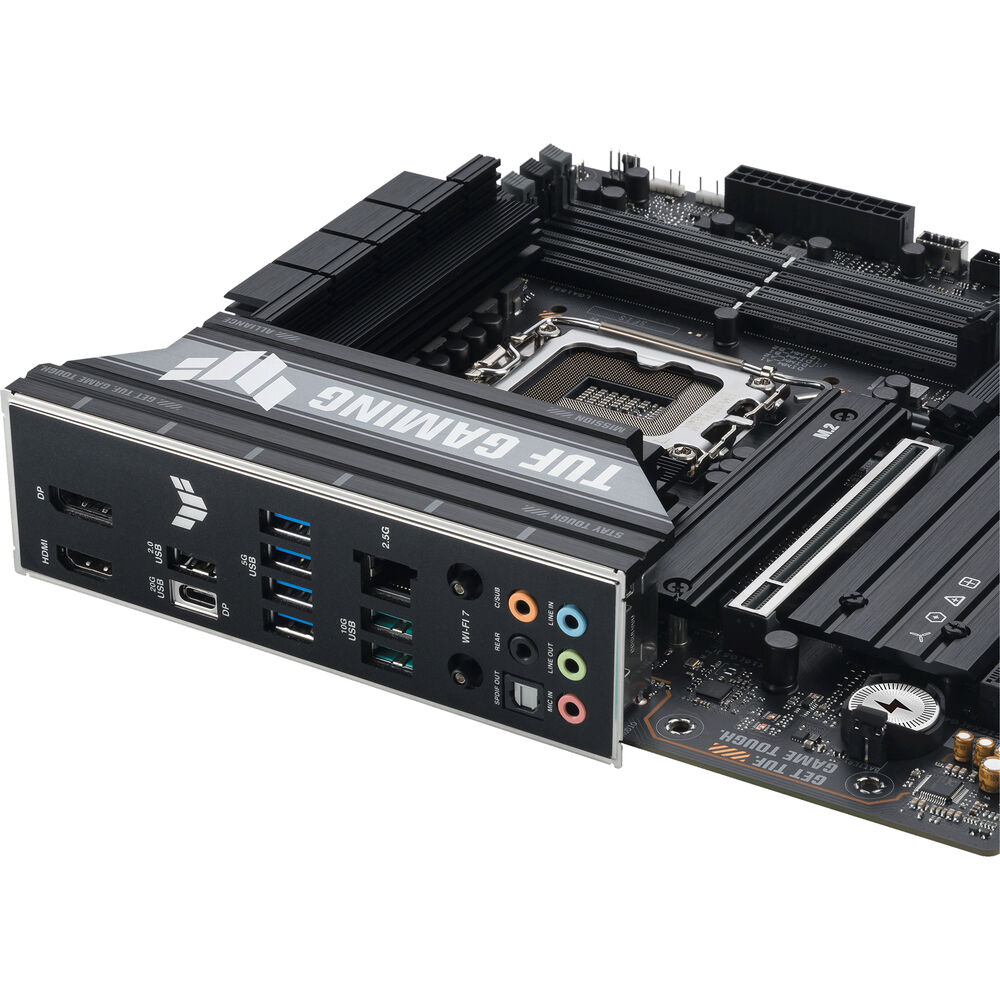

    Rear Panel Ports
    Back I/O Ports 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
    2 x USB 10Gbps ports (2 x Type-A)
    4 x USB 5Gbps ports (4 x Type-A)
    1 x USB 2.0 port (1 x Type-A)
    1 x DisplayPort
    1 x HDMI port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    Internal I/O Connectors
    Onboard USB 1 x USB 10Gbps connector (supports USB Type-C)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    1 x USB 2.0 header supports 2 additional USB 2.0 ports
    Other Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers

    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x Chassis Intrusion header
    1 x Front panel audio header (F_AUDIO)
    1 x 10-1 pin Front System Panel header
    1 x Thunderbolt (USB4) header
    Software Feature
    BIOS Feature 2 x 128 Mb Flash ROM, UEFI AMI BIOS
    Software ASUS Exclusive Software
    Armoury Crate
    – AURA Creator
    – AURA Sync
    – Fan Xpert 2+
    – Power Saving
    ASUS DriverHub
    ASUS GlideX
    TurboV Core
    TUF GAMING CPU-Z
    DTS Audio Processing
    Norton 360 for Gamers (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash
    – ASUS UEFI BIOS EZ Mode
    – ASUS MyHotkey
    NPU Boost
    Windows 11 Windows 11
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6″ x 9.6″
    Power Pin 1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connectors
    Features
    Features ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot
    – Stainless-steel back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – PCIe Slot Q-Release
    – Q-Antenna
    – Q-Dashboard
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    ASUS Thermal Solution
    – M.2 heatsinks
    – VRM heatsink design
    ASUS EZ DIY
    – CPU Socket lever protector
    – ProCool
    – Pre-mounted I/O shield
    – SafeDIMM
    AURA Sync
    – Addressable Gen 2 headers
