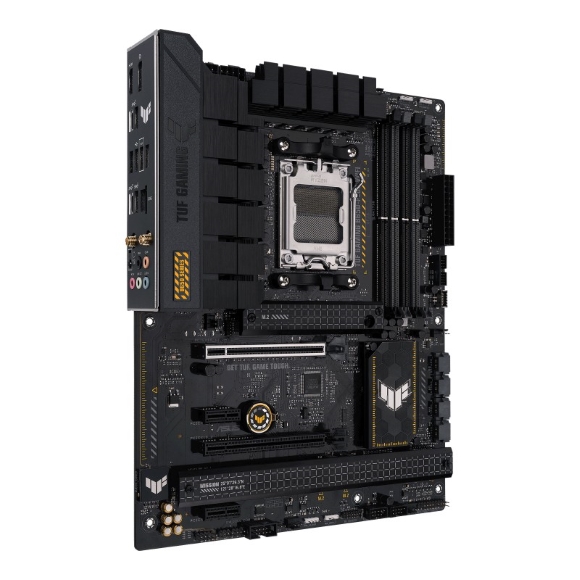

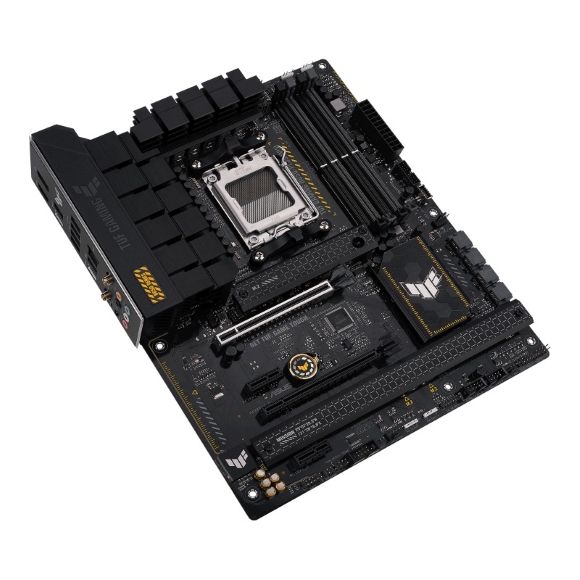

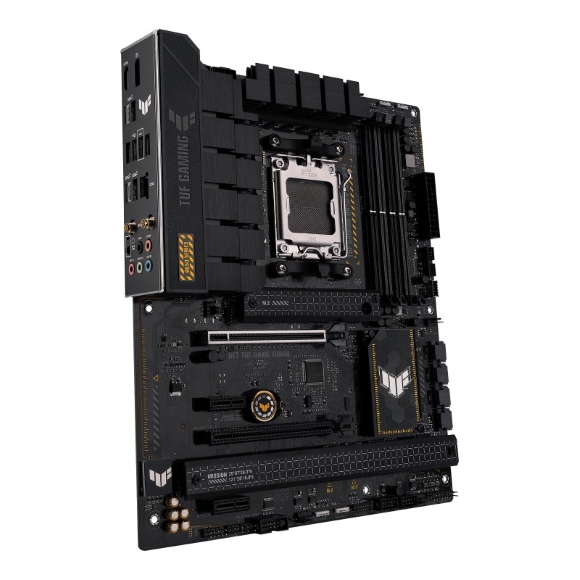

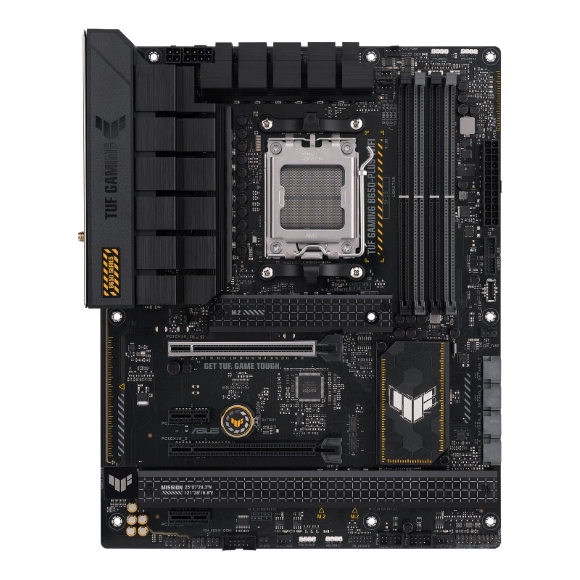

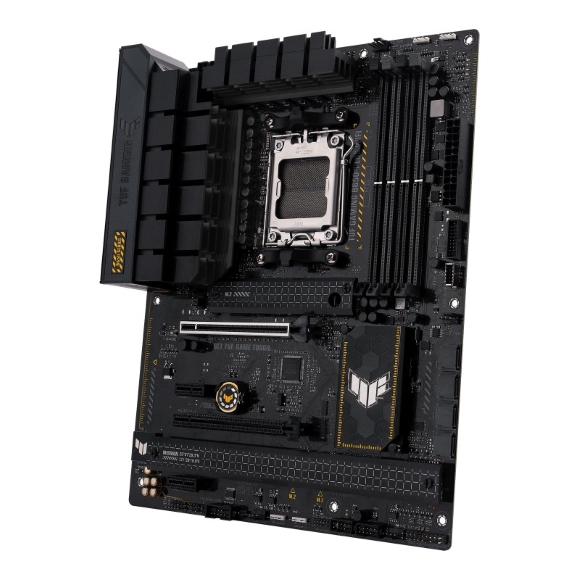

    ASUS TUF GAMING B650-PLUS WIFI DDR5 ATX Gaming Motherboard

    ₨59,990.00

    Payment Methods:

    zahcomputers payment methods

    Highlights

    • AM5 Socket: Ready for AMD Ryzen Desktop 9000*, 8000, and 7000 Series Processors
    • BIOS Update maybe required when used with AMD Ryzen Desktop 9000 and 8000 Series CPU Processors
    • Enhanced power solution: 12+2 teamed power stages, 8+4 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
    • Next-gen connectivity: M.2 PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 1 Type-C, USB4 support
    • Made for online Gaming: WiFi 6, Realtek 2.5 Gb Ethernet and TUF LANGuard
    • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
    • Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
    • Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.
    • BIOS FlashBack is the simplest and safest (UEFI) BIOS update method.
    Warranty

    1 Year

    • mappk We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • Zahcomputers.pk1200 ZAH Express – Within 24 Hours

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • leopard Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
    • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
    • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
    • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
    • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

    You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

    • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
    • The item(s) does not match the original specifications or is different from what you ordered.

    To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

    For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

    Returns:

    If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

    Refund Policy:

    In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

    ASUS TUF GAMING B650-PLUS WIFI DDR5 ATX Gaming Motherboard Price in Pakistan

    Best Seller Ranking #73 in AMD Motherboards
    Model
    Brand ASUS
    Series TUF
    Model TUF GAMING B650-PLUS WIFI
    Part Number 90MB1BZ0-M0AAY0
    Supported CPU
    CPU Socket Type  AM5
    CPU Type Supports AMD Ryzen 7000 Series Desktop Processors*

    * Refer to www.asus.com for CPU support list.
    Chipsets
    Chipset  AMD B650
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800

    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
    Maximum Memory Supported 256GB
    Channel Supported  Dual Channel
    ECC Supported Non-ECC
    Buffer Supported Un-buffered
    Memory Feature Supports AMD EXTended Profiles for Overclocking (EXPO)
    OptiMem II
    Expansion Slots
    PCI Express 4.0 x16 AMD Ryzen 7000 Series Desktop Processors*
    1 x PCIe 4.0/3.0 x16 slot(s)

    AMD B650 Chipset
    1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)

    * Please check PCIe bifurcation table on ASUS support site
    PCI Express x1 2 x PCIe 4.0/3.0 x1 slots
    Storage Devices
    SATA 6Gb/s  4 x SATA 6Gb/s
    M.2 AMD Ryzen 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    AMD B650 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**

    ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.
    SATA RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
    Onboard Audio
    Audio Channels  Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Power pre-regulator reduces power input noise to ensure consistent performance
    – Premium audio capacitors
    – Dedicated audio PCB layers
    – Audio cover
    – Unique de-pop circuit
    * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
    ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Onboard LAN
    Max LAN Speed 1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    Wireless LAN Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth Bluetooth v5.2

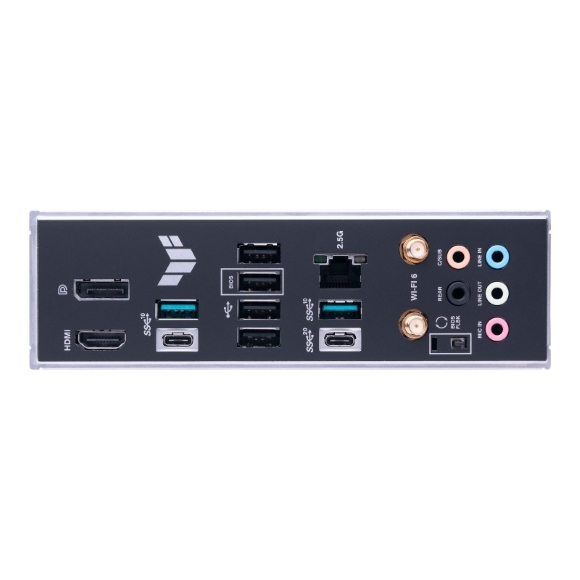

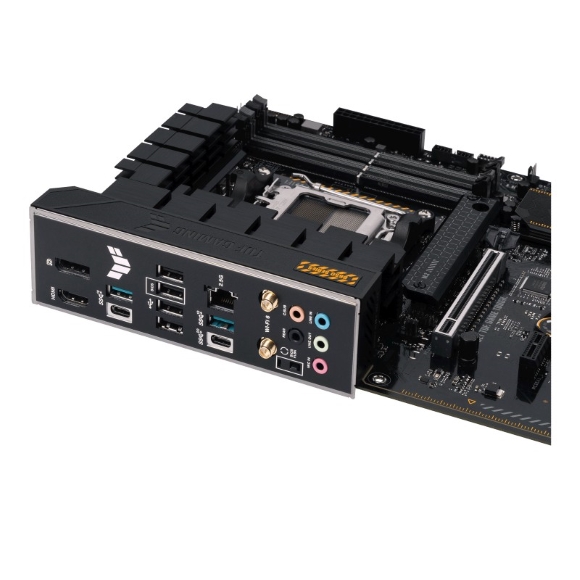

    Rear Panel Ports
    Back I/O Ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)
    3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
    4 x USB 2.0 port(s) (4 x Type-A)
    1 x DisplayPort
    1 x HDMI port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x BIOS FlashBack button
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C )
    1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
    Other Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header(s)
    1 x 4-pin CPU OPT Fan header(s)
    1 x 4-pin AIO Pump header(s)
    4 x 4-pin Chassis Fan header(s)

    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports

    Miscellaneous
    3 x Addressable Gen 2 header(s)
    1 x Aura RGB header(s)
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt header
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0″ x 9.6″
    Power Pin 1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Windows 11 Compatibility
    Windows 11 Supported
    Features
    Features ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack button
    – BIOS FlashBack LED
    – ProCool
    – Pre-mounted I/O shield
    – SafeDIMM
    Aura Sync
    – Aura RGB header(s)
    – Addressable Gen 2 header(s)
    Packaging
    Package Contents Cables
    2 x SATA 6Gb/s cables
    Miscellaneous

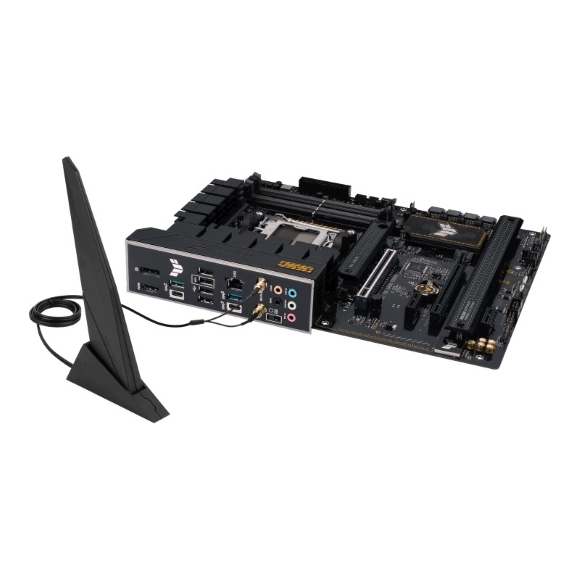

    1 x ASUS Wi-Fi moving antennas
    2 x Rubber Package(s) for M.2
    1 x Screw package(s) for M.2 SSD
    Installation Media
    1 x Support DVD
    Documentation
    1 x TUF Certification card
    1 x User guide
