| Model |

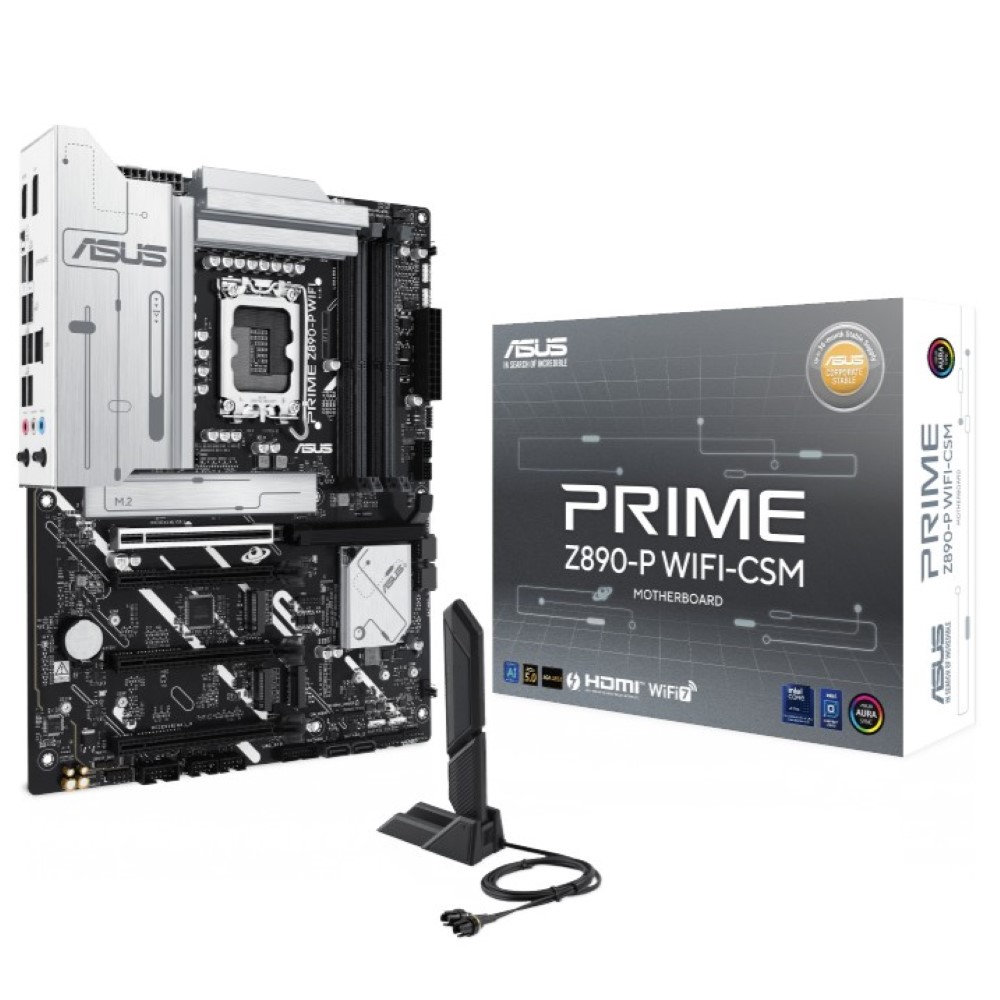

Asus Prime Z890-P WIFI-CSM |
| CPU |
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset |
Intel® Z890 Chipset |
| Memory |
4 x DIMM slots, max. 192GB, DDR5 |
| Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* |
| Dual channel memory architecture |
| DIMM Fit |
| Supports Intel® Extreme Memory Profile (XMP) memory module |
| ASUS Enhanced Memory Profile III(AEMPIII) |
| Graphics |
1 x DisplayPort** |
| 1 x HDMITM port*** |
| 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs**** |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
| *** Supports 4K@60Hz as specified in HDMI 2.1. |
| **** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. |
| **** In DP alt mode, supports up to UHBR20. |
| ***** VGA resolution support depends on processors’ or graphic cards’ resolution. |
| ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Expansion Slots |
Intel® Core™ Ultra Processors (Series 2) |
| 1 x PCIe 5.0 x16 slot |
| Intel® Z890 Chipset |
| 2 x PCIe 4.0 x16 slots (support x4 mode) |
| 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| Intel® Core™ Ultra Processors (Series 2) |
| M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Intel® Z890 Chipset |
| M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| Ethernet |
1 x Realtek 2.5Gb Ethernet |
| ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 7* |
| 2×2 Wi-Fi 7 (802.11be) |
| Supports 2.4/5/6GHz frequency band** |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Bluetooth® v5.4*** |
| *Wi-Fi features may vary depending on the operating system |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
| For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details. |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| USB |
Rear USB (Total 8 ports) |
| 1 x Thunderbolt™ 4 port (1 x USB Type-C®) |
| 1 x USB 10Gbps port (1 x Type-A) |
| 2 x USB 5Gbps ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A)** |
| Front USB (Total 9 ports) |
| 1 x USB 10Gbps connector (supports USB Type-C®) |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports** |
| * USB Type-C® power delivery output: max. 5V/3A |
| ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
| ** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth. |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| – Supports: Jack-detection, |
| Multi-streaming, Front Panel Jack-retasking |
| – Supports up to 24-Bit/192 kHz playback |
| Audio Features |
| – Audio Shielding |
| – Premium audio capacitors |
| – Dedicated audio PCB layers |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports |
1 x Thunderbolt™ 4 USB Type-C® port |
| 1 x USB 10Gbps port (1 x Type-A) |
| 2 x USB 5Gbps ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMITM port |
| 1 x Wi-Fi module |
| 1 x Realtek 2.5Gb Ethernet port |
| 3 x Audio jacks |
| 1 x BIOS FlashBack™ button |
| Internal I/O Connectors |
Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 4 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V CPU Power connector |
| Storage related |
| 4 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 10Gbps connector (supports USB Type-C®) |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen2 headers |
| 1 x Aura RGB header |
| 1 x Clear CMOS header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (F_AUDIO) |
| 1 x S/PDIF Out header |
| 1 x SPI TPM header (14-1pin) |
| 1 x 10-1 pin Front Panel System header |
| 1 x Thunderbolt™ (USB4®) header |
| Special Features |
ASUS 5X PROTECTION III |
| – DIGI+ VRM (- Digital power design with DrMOS) |
| – LANGuard |
| – Overvoltage Protection |
| – SafeSlot |
| – Stainless-Steel Back I/O |
| ASUS Q-Design |
| – M.2 Q-Latch |
| – PCIe Slot Q-Release |
| – Q-Antenna |
| – Q-Dashboard |
| – Q-DIMM |
| – Q-LED Core |
| – Q-Slot |
| ASUS Thermal Solution |
| – M.2 heatsink |
| – VRM heatsink design |
| ASUS EZ DIY |
| – BIOS FlashBack™ button |
| – BIOS FlashBack™ LED |
| – ProCool |
| – Pre-mounted I/O shield |
| Aura Sync |
| – Aura RGB header |
| – Addressable Gen2 headers |
| BIOS |
256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Operating System |
Windows 11 (22H2 & later) |
| Form Factor |
ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
