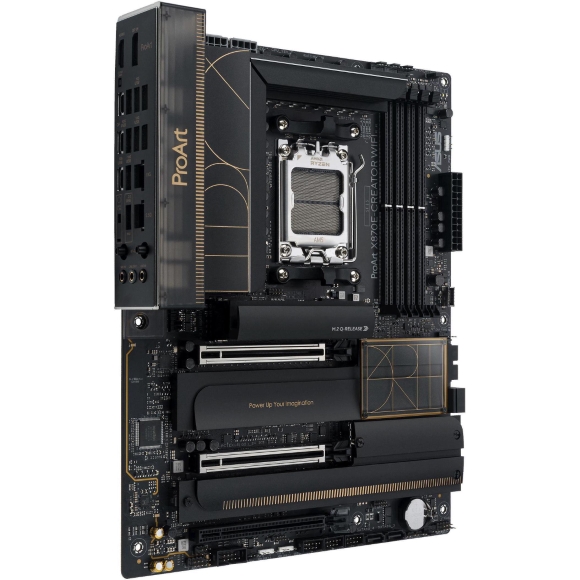

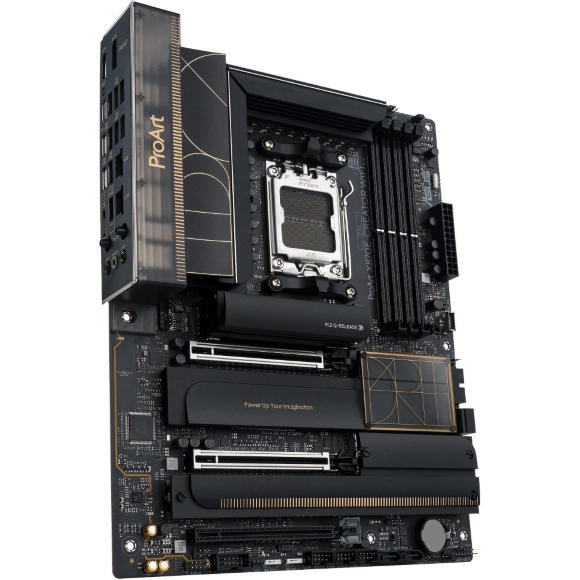

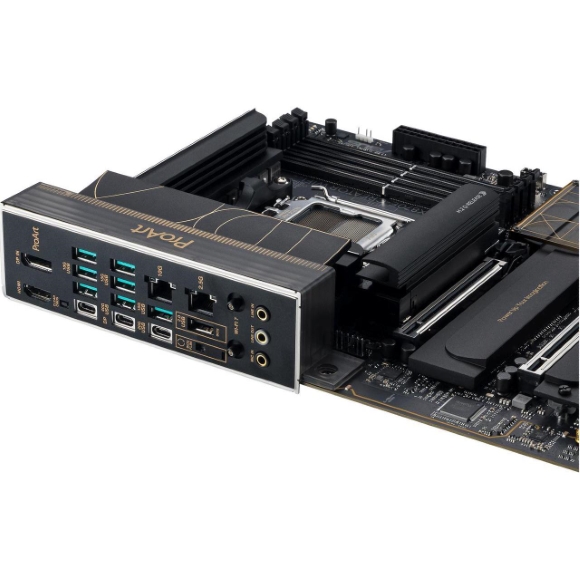

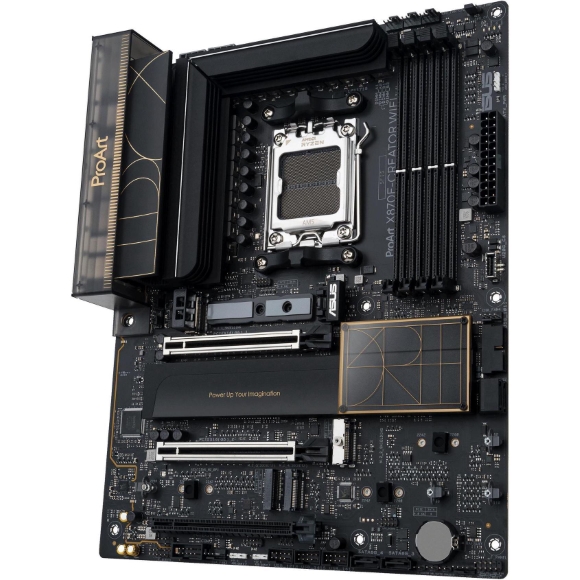

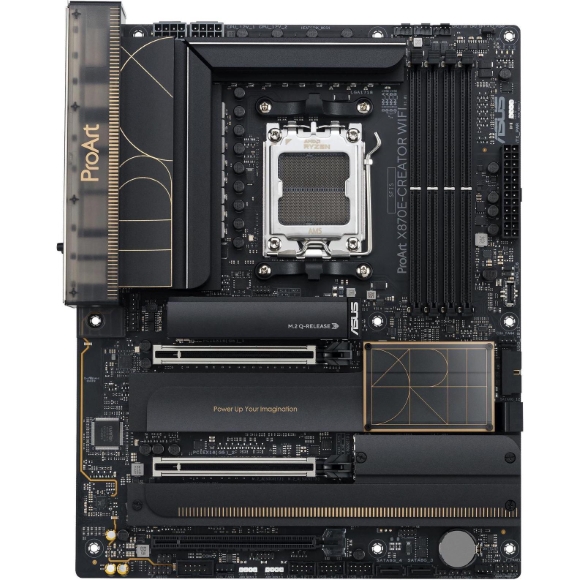

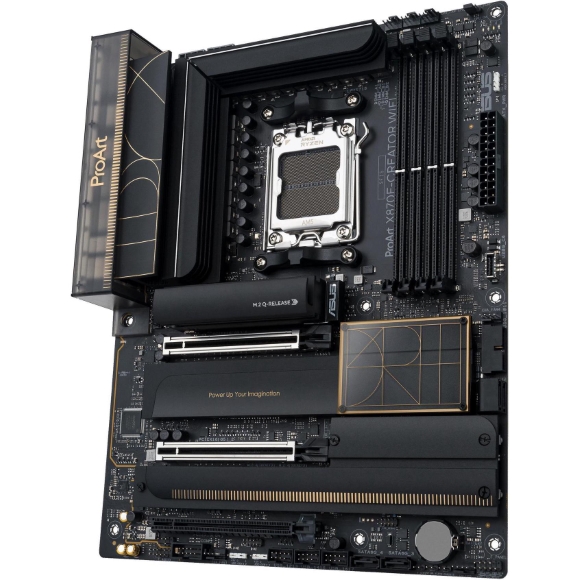

    ASUS ProArt X870E-CREATOR WIFI AMD AM5 X870E ATX Motherboard

    ₨205,000.00

    Payment Methods:

    zahcomputers payment methods

    Highlights

    • Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
    • AMD AM5 socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
    • Robust performance: 16+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
    • Future-proofed connectivity: Dual USB4® ports, 10 Gb & 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, two PCIe® 5.0 and two PCIe 4.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+
    • Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling and AI Networking II, Dynamic OC Switcher, and Core Flex
    • DIY-Friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack™, Q-Connector

    Warranty: 1 Year

    Warranty

    1 Year

    • mappk We Deliver All Over Pakistan

    We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

    • Zahcomputers.pk1200 ZAH Express – Within 24 Hours

    Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

    • leopard Leopards Courier

    We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

    • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
    • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
    • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

    Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
    At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

    • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
    • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
    • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
    • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
    • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

    You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

    • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
    • The item(s) does not match the original specifications or is different from what you ordered.

    To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

    For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

    Returns:

    If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

    Refund Policy:

    In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

    ASUS ProArt X870E-CREATOR WIFI AMD AM5 X870E ATX Motherboard Price in Pakistan


    Best Seller Ranking #48 in AMD Motherboards
    Model
    Brand ASUS
    Model ProArt X870E-CREATOR WIFI
    Part Number 90MB1IG0-M0AAY0
    Supported CPU
    CPU Socket Type  AM5
    CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
    Chipsets
    Chipset  AMD X870
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard DDR5 4400
    Maximum Memory Supported 256GB
    ECC Supported Yes
    Buffer Supported Un-buffered
    Memory Feature Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO)
    OptiMem II
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
    Expansion Slots
    PCI Express 5.0 x16 AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
    2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**

    ** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
    PCI Express 4.0 x16 AMD X870 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    Storage Devices
    SATA 6Gb/s  4 x SATA 6Gb/s
    M.2 AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**

    AMD X870 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    ** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
    SATA RAID *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
    Onboard Audio
    Audio Chipset  Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
    – Impedance sense for front and rear headphone outputs
    – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    – Supports up to 32-Bit/192 kHz playback*
    Audio Features
    – Audio Shielding
    – Premium audio capacitors
    – Dedicated audio PCB layers
    – Unique de-pop circuit
    * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
    ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Audio Channels  7.1 Channels
    Onboard LAN
    Max LAN Speed 1 x Marvell AQtion 10Gb Ethernet
    1 x Intel 2.5Gb Ethernet
    ASUS LANGuard
    Wireless LAN Bluetooth 5.4
    Bluetooth Yes

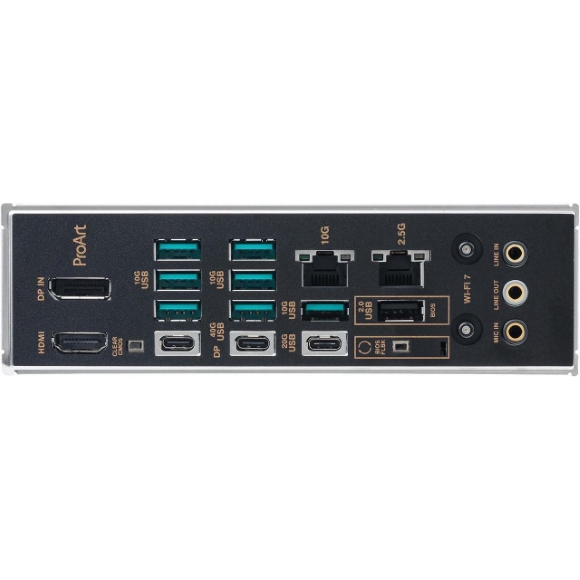

    Rear Panel Ports
    Back I/O Ports 2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
    1 x USB 20Gbps port(s) (1 x USB Type-C)
    7 x USB 10Gbps port(s) (7 x Type-A)
    1 x USB 2.0 port (1 x Type-A)
    1 x DisplayPort (Input only)
    1 x HDMI port
    1 x Wi-Fi Module
    1 x Marvell AQtion 10Gb Ethernet
    1 x Intel 2.5Gb Ethernet
    3 x Audio jacks
    1 x BIOS FlashBack button
    1 x Clear CMOS button
    Internal I/O Connectors
    Onboard USB 1 x USB 20Gbps connector (supports USB Type-C)
    1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
    3 x USB 2.0 headers support 6 additional USB 2.0 ports
    Other Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    5 x 4-pin Chassis Fan headers

    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Chassis Intrusion header
    1 x COM Port header
    1 x CPU Over Voltage jumper
    1 x Front Panel Audio header (F_AUDIO)
    1 x 10-1 pin System Panel header
    1 x Thermal Sensor header
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0″ x 9.6″
    Power Pin 1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connector
    Software Feature
    BIOS Feature 256 Mb Flash ROM, UEFI AMI BIOS
    Features
    Features ASUS 5X PROTECTION III
    – DIGI+ VRM (- Digital power design)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – LANGuard
    – Overvoltage Protection
    – Safeslot
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – M.2 Q-Release
    – M.2 Q-Slide
    – PCIe Slot Q-Release Slim (with PCIe SafeSlot)
    – Q-Antenna
    – Q-Connector
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink backplate
    – M.2 heatsinks
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack button
    – BIOS FlashBack LED
    – ProCool
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM
    AURA Sync
    – Addressable Gen 2 headers
    Bespoke Motherboard Design & Business Focused Features
    – 24/7 Reliability
    – Overcurrent Protection
    Front Panel USB 20Gbps with PD Fast Charge Support
    – Support: up to 30W fast charging and USB Wattage Watcher
    – Output: 5V/9V max. 3A, 12V max 2.5A
    – Compatible with PD3.0
    Packaging
    Package Contents Cables
    1 x DisplayPort cable
    4 x SATA 6Gb/s cables

    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Q-connector
    1 x M.2 Q-Latch package(s)
    1 x M.2 Q-Latch Q-Slide package for M.2 backplate
    2 x Rubber Packages for M.2
    1 x ProArt ruler

    Documentation
    1 x Quick start guide
    1 x ACC Express Activation Key Card
    1 x User guide
