| Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* |
| Supports Intel® 10 nm CPU |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| * Refer to www.asus.com for CPU support list. |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| |
| 4 x DIMM, Max. 192GB, DDR5 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture |
| Supports Intel® Extreme Memory Profile (XMP) |
| OptiMem II |
| * Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. |
| |
| 1 x DisplayPort port*** |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| ** Support 4K@60Hz as specified in HDMI 2.1. |
| *** Support max. 8K@60Hz as specified in DisplayPort 1.4. |
| Intel® 14th & 13th & 12th Gen Processors |
| 1 x PCIe 5.0/4.0/3.0 x16 slot |
| Intel® B760 Chipset* |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| 1 x PCIe 3.0 x1 slot** |
| ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. |
| Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* |
| Intel® 14th & 13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 |
| – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode. |
| Intel® B760 Chipset** |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*** |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| 4 x SATA 6Gb/s ports*** |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. |
| 1 x Realtek 2.5Gb Ethernet |
| 1 x Intel® 1Gb Ethernet |
| ASUS LANGuard |
| M.2 slot only (Key E, CNVi & PCIe)* |
| *Wi-Fi module is sold separately. |
| |
| 1 x USB 3.2 Gen 2 (10G) Type-C® port |
| 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| Front USB (Total 7 ports) |
| 1 x USB 3.2 Gen 2×2 (20G) connector (supports USB Type-C® with 60W PD/QC4+) |
| 1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| – Supports up to 24-Bit/192 kHz playback |
| Audio Features |
| – Premium audio capacitors |
| – Dedicated audio PCB layers |
| – Audio cover |
| – Unique de-pop circuit |

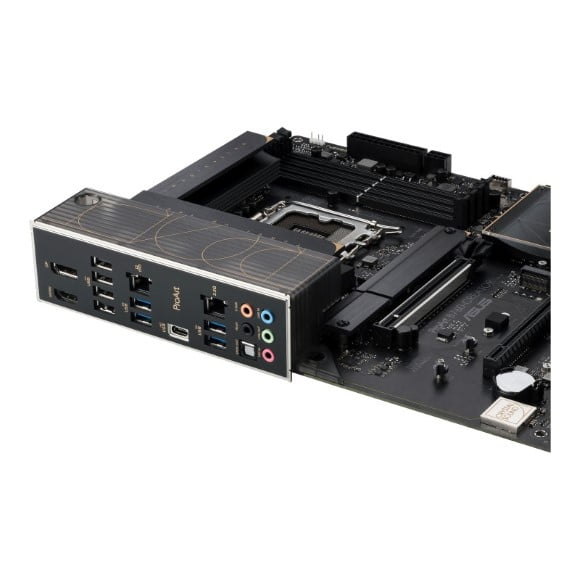

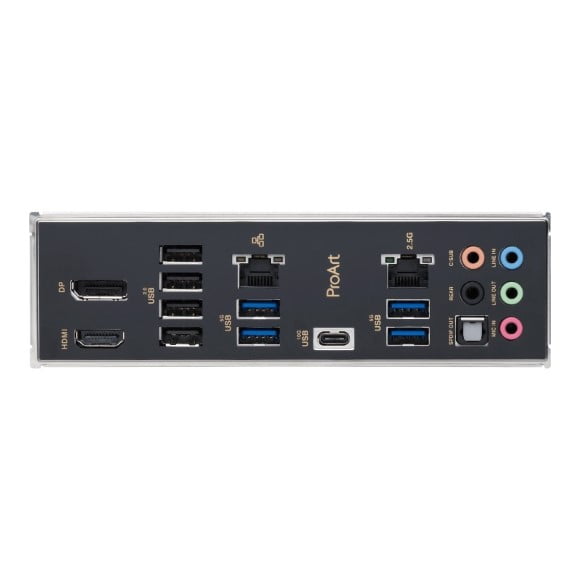

| 1 x USB 3.2 Gen 2 (10G) port (1 x USB Type-C®) |
| 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI® port |
| 1 x Realtek  2.5Gb Ethernet port |
| 1 x Intel® 1Gb Ethernet port |
| 5 x Audio jacks |
| 1 x Optical S/PDIF out port |
| |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 4 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector |
| 1 x 4-pin +12V Power connector |
| 1 x 6-pin PD_12V Power connector |
| Storage related |
| 3 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 2×2 (20G) connector (supports USB Type-C® with 60W PD/QC4+) |
| 1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x AURA RGB header |
| 1 x Clear CMOS header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (AAFP) |
| 1 x M.2 slot (Key E) |
| 1 x SPI TPM header (14-1pin) |
| 1 x 20-5 pin System Panel header |
| 1 x Thermal Sensor header |
| 1 x Thunderboltâ„¢ Â header |
| |
| – DIGI+ VRM (- Digital power design with DrMOS) |
| – Enhanced DRAM Overcurrent Protection |
| – ESD Guards |
| – LANGuard |
| – Overvoltage Protection |
| – SafeSlot |
| – Stainless-Steel Back I/O |
| ASUS Q-Design |
| – M.2 Q-Latch |
| – Q-Connector |
| – Q-DIMM |
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| – Q-Slot |
| ASUS Thermal Solution |
| – Flexible M.2 heatsink |
| – VRM heatsink design |
| ASUS EZ DIY |
| – ProCool |
| – Pre-mounted I/O shield |
| AURA Sync |
| – AURA RGB header |
| – Addressable Gen 2 headers |
| |
| Armoury Crate |
| – AURA Creator |
| – AURA Sync |
| – Fan Xpert 4 |
| – Power Saving |
| – Two-Way AI Noise Cancelation |
| AI Suite 3 |
| – Performance And Power Saving Utility |
| Â DIGI+ VRM |
| Â Turbo app |
| ASUS CPU-Z |
| IT Management software supported |
| – ASUS Control Center Express(ACCE) |
| ProArt Creator Hub |
| CreationFirst |
| Norton 360 Deluxe (60 Days Free Trial) |
| WinRAR |
| UEFI BIOS |
| ASUS EZ DIY |
| – ASUS CrashFree BIOS 3 |
| – ASUS EZ Flash 3 |
| – ASUS UEFI BIOS EZ Mode |
| |
| |
| |
| |
| 2 x SATA 6Gb/s cables |
| Miscellaneous |
| 2 x M.2 Rubber packages |
| 1 x Screw package for M.2 Key E |
| 1 x ProArt ruler |
| 1 x Q-connector |
| Documentation |
| 1 x ACC Express Activation Key Card |
| 1 x User guide |
| Windows® 11 64-bit, Windows® 10 64-bit |
| |
| |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
