ASUS PRIME Z790-P WIFI-CSM LGA 1700 (Intel 12th&13th 14th Gen) ATX Motherboard

74,000.00

Warranty: 2 Years

Payment Methods:

zahcomputers payment methods

Highlights

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
  • Supports Latest Intel 13th & 12th Gen
  • 4 x DIMM, DDR5 7200+(OC)
  • 14 + 1 Teamed Power Stages
  • USB 3.2 Gen 2×2 Type-C®

  • mappk We Deliver All Over Pakistan

We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

  • Zahcomputers.pk1200 ZAH Express – (SAME-DAY DELIVERY)

Place your order before 5 pm, and we will ensure same-day delivery within Karachi. This service is safe and reliable, providing you with a quick and efficient shipping experience.

  • leopard Leopards Courier

We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

  • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
  • Non-COD Parcel Delivery to Other Cities – Over Land: 4 to 5 days
  • Non-COD Parcel Delivery to Other Cities – Overnight *48 Hours:

Expedited delivery within 48 hours Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
At ZahComputers.pk, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

  • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
  • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
  • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
  • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
  • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

You can exchange any product purchased from ZahComputers.pk within 14 days of purchase under the following conditions:

  • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
  • The item(s) does not match the original specifications or is different from what you ordered.

To raise a dispute, please notify us within 3-4 days of delivery by contacting our support team via email at [email protected] or by calling 021-32277661 or 0325 7033554. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to [email protected] within 14 days of purchase to initiate the replacement process.

Returns:

If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

Refund Policy:

In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, ZahComputers.pk offers a refund policy. To initiate a refund, please contact our support team at [email protected] or call 021-32277661 or 0325 7033554 within the specified time frame.

ASUS PRIME Z790-P WIFI-CSM LGA 1700 (Intel 12th&13th 14th Gen) ATX Motherboard Price in Pakistan

Model

PRIME Z790-P WIFI-CSM

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
 * Refer to www.asus.com for CPU support list.
 ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

 Dual Channel Memory Architecture
 Supports Intel® Extreme Memory Profile (XMP)
 OptiMem II
 * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
 * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**

 1 x HDMI® port***
 *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
 ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
 *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)*

 1 x PCIe 5.0 x16 slot
 Intel® Z790 Chipset
 3 x PCIe 4.0 x16 slots (support x4 mode)
 1 x PCIe 3.0 x1 slot
 * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
 – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

 Intel® Core™ Processors (14th & 13th & 12th Gen)*
 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
 Intel® Z790 Chipset
 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
 M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
 4 x SATA 6Gb/s ports
 * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Wi-Fi 6

 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
 Supports 2.4/5GHz frequency band
 Bluetooth® v5.2

USB

Rear USB (Total 8 ports)

 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
 1 x USB 3.2 Gen 2 port (1 x Type-A)
 2 x USB 3.2 Gen 1 ports (2 x Type-A)
 4 x USB 2.0 ports (4 x Type-A)
 Front USB (Total 9 ports)
 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
 2 x USB 2.0 headers support 4 additional USB 2.0 ports
 * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
 * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Audio




Realtek 7.1 Surround Sound High Definition Audio CODEC*

 – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
 – Supports up to 24-Bit/192 kHz playback
 Audio Features
 – Audio Shielding
 – Premium audio capacitors
 – Dedicated audio PCB layers
 * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

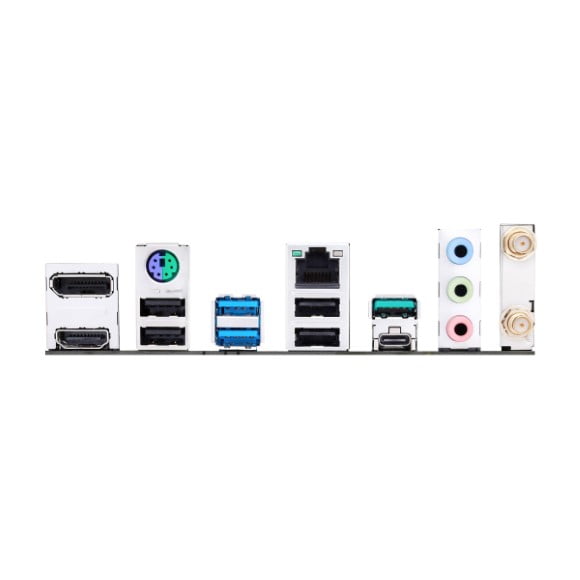

Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

 1 x USB 3.2 Gen 2 port (1 x Type-A)
 2 x USB 3.2 Gen 1 ports (2 x Type-A)
 4 x USB 2.0 ports (4 x Type-A)
 1 x DisplayPort
 1 x HDMI® port
 1 x Wi-Fi Module
 1 x Realtek 2.5Gb Ethernet port
 3 x Audio jacks
 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors



Fan and Cooling related

 1 x 4-pin CPU Fan header
 1 x 4-pin CPU OPT Fan header
 1 x 4-pin AIO Pump header
 3 x 4-pin Chassis Fan headers
 Power related
 1 x 24-pin Main Power connector
 1 x 8-pin +12V Power connector
 1 x 4-pin +12V Power connector
 Storage related
 3 x M.2 slots (Key M)
 4 x SATA 6Gb/s ports
 USB
 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
 2 x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports
 2 x USB 2.0 headers support 4 additional USB 2.0 ports
 Miscellaneous
 3 x Addressable Gen 2 headers
 2 x Aura RGB headers
 1 x Clear CMOS header
 1 x COM Port header
 1 x Front Panel Audio header (AAFP)
 1 x S/PDIF Out header
 1 x SPI TPM header (14-1pin)
 1 x 20-5pin System Panel header
 1 x Thunderbolt™ (USB4®) Header

Special Features

ASUS 5X PROTECTION III

 – DIGI+ VRM (- Digital power design with DrMOS)
 – LANGuard
 – Overvoltage Protection
 – SafeSlot Core+
 – Stainless-Steel Back I/O
 ASUS Q-Design
 – Q-DIMM
 – Q-Slot
 – Q-LED Core
 ASUS Thermal Solution
 – Flexible M.2 heatsink
 – VRM heatsink design
 ASUS EZ DIY
 – ProCool
 Aura Sync
 – Aura RGB headers
 – Addressable Gen 2 headers

Software Features



ASUS Exclusive Software

 Armoury Crate
 – Aura Sync
 – Fan Xpert 4 (with AI Cooling II)
 – Power Saving
 AI Suite 3
 -TurboV EVO
 -PC Cleaner
 -DIGI+ VRM
 ASUS CPU-Z
 MyASUS
 Norton 360 Deluxe (60 Days Free Trial)
 WinRAR
 UEFI BIOS
 ASUS EZ DIY
 – ASUS CrashFree BIOS 3
 – ASUS EZ Flash 3
 – ASUS UEFI BIOS EZ Mode

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

 2 x SATA 6Gb/s cables
 Miscellaneous
 1 x ASUS Wi-Fi moving antennas
 1 x I/O Shield
 1 x M.2 Rubber Package
 2 x Screw packages for M.2 SSD
 Documentation
 1 x ACC Express Activation Key Card
 1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor

 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
