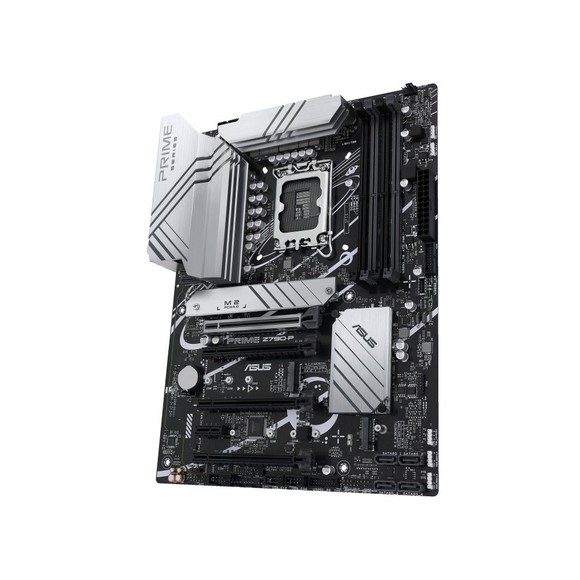

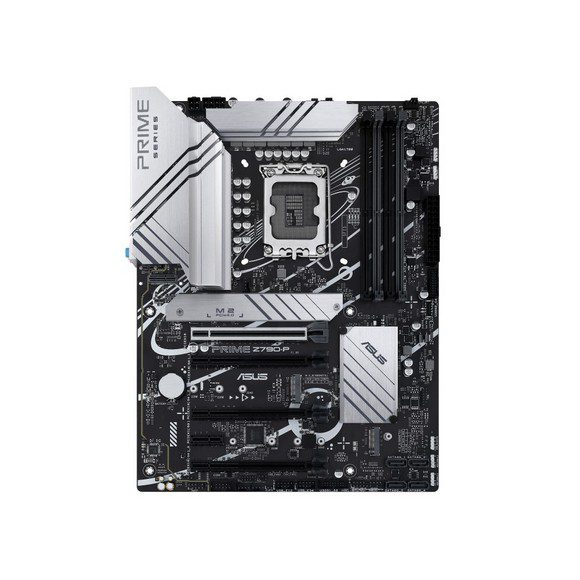

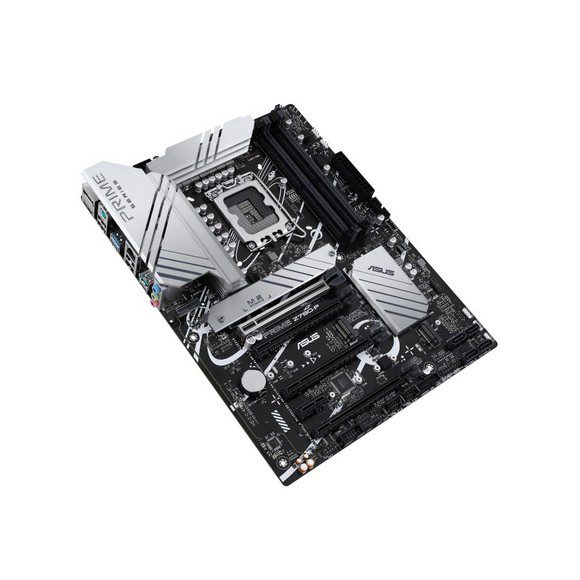

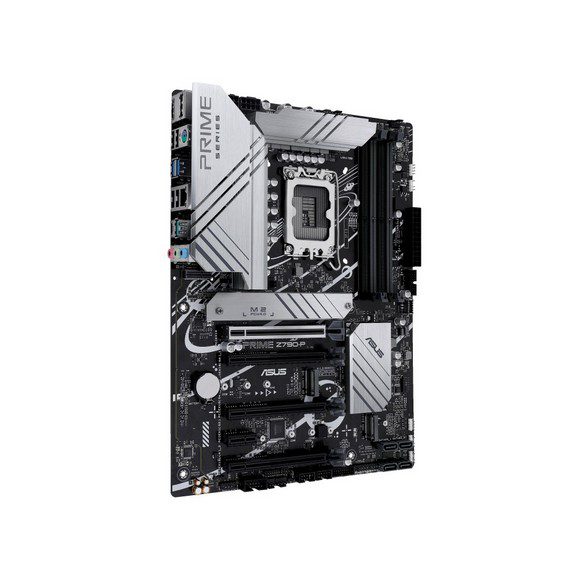

ASUS PRIME Z790-P-CSM 13th Gen LGA 1700 Motherboard Price in Pakistan
CPU
Chipset |
Intel Z790 |
CPU Socket |
LGA 1700 |

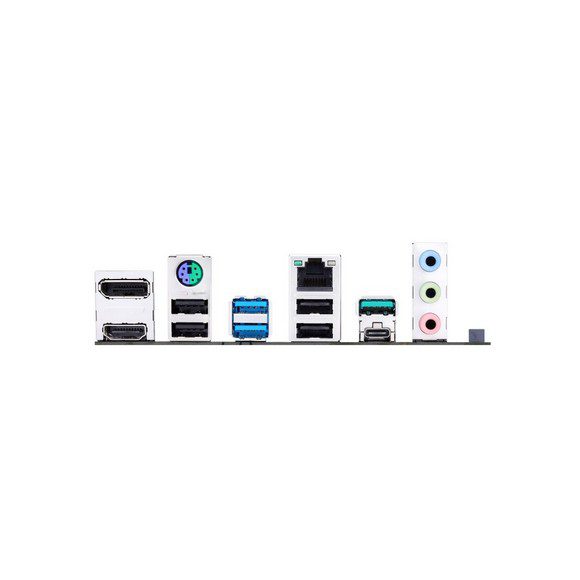

Back Panel I/O
USB |
1 x USB-C (USB 3.2 Gen 2×2) 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 2.0) |
Thunderbolt |
None |
Display |
1 x DisplayPort 1 x HDMI |
Audio |
3 x 1/8″ / 3.5 mm |
Ethernet / Controller |
1 x Realtek 2.5Gigabit |
PS/2 |
1 x Combo |
Wi-Fi Antenna |
2 x Connector |
Memory
Memory Slots |
4 x 288-Pin |
Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MHz |
Maximum Capacity |
128 GB |
Channel Architecture |
Dual Channel |
ECC Support |
Non-ECC Unbuffered |
Storage Expansion
SATA |
4 x SATA III |
M.2 |
2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) |
Optane Memory Support |
No |
RAID Support |
RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2) |
Internal I/O
Expansion Slots |
1 x PCIe 5.0 x16 3 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
USB |
1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) |
Air Cooling |
2 x 4-Pin CPU 3 x 4-Pin System |
Liquid Cooling |
1 x 4-Pin Pump |
Power Connectors |
1 x 24-Pin Mainboard 1 x 8-Pin CPU 1 x 4-Pin CPU |
Security |
TPM Header |
LED Header |
4 x RGB |
Audio |
1 x S/PDIF |
Diagnostics |
Clear CMOS |
Add-On |
1 x Thunderbolt Header |
Legacy |
1 x Serial |
Front Panel I/O
Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2 |
Audio
Audio Codec |
Realtek S1220A (7.1-Channel) |
Wireless
Bluetooth |
5.2 |
Wi-Fi |
Wi-Fi 6 (802.11ax) with MU-MIMO Support |
Software
OS Compatibility |
Windows 10 Windows 11 *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
Physical
Form Factor |
ATX |
Dimensions |
12.0 x 9.2″ / 30.5 x 23.4 cm |
Packaging Info
Package Weight |
3.665 lb |
Box Dimensions (LxWxH) |
13.4 x 10.7 x 2.8″ |
