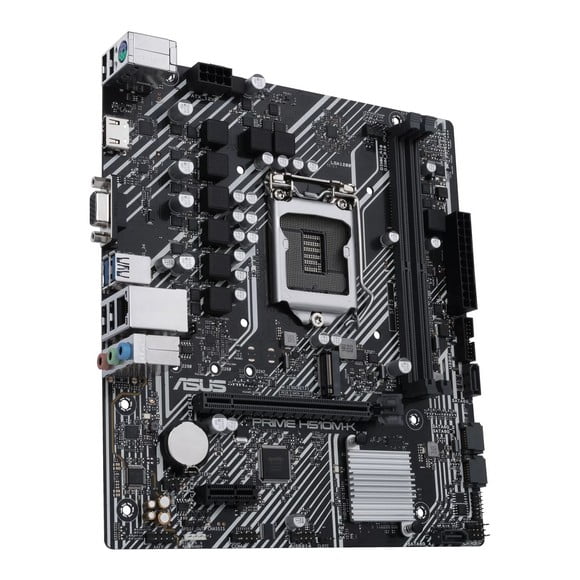

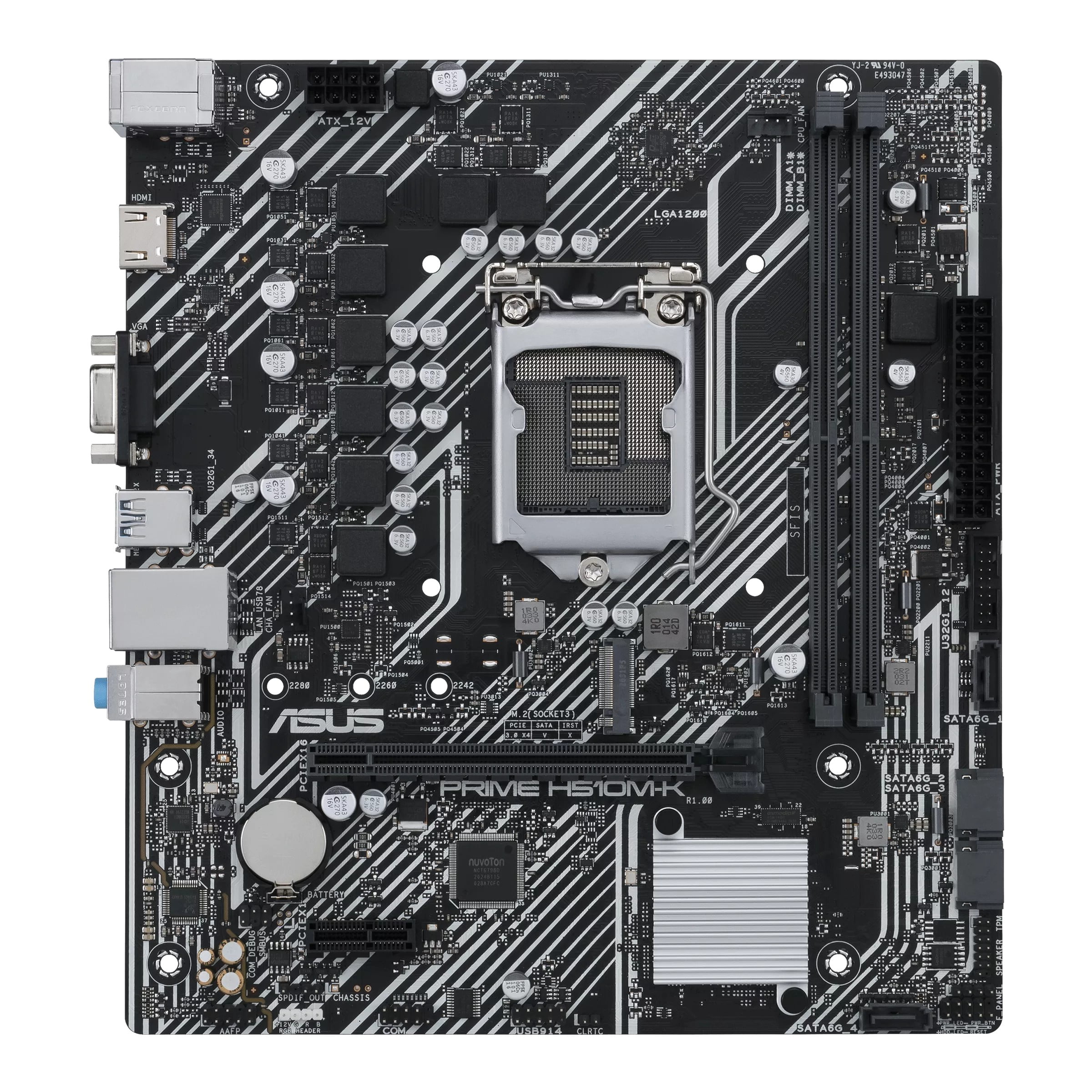

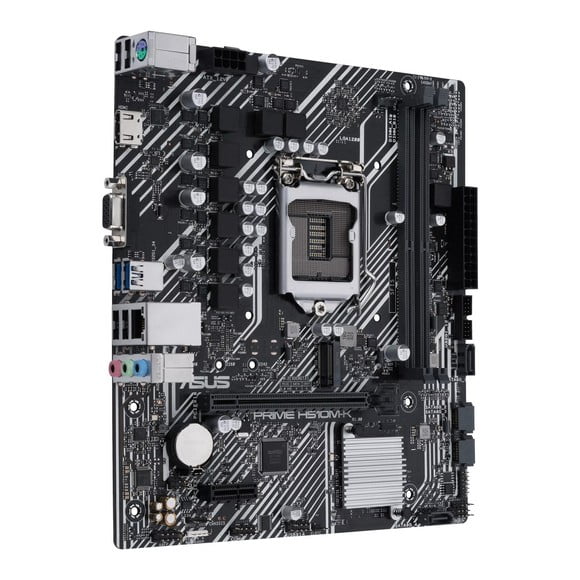

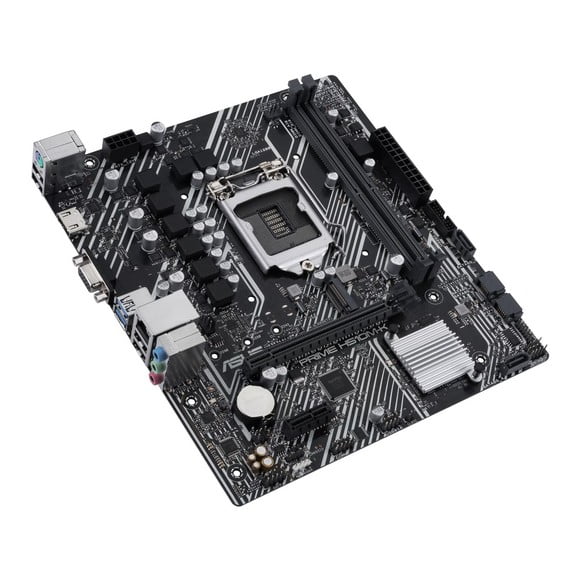

ASUS Prime H510M-K (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header Price in Pakistan Specs
| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H510 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX: 22.6cm x 20.3cm | |
| Expansion Slots | ||
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot – Intel 11th Gen processors support PCIe 4.0 x16 – Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memork Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | 1 x D-Sub 1 x HDMI 1.4 / 2.0 |
|

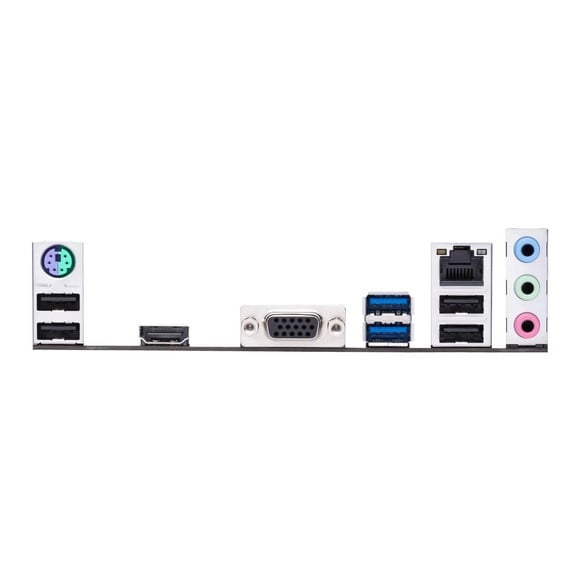

| Connector & Ports | ||
| HDMI | 1 x HDMI 1.4 | |
| D-Sub (s) | 1 x D-Sub | |
| USB (s) | Rear USB: Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet
ASUS LANGuard |
|
| Supported Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | ALC887/ 897 Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Dedicated audio PCB layers |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS Lighting Control – RGB header |
|
