Asus Prime H610M-K D4 Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header Price in Pakistan Specs
CPU
CPU Socket | Socket 1700 |
CPU Brand | Intel |
Installed Processors (Max) | 0 (1) |
Supported Processor Manufacturer | Intel |
Supported Processors | 12th Gen Intel Core, Pentium Gold and Celeron Processors |
64-bit Support | Yes |
Socket | LGA1700 |

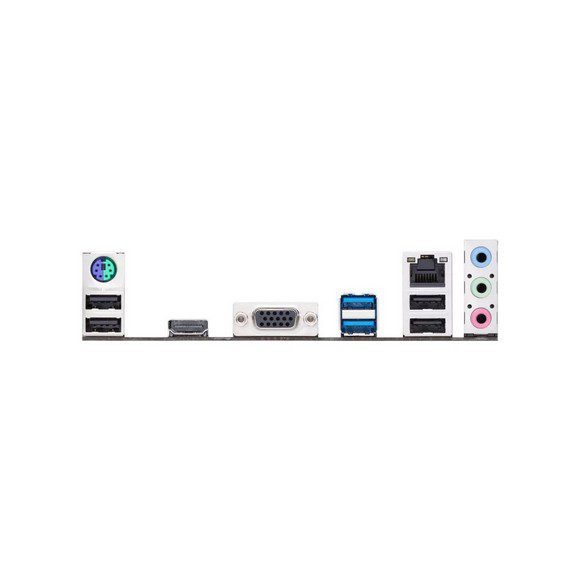

Rear Panel I/O Ports
USB Ports | 2 x USB 3.0 4 x USB 2.0 |
HDMI Port | 1 x HDMI 2.1 |
VGA Port | 1 x D-Sub |
Keyboard/Mouse Combo Port | 1 x PS/2 |
RJ-45 Ports | 1 x RJ-45 |
Audio Line In Ports | 1 x 3.5mm Jack |
Audio Line Out Ports | 1 x 3.5mm Jack |
Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
SATA Connectors | 4 x SATA III |
USB Connectors | 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) |
Speaker | 1 x Speaker header |
Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
Cooling Fan Support | 1 x CPU fan header 1 x Chassis fan header |
S/PDIF Connectors | 1 x S/PDIF Out header |
Serial Connectors | 1 x COM header |
TPM Header | 1 x SPI TPM header |
Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
Other Connectors | 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA) 1 x 4-pin RGB LED header |
Memory
Memory Bus Speed | Up to 3200 MHz |
Memory Type | DDR4 |
Maximum RAM | 64 GB |
Memory Slot | 2 x DIMM |
Motherboard
Chipset Manufacturer | Intel |
Northbridge | H610 |
RAID Supported | No |
SATA Supported | Yes |
Expansion
Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x1 slot |
Graphics Device
Integrated Graphics Supported | Yes |
Sound
Integrated Sound | Realtek |
Warranty
Warranty | 3 Years |
Network
Integrated Network | Realtek |
Network Speeds Supported | Up to 1 Gbps |
Wireless LAN | No |
Bluetooth | No |
System Requirements
Operating Systems Supported | Microsoft Windows 11 / 10 64-bit |
System
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Software Included (may be trial or restricted) | Yes |
Drivers | Yes |
Physical
Form Factor | MicroATX Motherboard |

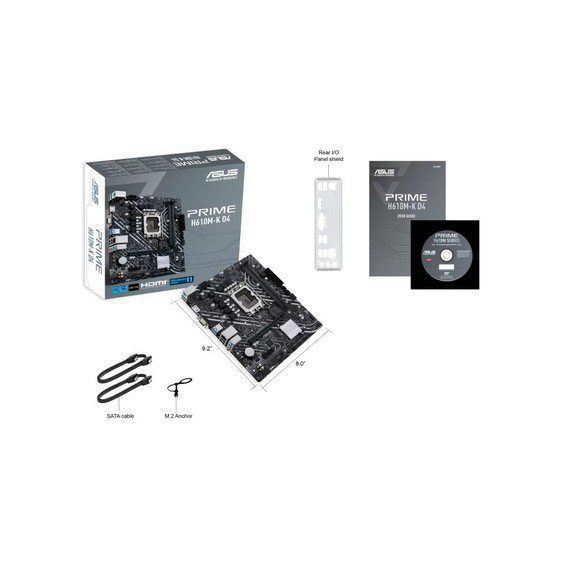

In The Box | ASUS Prime H610M-K D4 Motherboard 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 ANCHOR 1 x Support DVD 1 x User Guide |
Width | 234 mm |
Length | 203 mm |
Key Features
Firewire | No |
Wireless Network | No |
Memory Channel | Dual |
On-board Audio Type | 7.1 |
Number of SATA Ports | 4 port(s) |
Number of USB Ports | 6 port(s) |
SATA III Support | Yes |
USB 3.0 Support | Yes |
Multi GPU Support | No |
VGA Connection | Yes |
DVI Connection | No |
HDMI Connection | Yes |
DisplayPort Connection | No |
Motherboard Form Factor | mATX |
Motherboard Power Connectors | 8-Pin |
Motherboard Chipset | Intel H610 |
Thunderbolt | No |
Motherboard Model | ASUS Prime H610M-K D4 |
USB 3.1 Support | No |
Internal USB3.0 Header | Yes |
M.2 Support | Yes |
On-board RGB Control | ASUS Aura Sync |
Memory Speed | 3200 MHz |
RGB Header Type | 4-Pin RGB |
Addressable RGB | No |
