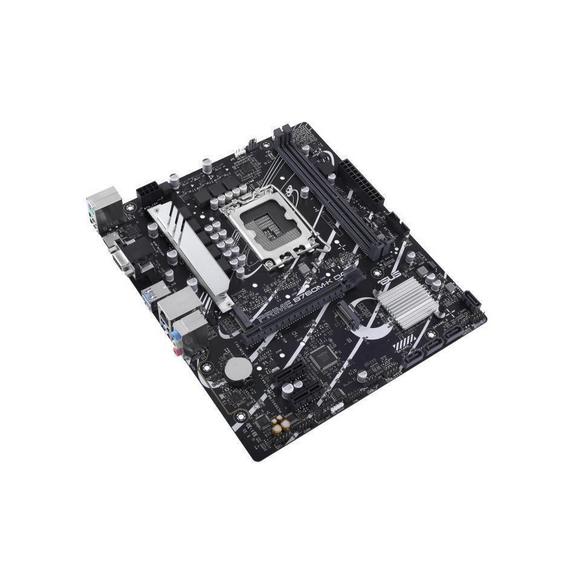

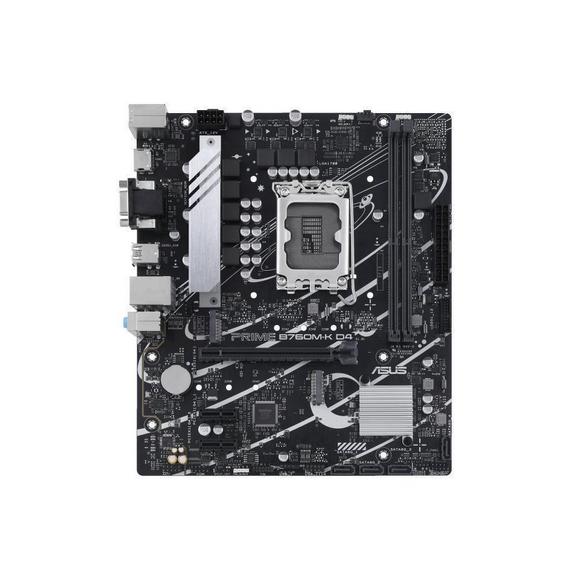

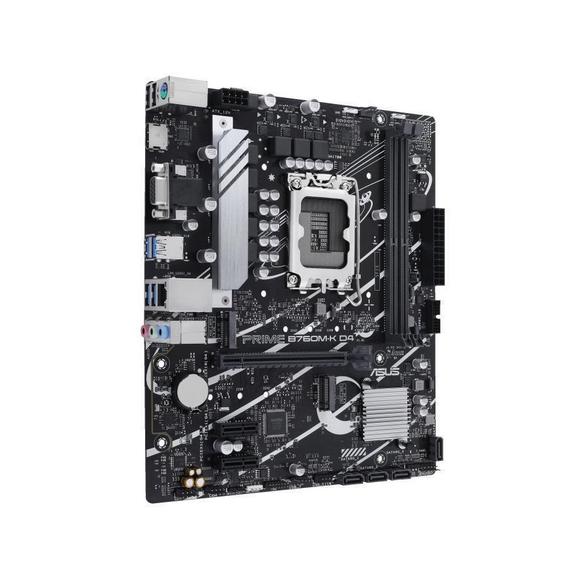

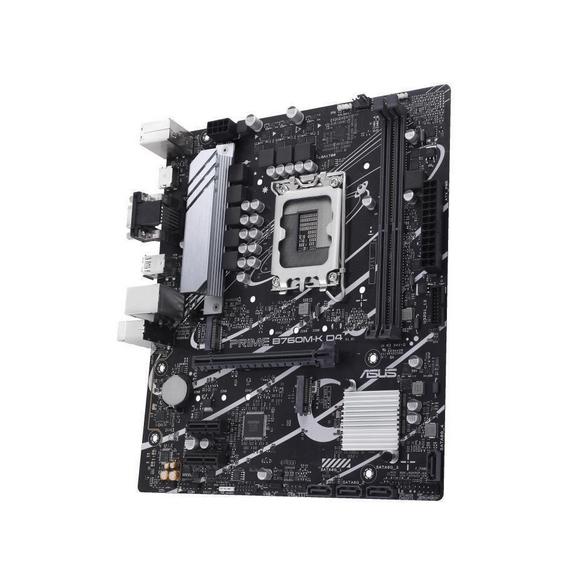

ASUS Prime B760M-K D4, LGA 1700 mATX Motherboard

₨44,500.00

Prime B760M-K D4, LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
  • ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Dear Visitor, All previous Prices & Quotes are Null n Void due to continuous rise of US Dollar.
Description

ASUS Prime B760M-K D4, LGA 1700 mATX Motherboard Price in Pakistan

Model
Brand ASUS
Model PRIME B760M-K D4
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset  Intel B760
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 3200
Maximum Memory Supported 64GB
Channel Supported  Dual Channel
Memory Feature DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Supports Intel Extreme Memory Profile (XMP)
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16
PCI Express x1 2 x PCI Express 4.0 x1
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 2.5Gbps
Rear Panel Ports
Back I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6″ x 8.3″
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features
Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS EZ DIY
– ProCool
ASUS Thermal Solution
– VRM heatsink design
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Packaging
Package Contents Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O Shield
2 x M.2 anchors

Documentation
1 x User guide
