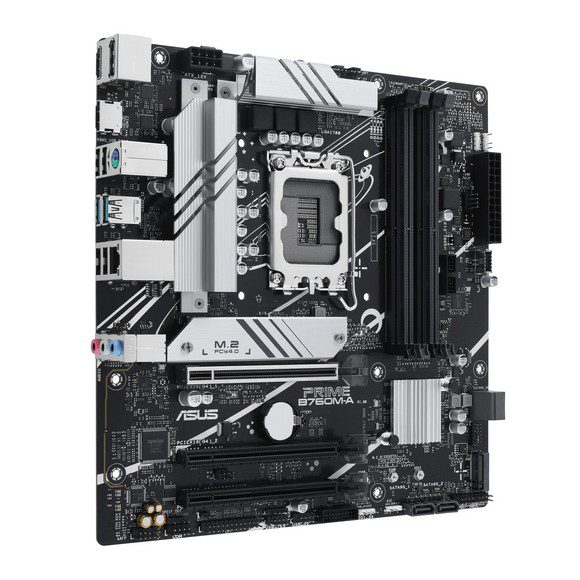

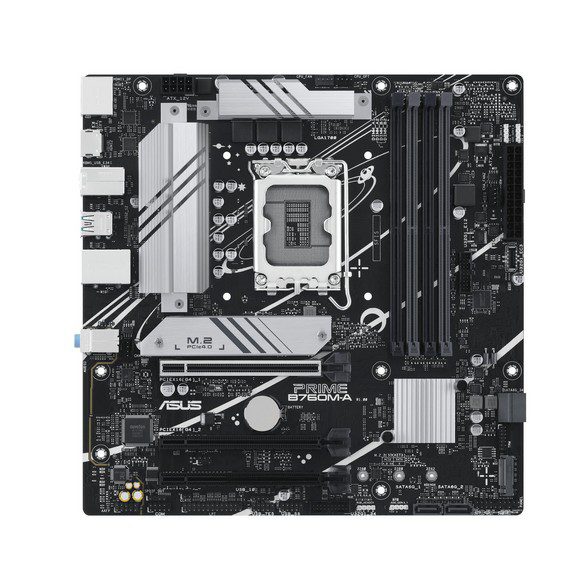

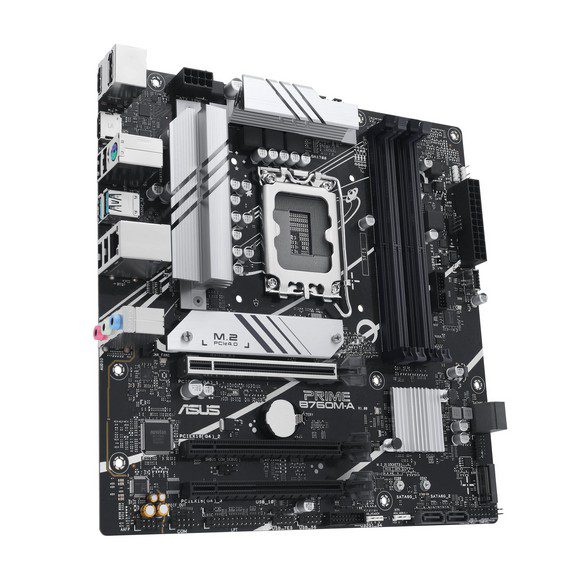

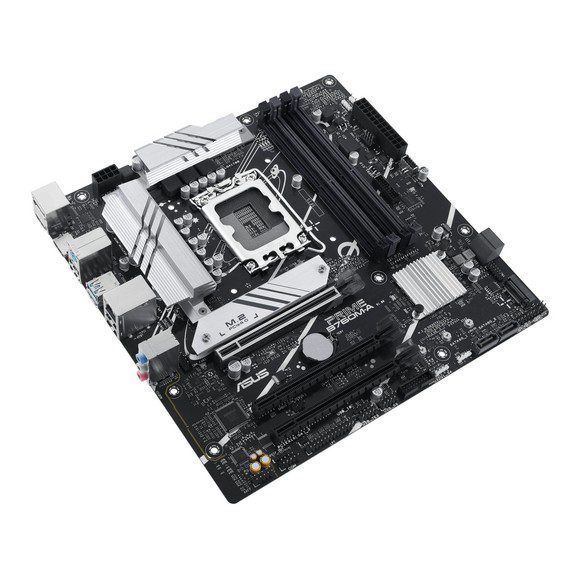

ASUS PRIME B760M-A LGA 1700 Micro-ATX Motherboard

₨47,500.00

Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Dear Visitor, All previous Prices & Quotes are Null n Void due to continuous rise of US Dollar.
Description

ASUS PRIME B760M-A LGA 1700 Micro-ATX Motherboard Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura SyncPrice in Pakistan

CPU
Chipset Intel B760
CPU Socket LGA 1700

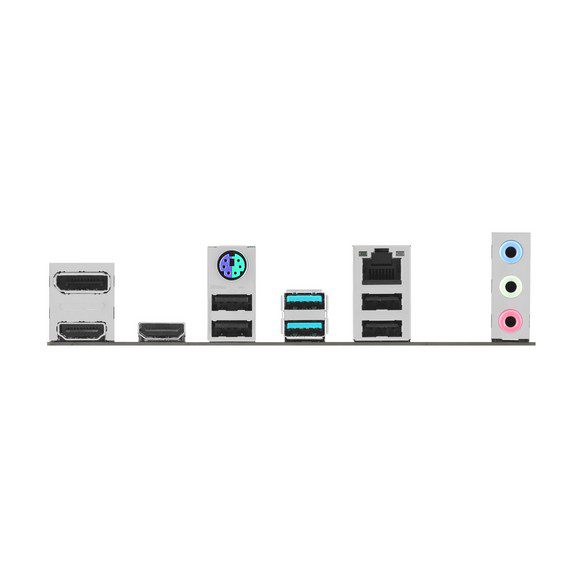

Back Panel I/O
USB 2 x USB-A (USB 3.1/3.2 Gen 2)
4 x USB-A (USB 2.0)
Thunderbolt None
Display 1 x DisplayPort 1.4 Output
2 x HDMI 2.1 Output
Audio 3 x 1/8″ / 3.5 mm
Ethernet / Controller 1 x Realtek 2.5Gigabit
PS/2 1 x Combo
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
SATA 4 x SATA III
M.2 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
RAID Support RAID 0, 1, 5, 10 (SATA)
Internal I/O
Expansion Slots 1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x16 (x1 mode)
USB 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2 x 2.0 Header (Supports 4 USB-A Port)
1 x 2.0 Header (Supports 1 USB-A Port)
Air Cooling 1 x 4-Pin CPU
2 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security Chassis Intrusion, TPM Header
LED Header 4 x RGB
Audio 1 x S/PDIF
Diagnostics Clear CMOS
Audio
Audio Codec Realtek (7.1-Channel)
DAC None
Wireless
Bluetooth None
Software
OS Compatibility Windows 10 to 11 (64-Bit Only)
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Physical
Form Factor Micro-ATX
Dimensions 9.6 x 9.6″ / 24.4 x 24.4 cm
Packaging Info
Package Weight 2.36 lb
Box Dimensions (LxWxH) 10.5 x 10.4 x 2″
